Installation

WIPER AND WASHER: FRONT WIPER MOTOR AND LINK: INSTALLATION

INSTALLATION

1. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY





(a) Install the windshield wiper motor to the windshield wiper link with the 3 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)





(b) Install the crank arm with the washer and nut.
(c) Align the matchmarks on the crank arm and windshield wiper motor, then install the crank arm with the washer and nut (when reinstalling).
Torque: 17 Nm (175 kgf-cm, 13 ft-lbf)
(d) Apply MP grease to the crank arm pivot of the windshield wiper motor and install the windshield wiper link arm.
2. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY





(a) Install the windshield wiper motor & link with the 5 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
3. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

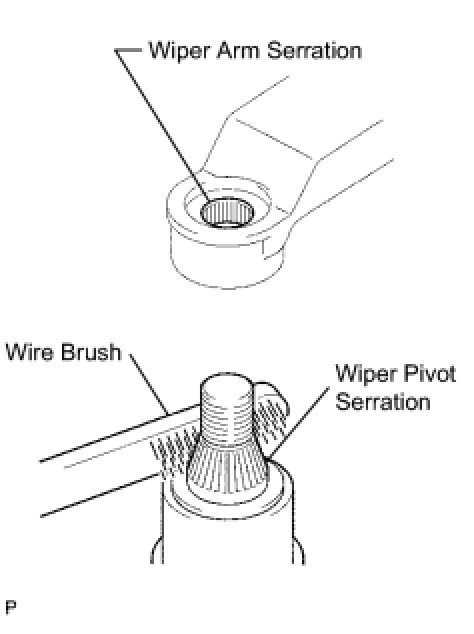

(a) Clean the wiper arm serration with a round file or equivalent (when reinstalling).
(b) Clean the wiper pivot serration with a wire brush.

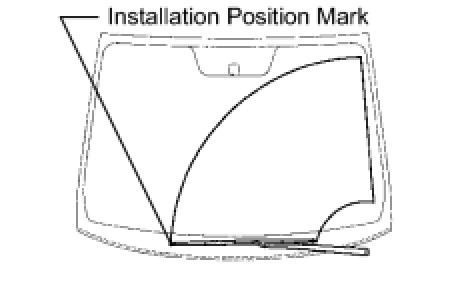

(c) Install the front wiper arm LH with the nut so that the front wiper blade comes to the position shown in the illustration.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT: While installing the nut, hold down the arm hinge by hand.

4. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH





(a) Clean the wiper arm serration with a round file or equivalent (when reinstalling).
(b) Clean the wiper pivot serration with a wire brush.

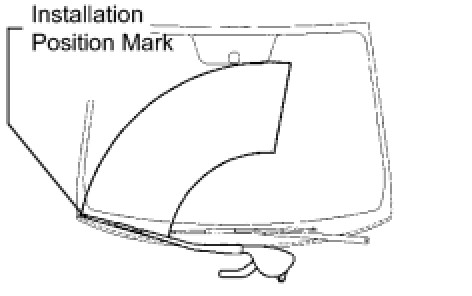

(c) Install the front wiper arm RH with the 2 nuts so that the front wiper blade comes to the position shown in the illustration.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT: While installing the nut, hold down the arm hinge by hand.

(d) Operate the front wipers while spraying water or washer fluid on the windshield glass. Ensure that the wipers function properly and there is no interference with the body.





5. INSTALL COWL TOP VENTILATOR LOUVER RH
(a) Attach the 8 claws and install the louver.
(b) Install the clip.





6. INSTALL COWL TOP VENTILATOR LOUVER LH
(a) Attach the 8 claws and install the louver.
(b) Install the clip.





7. INSTALL HOOD TO COWL TOP SEAL
(a) Attach the 8 clips and install the cowl to seal.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
