Rear Wiper Motor

WIPER AND WASHER: REAR WIPER MOTOR: INSPECTION

INSPECTION

1. INSPECT REAR WIPER MOTOR ASSEMBLY
(a) Operation Check

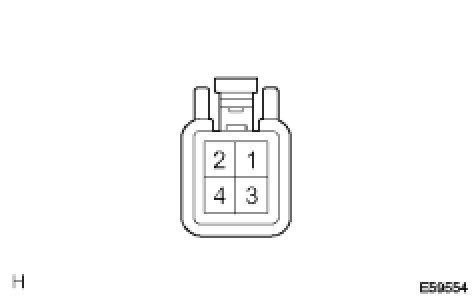

(1) Connect the positive battery (+) lead to terminal 3 (+1), and the negative battery (-) lead to terminal 2 (-), and check that the rear wiper motor operates.
OK:
The rear wiper motor operates.
