P0102








1AR-FE ENGINE CONTROL: SFI SYSTEM: P0102,P0103: Mass or Volume Air Flow Circuit Low Input

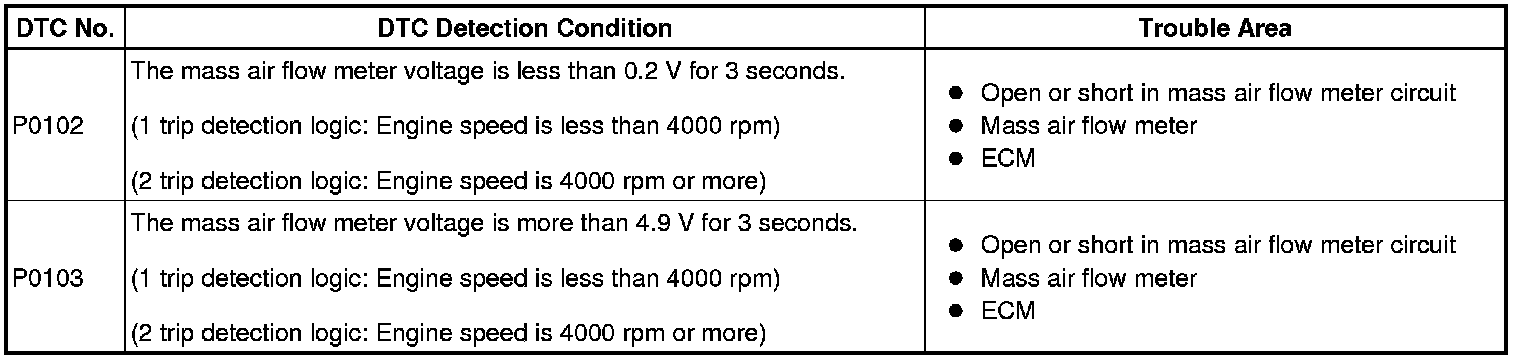

DTC P0102 - Mass or Volume Air Flow Circuit Low Input

DTC P0103 - Mass or Volume Air Flow Circuit High Input

DESCRIPTION

The mass air flow meter is a sensor that measures the amount of air flowing through the throttle valve. The ECM uses this information to determine the fuel injection time and to provide the appropriate air-fuel ratio.
Inside the mass air flow meter, there is a heated platinum wire which is exposed to the flow of intake air. By applying a specific electrical current to the wire, the ECM heats it to a given temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to the wire and internal thermistor. The voltage level is proportional to the airflow through the sensor, and the ECM uses it to calculate the intake air volume.

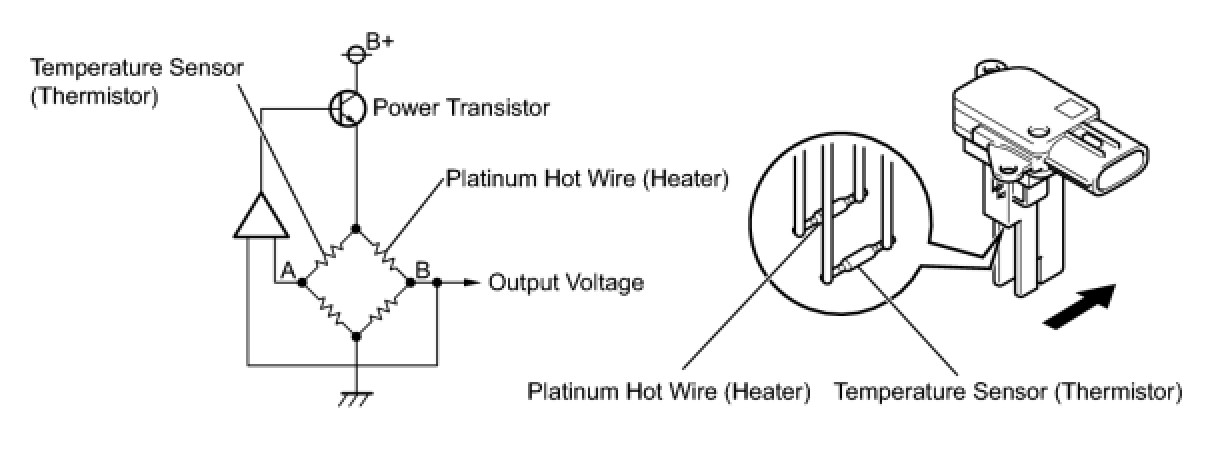

The circuit is constructed so that the platinum hot wire and the temperature sensor create a bridge circuit, and the power transistor is controlled so that the potentials of A and B remain equal to maintain the predetermined temperature.
HINT: When any of these DTCs is stored, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is calculated by the ECM, according to the engine speed and throttle valve position. Fail-safe mode continues until a pass condition is detected.

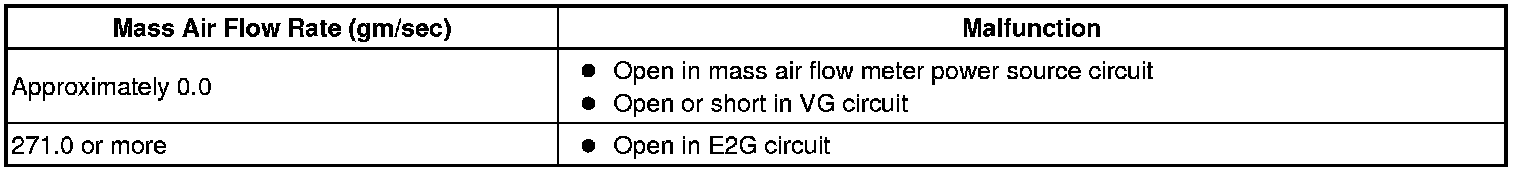

HINT: When any of these DTCs are output, check the air-flow rate using the Techstream. Enter the following menus: Powertrain / Engine / Data List / All Data / MAF.





MONITOR DESCRIPTION

If there is a defect in the mass air flow meter or an open or short circuit, the voltage level deviates from the normal operating range. The ECM interprets this deviation as a malfunction in the mass air flow meter circuit and stores a DTC.
Example:
When the sensor output voltage remains below 0.2 V or higher than 4.9 V for more than 3 seconds, the ECM stores a DTC.
If the malfunction is not repaired successfully, a DTC is stored 3 seconds after the engine is next started.

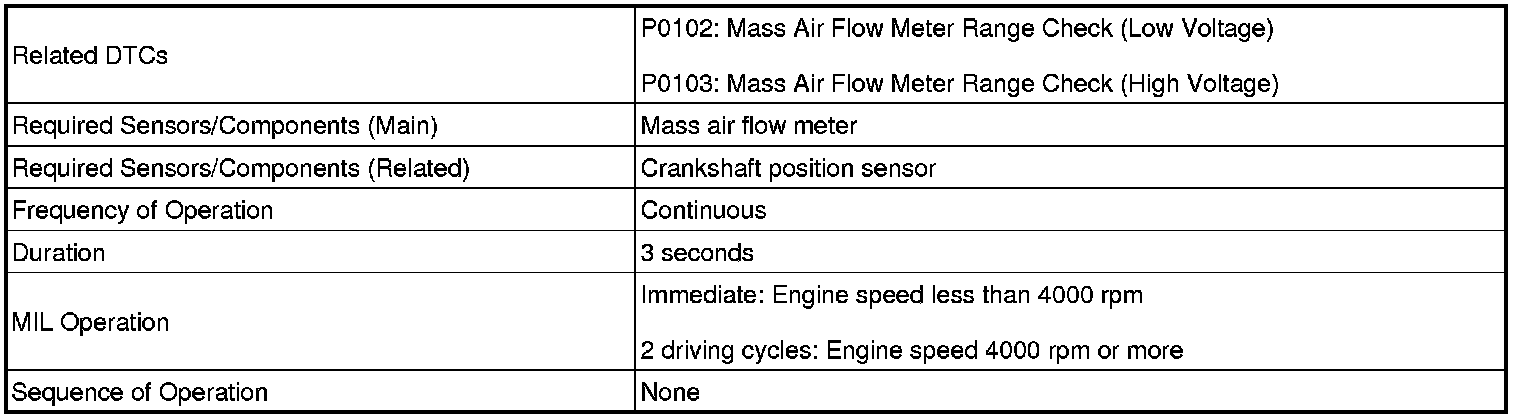

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

P0102





P0103





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the ignition switch off.
5. Turn the ignition switch to ON and turn the Techstream on [A].
6. Start the engine.
7. Idle the engine for 5 seconds [B].

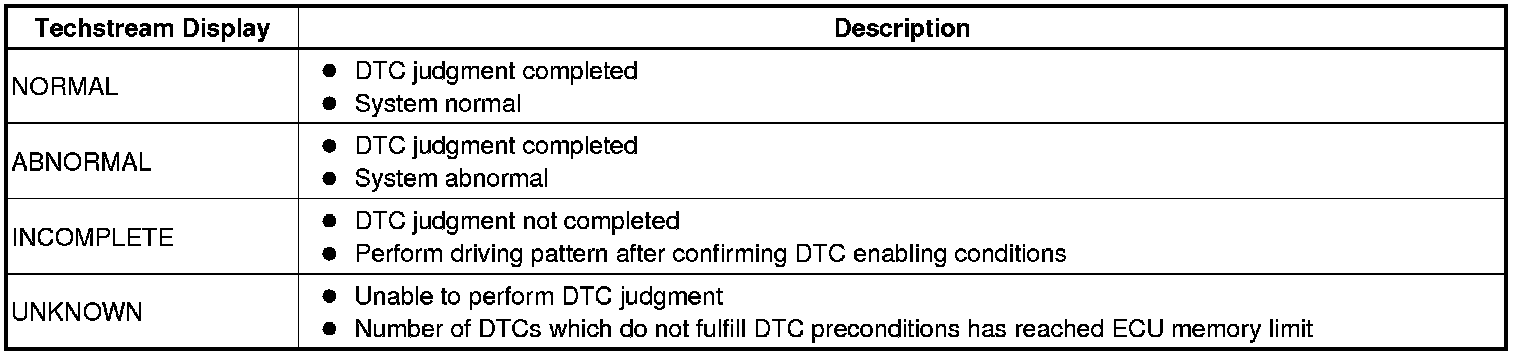

8. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
9. Input the DTC: P0102 or P0103.
10. Check the DTC judgment result [C].





HINT: If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.

11. If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
12. Read Pending DTCs.
HINT: If a pending DTC is output, the system is malfunctioning.

13. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

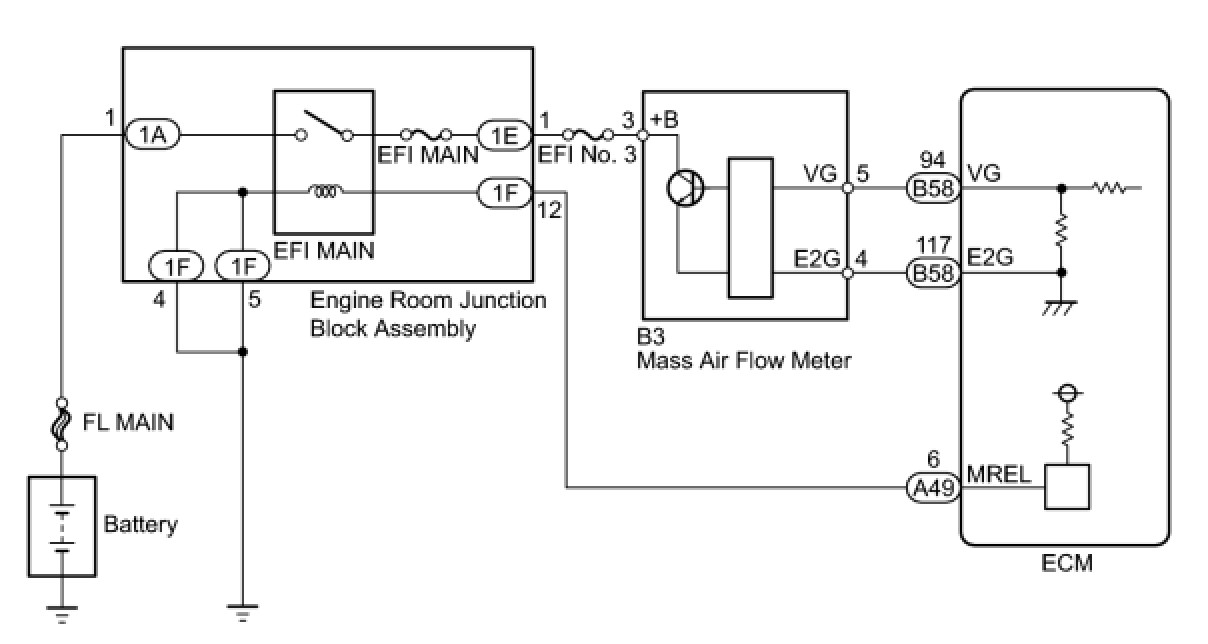

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE: Inspect the fuses for circuits related to this system before performing the following inspection procedure.
HINT: Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. READ DTC OUTPUT
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Wait 30 seconds, and read the DTCs.

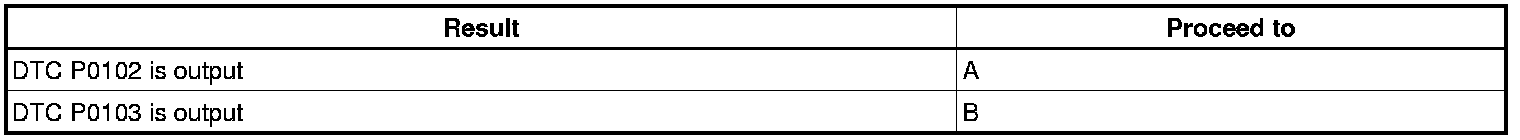

Result:





B -- CHECK HARNESS AND CONNECTOR (SENSOR GROUND)
A -- Continue to next step.

2. INSPECT MASS AIR FLOW METER (POWER SOURCE VOLTAGE)




(a) Disconnect the mass air flow meter connector.
(b) Turn the ignition switch to ON.
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

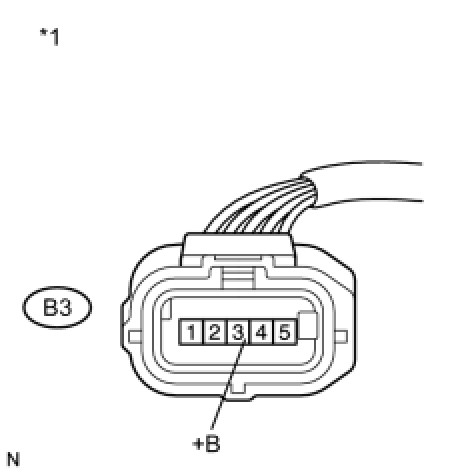

Text in Illustration





(d) Reconnect the mass air flow meter connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI MAIN RELAY - MASS AIR FLOW METER)
OK -- Continue to next step.

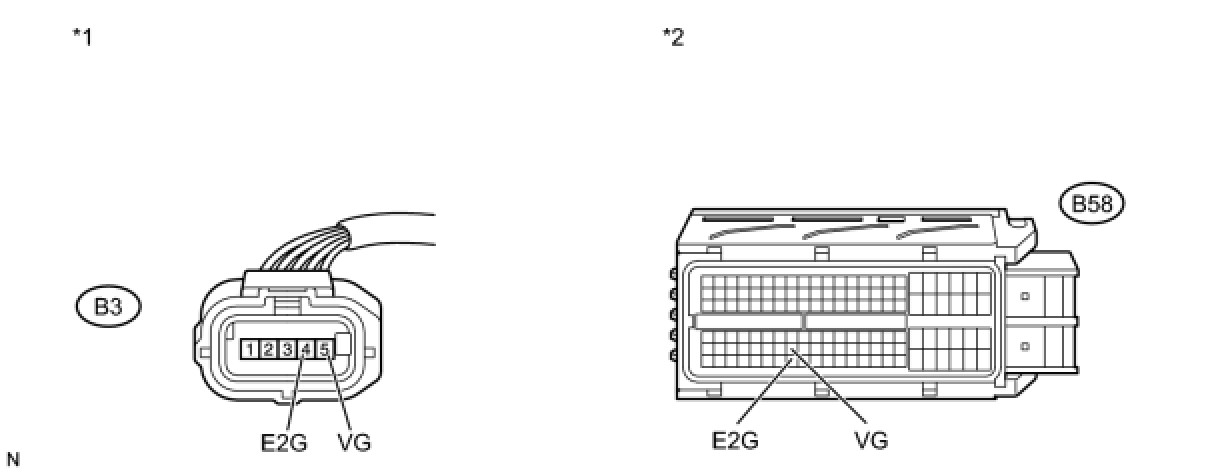

3. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
(a) Disconnect the mass air flow meter connector.




(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):





Standard Resistance (Check for Short):

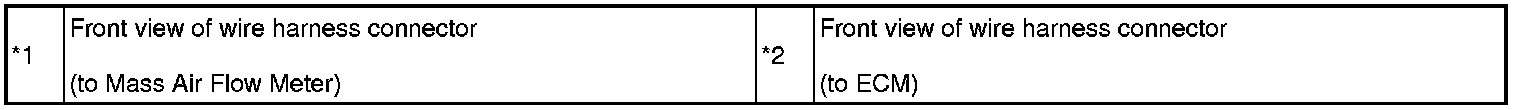

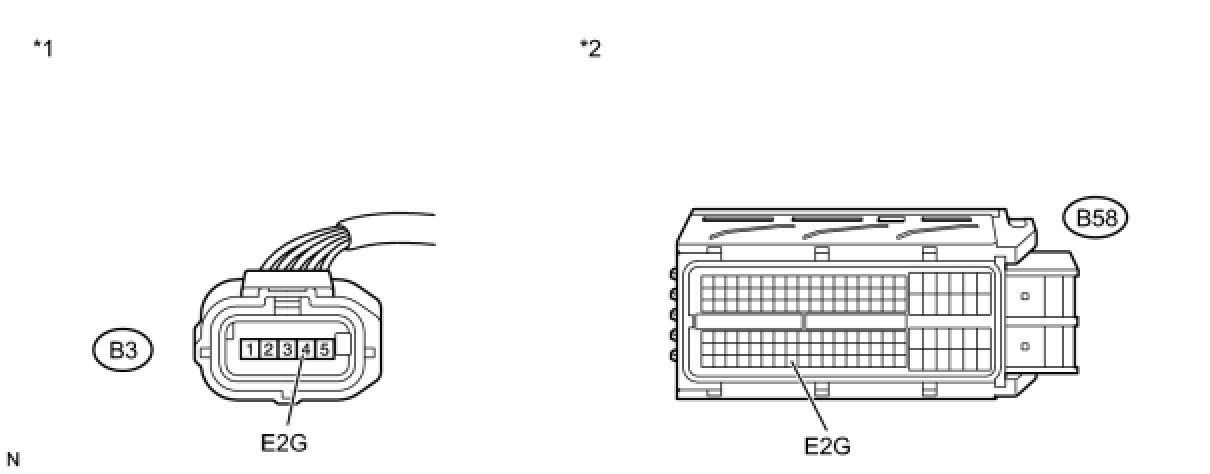

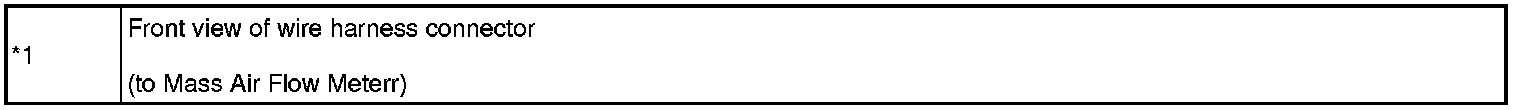

Text in Illustration





(d) Reconnect the mass air flow meter connector.
(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT MASS AIR FLOW METER




(a) Perform On-vehicle Inspection On-Vehicle Inspection.
(b) Perform Inspection Inspection.
(c) Inspect the function of the mass air flow meter.
(1) Remove the mass air flow meter with the connector connected.
(2) Connect the Techstream to the DLC3.
(3) Turn the ignition switch to ON.
(4) Turn the Techstream on.
(5) Enter the following menus: Powertrain / Engine / Data List / All Data / MAF.
(6) Blow air to the mass air flow meter and check that the intake air amount reading changes.
OK:
The reading changes.

NG -- REPLACE MASS AIR FLOW METER
OK -- REPLACE ECM
5. CHECK HARNESS AND CONNECTOR (SENSOR GROUND)




(a) Disconnect the mass air flow meter connector.
(b) Measure the resistance according to the value(s) in the table below.

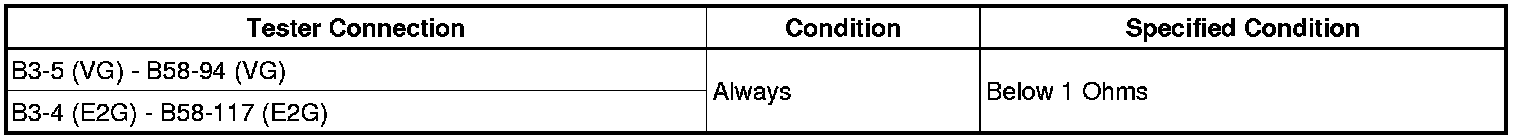

Standard Resistance (Check for Open):

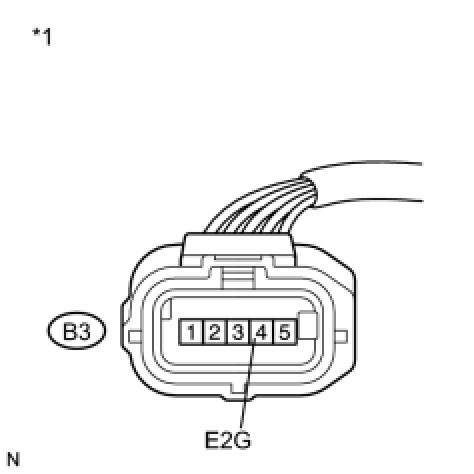

Text in Illustration





(c) Reconnect the mass air flow meter connector.

NG -- CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
OK -- REPLACE MASS AIR FLOW METER
6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
(a) Disconnect the mass air flow meter connector.




(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):





Text in Illustration





(d) Reconnect the mass air flow meter connector.
(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
