AUDIO / VIDEO: REAR DOOR SPEAKER: INSTALLATION

INSTALLATION

1. INSTALL REAR NO. 2 SPEAKER ASSEMBLY (for 13 Speakers)





(a) Install the rear No. 2 speaker assembly with the 2 screws.
(b) Engage the clamp.
2. INSTALL REAR SPEAKER BRACKET (for 13 Speakers)





(a) Install the rear speaker bracket and rear door speaker grille sub-assembly with the 8 screws.

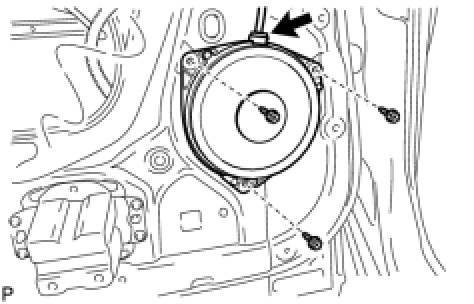

3. INSTALL REAR SPEAKER ASSEMBLY





(a) Install the rear speaker assembly with the 3 bolts.
(b) Connect the connector.
4. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP Reassembly
5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL Reassembly
7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG Reassembly
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
