Disassembly

DOOR / HATCH: POWER BACK DOOR DRIVE UNIT: DISASSEMBLY

DISASSEMBLY
NOTICE: When disassembling the multiplex network door ECU, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

1. REMOVE MULTIPLEX NETWORK DOOR ECU





(a) Disengage the 4 claws and remove the cover.

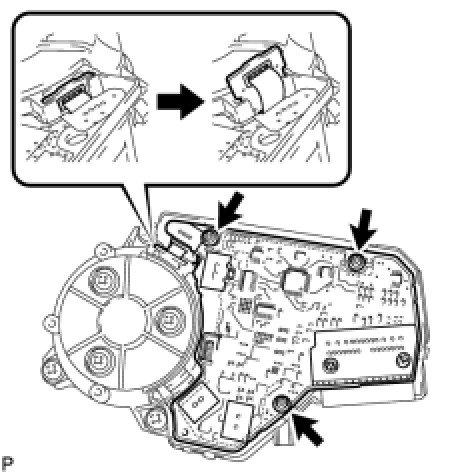

(b) Remove the 3 screws.
(c) Remove the flat cable connector as shown in the illustration.





(d) Disconnect the connector and remove the multiplex network door ECU.
