Installation

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX: INSTALLATION

INSTALLATION

1. INSTALL CONSOLE BOX ASSEMBLY

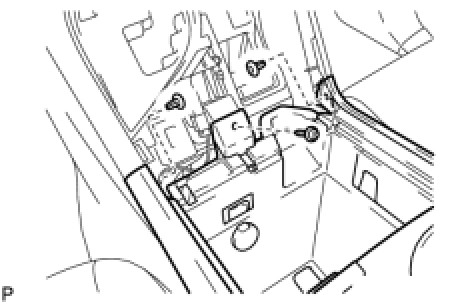

(a) Connect the connectors.

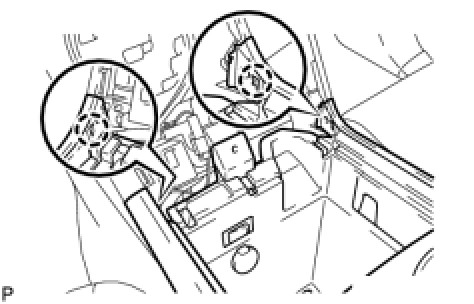

(b) Engage the 2 claws.





(c) Install the screw and 2 clips.

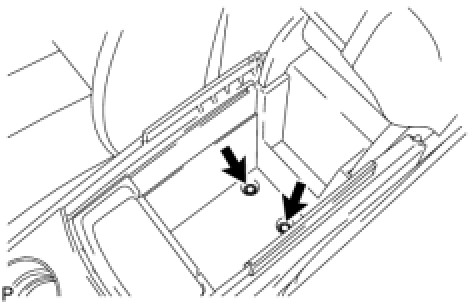

(d) Install the console box assembly with the 2 bolts.
2. INSTALL NO. 2 CONSOLE BOX CARPET

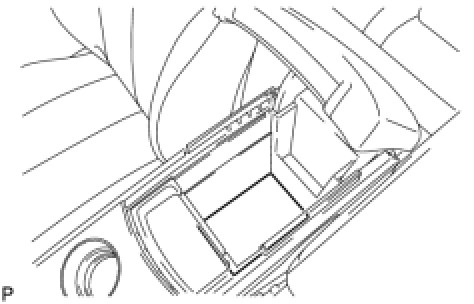

(a) Install the No. 2 console box carpet.
3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (w/o Seat Heater System) Installation
4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (w/ Seat Heater System) Installation
