Seat Temperature Element: Description and Operation

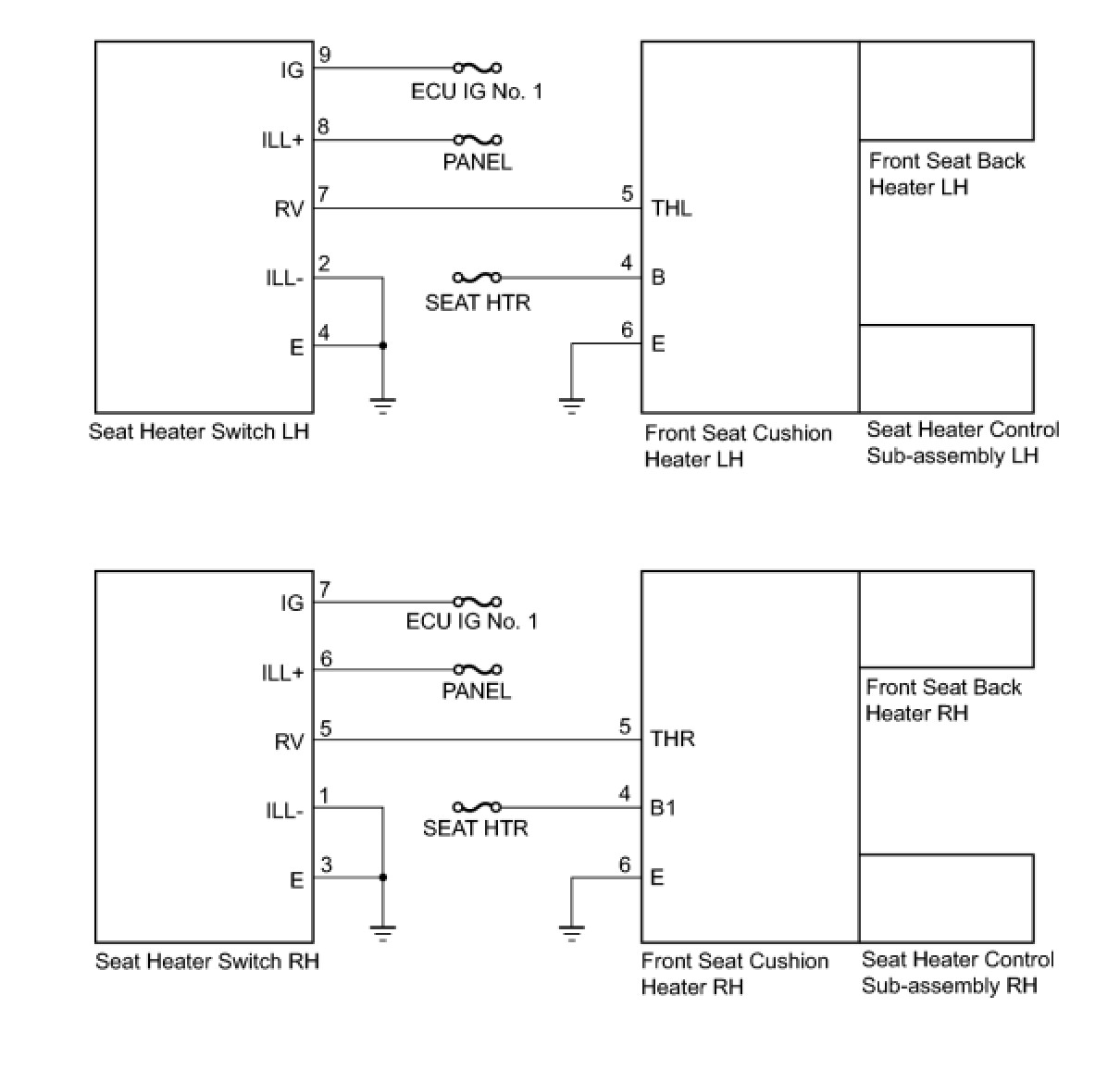

SEAT: SEAT HEATER SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
