BRAKE (FRONT): FRONT BRAKE FLEXIBLE HOSE: INSTALLATION

INSTALLATION
NOTICE:
- Because the left and right hoses are not interchangeable, verify the part number when installing the flexible hoses.
- If the hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.

1. INSTALL FRONT FLEXIBLE HOSE





(a) Connect the front flexible hose to the disc brake cylinder assembly with a new union bolt and a new gasket.
Torque: 29 Nm (300 kgf-cm, 22ft-lbf)
HINT: Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.





(b) Install the front flexible hose with a new clip.
NOTICE: Install the clip as far as it will go.

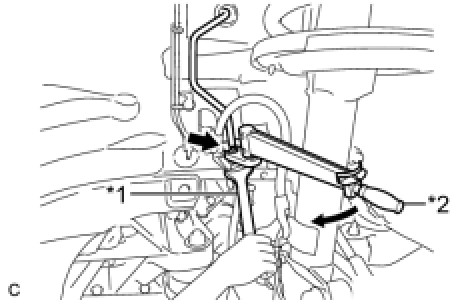

(c) Using a union nut wrench, connect the brake line to the front flexible hose while holding the front flexible hose with a wrench.

Text in Illustration





Torque: 15 Nm (155 kgf-cm, 11ft-lbf)

NOTICE:
- Do not kink or damage the brake line.
- Do not allow brake line to twist and interfere with other parts or body during flexible hose tightening.
- Do not allow any foreign matter such as dirt or dust to enter the brake line.
- Use the formula to calculate special torque values for situations where union nut wrench is combined with a torque wrench Service Precautions.

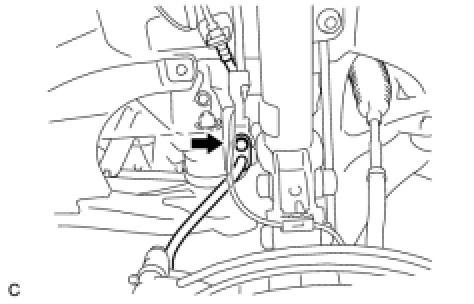

(d) Install the front flexible hose together with the speed sensor bracket to the absorber bracket with the bolt.
Torque: 19 Nm (192 kgf-cm, 14ft-lbf)
NOTICE: First install the speed sensor harness bracket, and then install the flexible hose bracket.

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
3. BLEED BRAKE LINE Service and Repair
4. INSPECT FOR BRAKE FLUID LEAK
5. INSPECT FLUID LEVEL IN RESERVOIR Testing and Inspection
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1050 kgf-cm, 76ft-lbf)
