Pinout Values and Diagnostic Parameters








CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

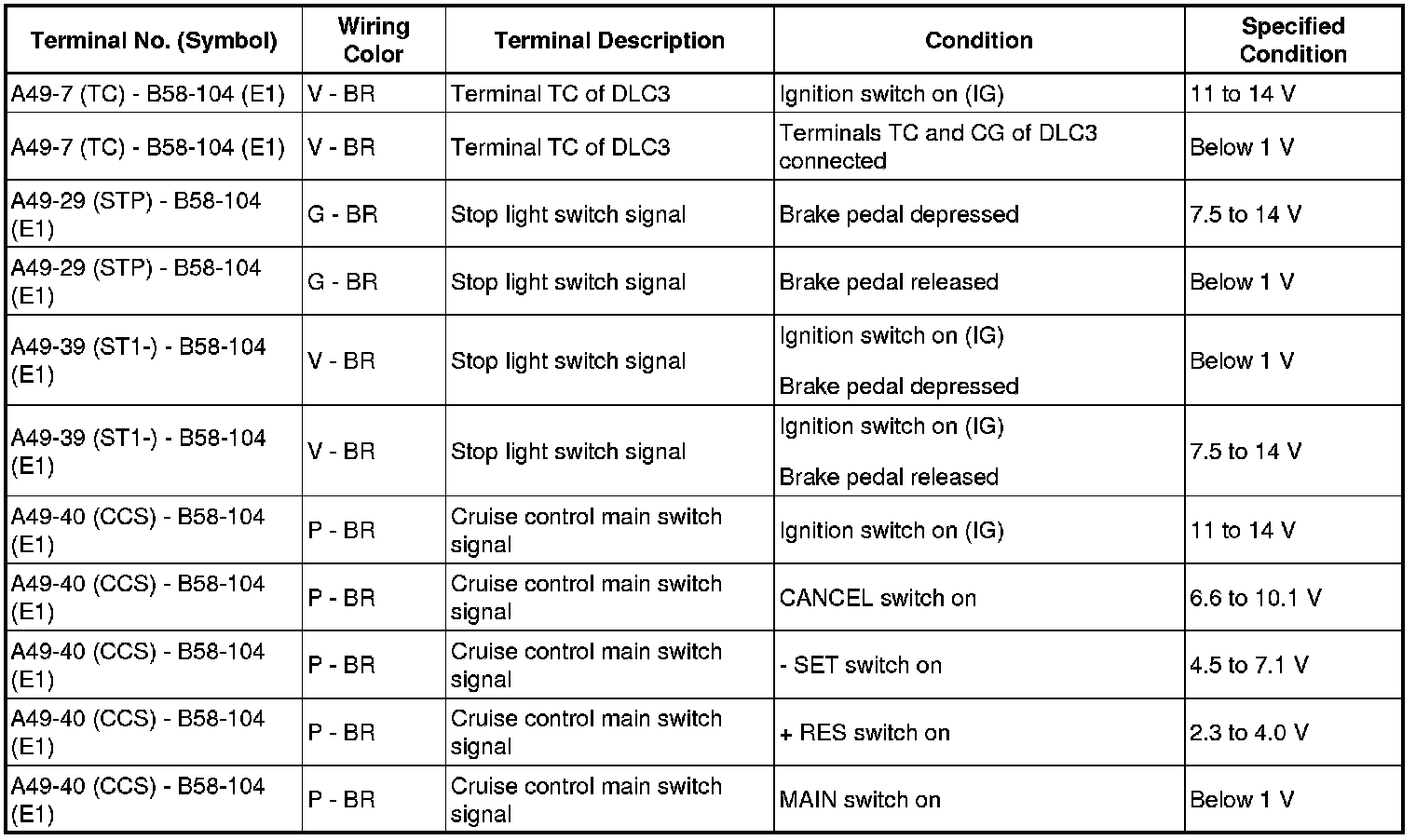

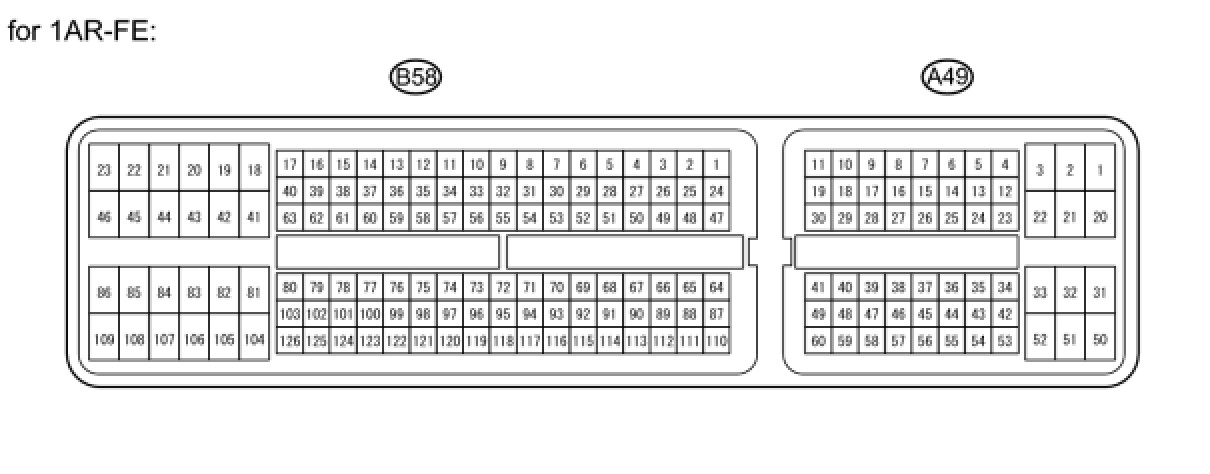

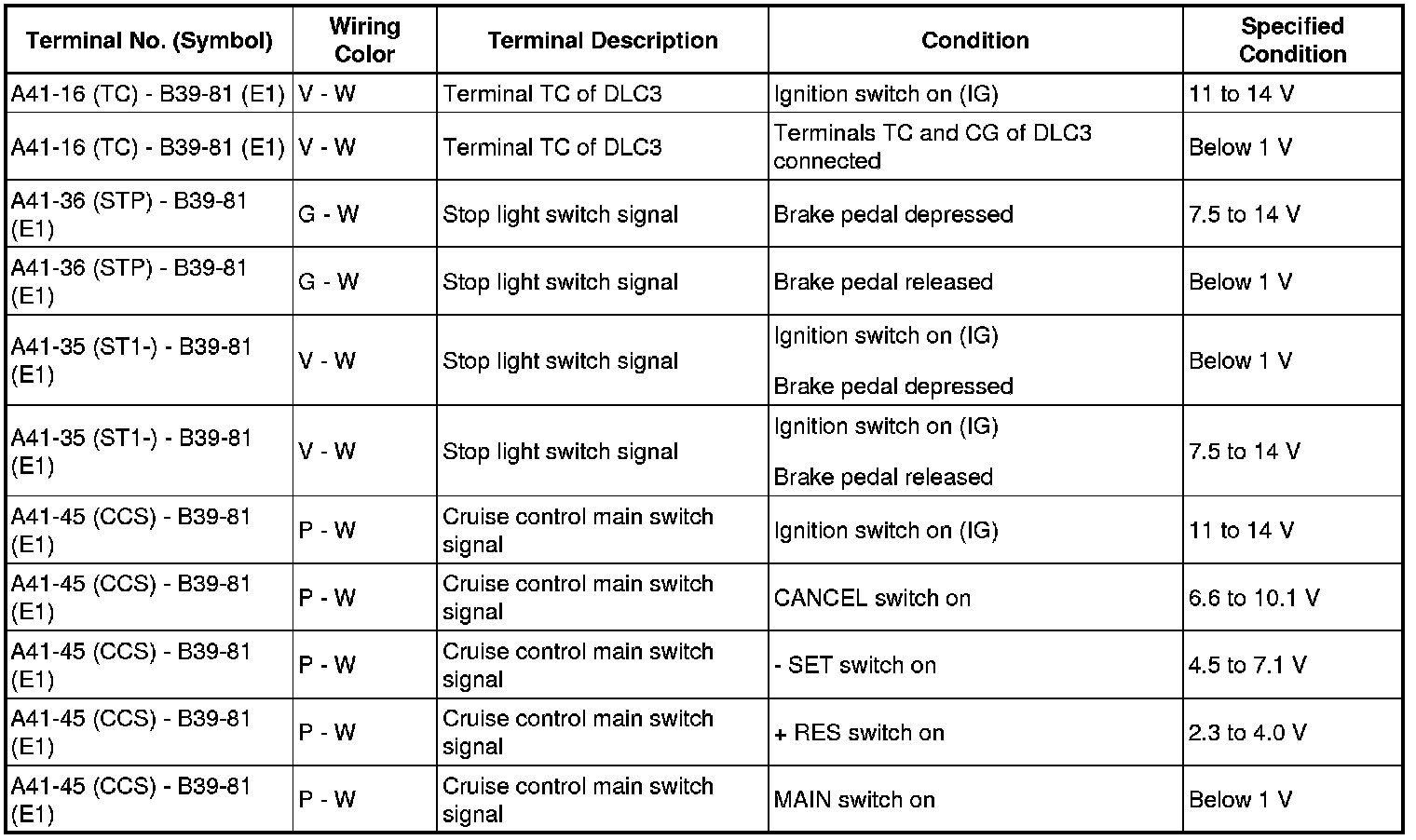

TERMINALS OF ECM

1. CHECK ECM
