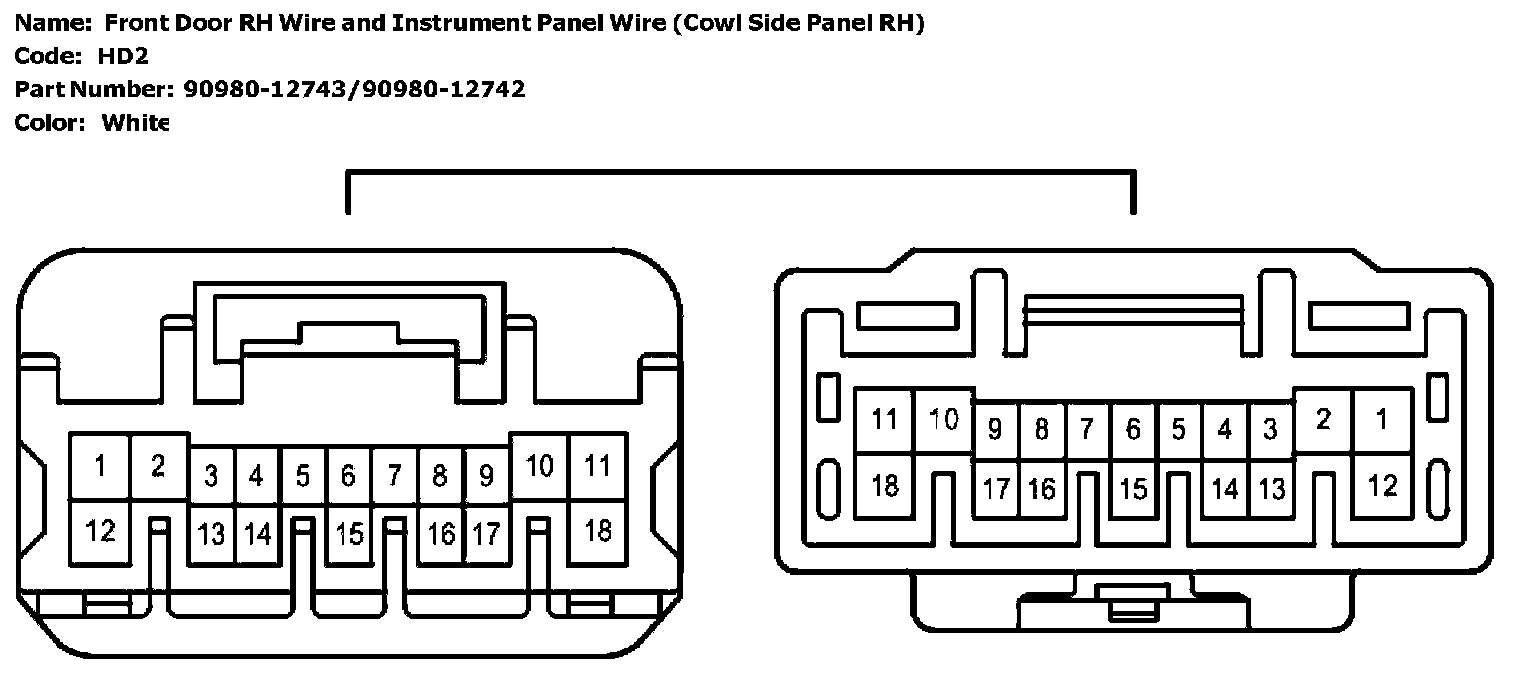

HD2 (Front Door RH Wire and Instrument Panel Wire (Cowl Side Panel RH))
HD2 (Front Door RH Wire and Instrument Panel Wire (Cowl Side Panel RH))
