Fuse Block

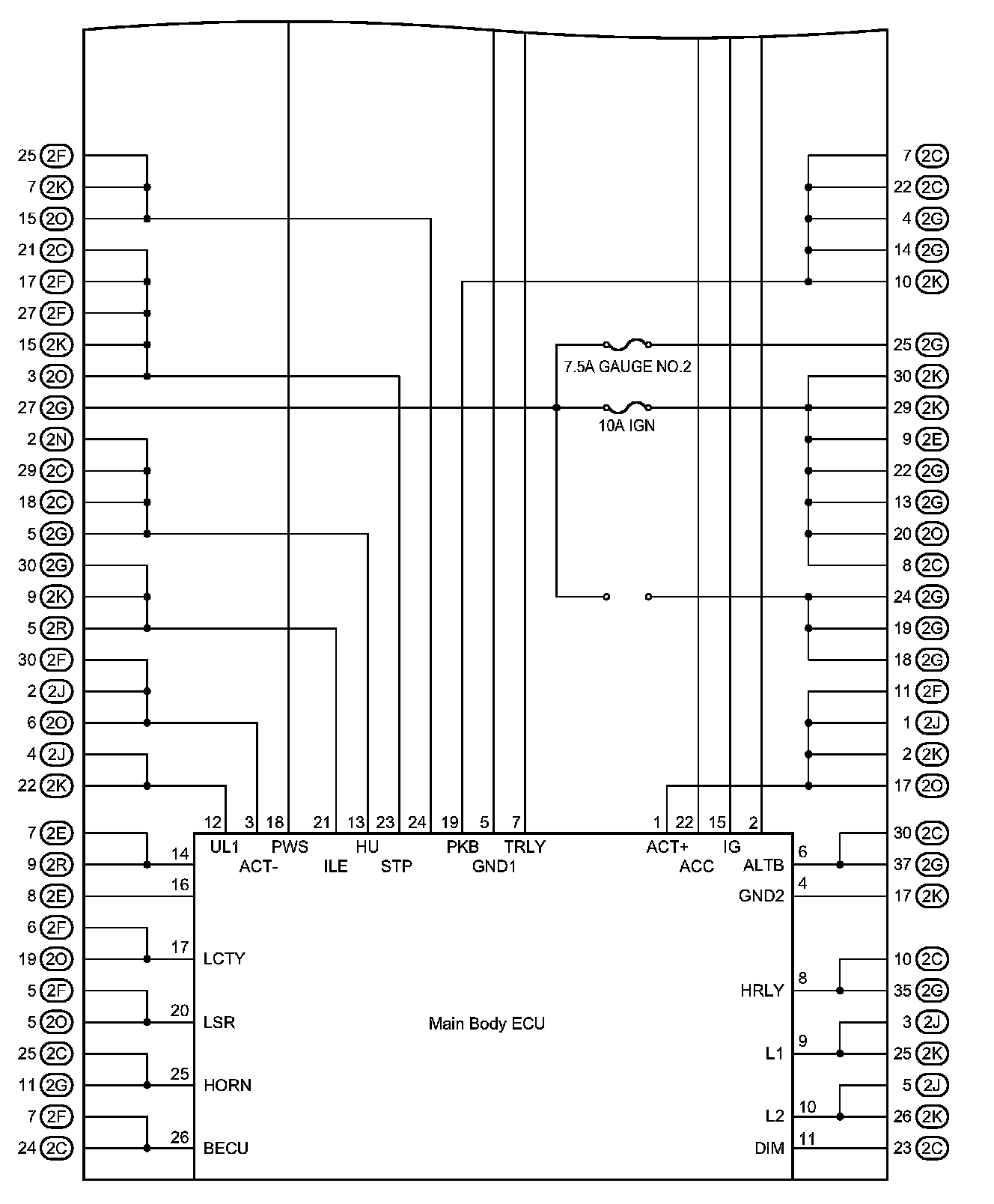

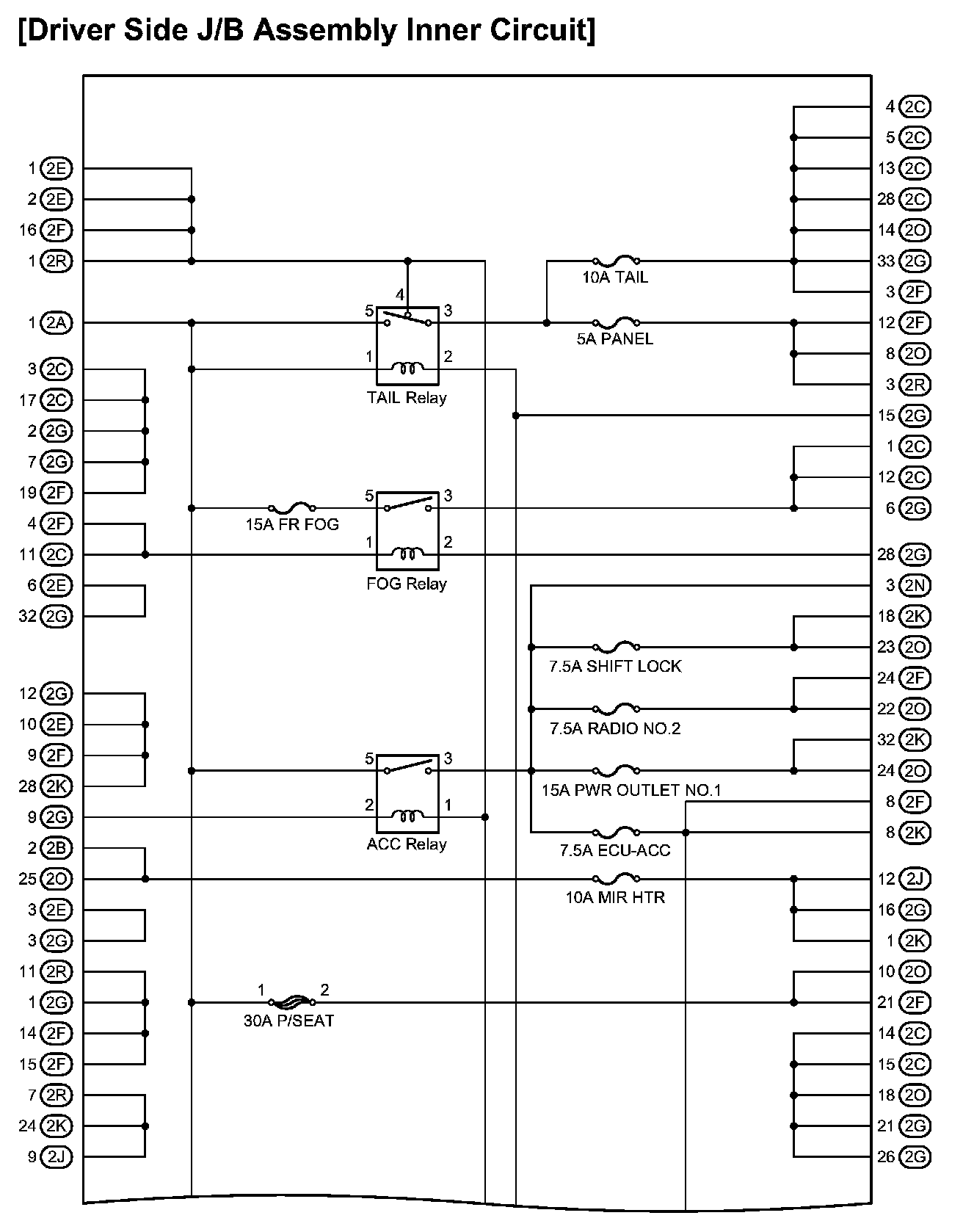

Driver Side J/B Assembly Inner Circuit:

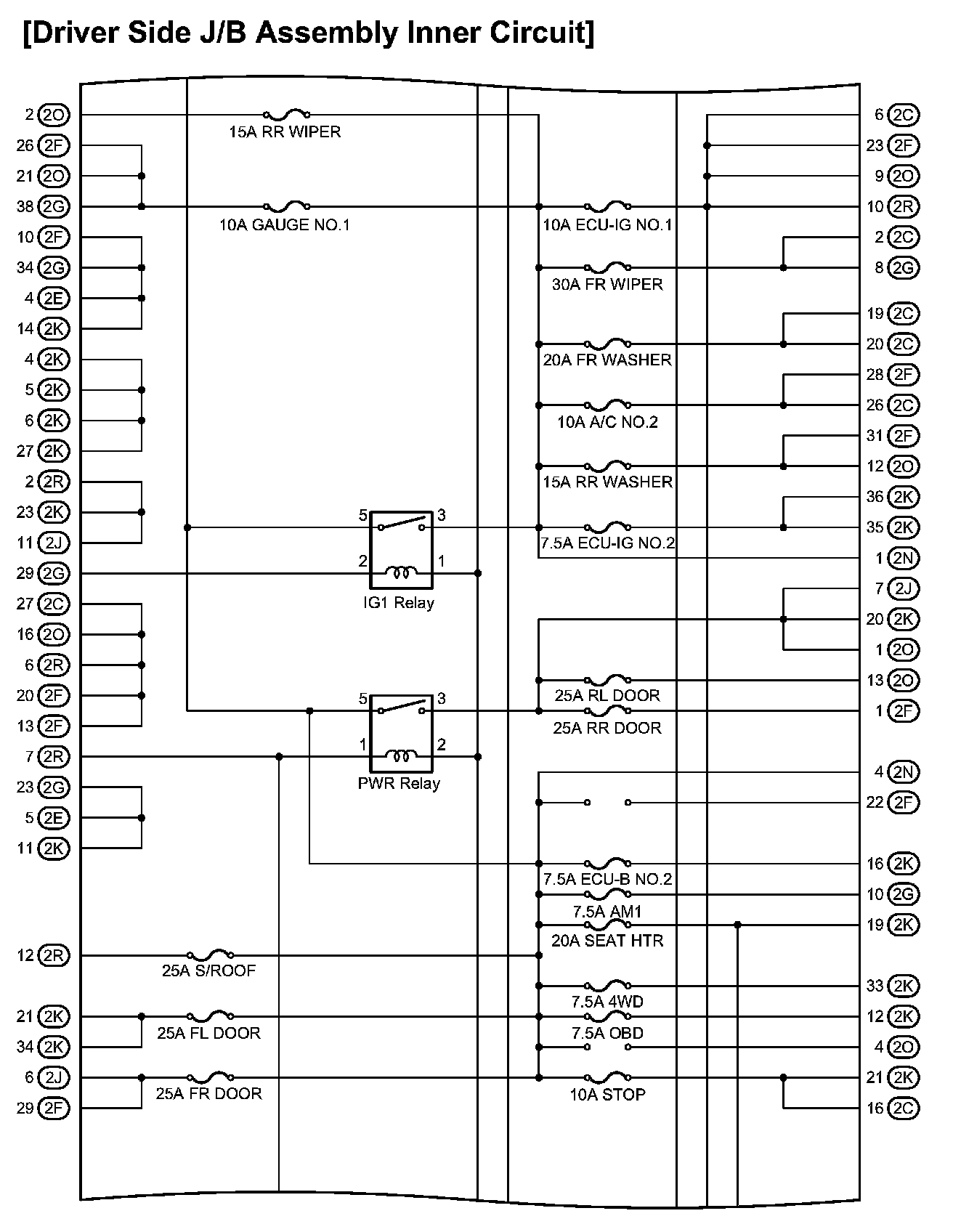

Driver Side J/B Assembly Inner Circuit:

Driver Side J/B Assembly Inner Circuit:

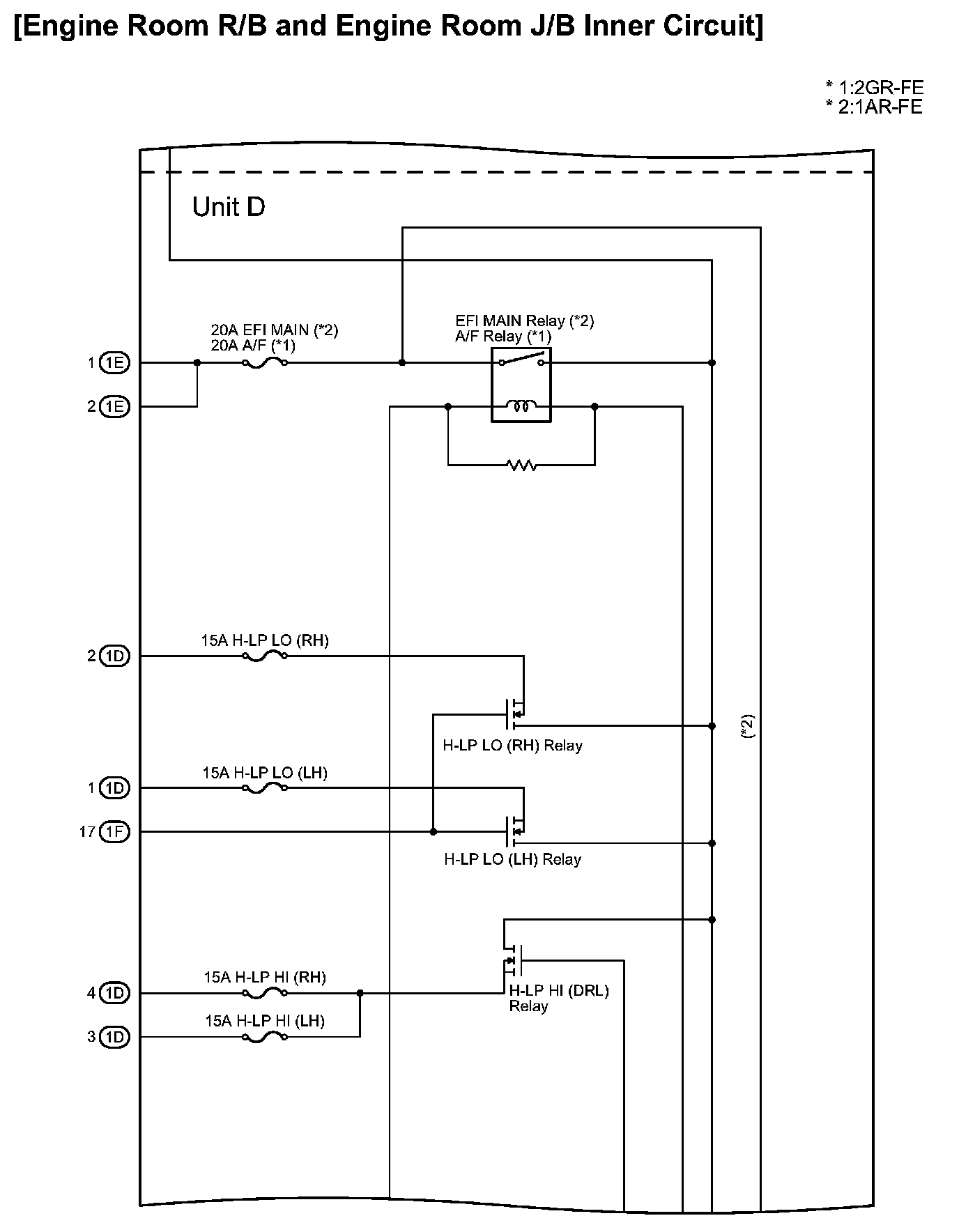

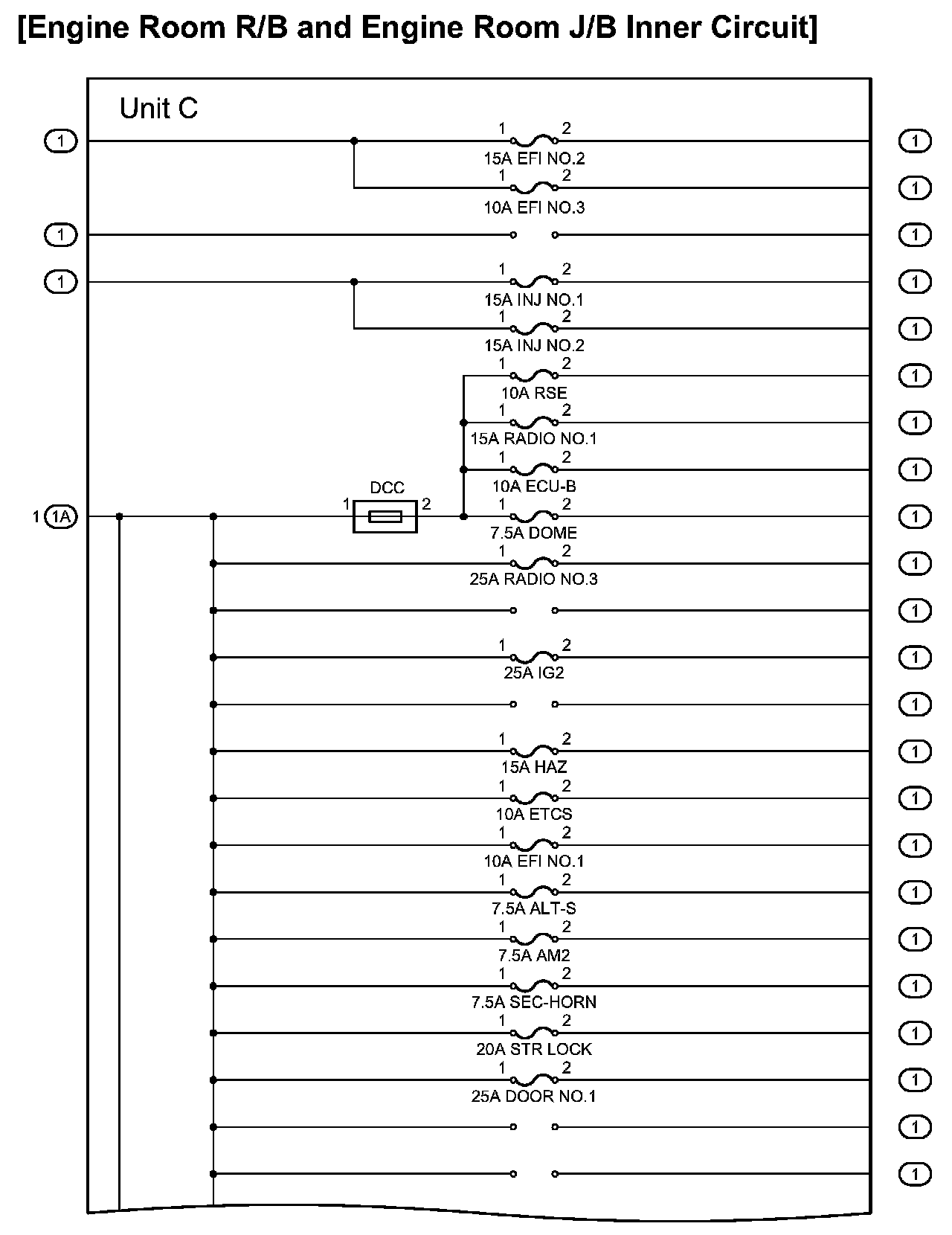

Engine Room R/B and Engine Room J/B Inner Circuit:

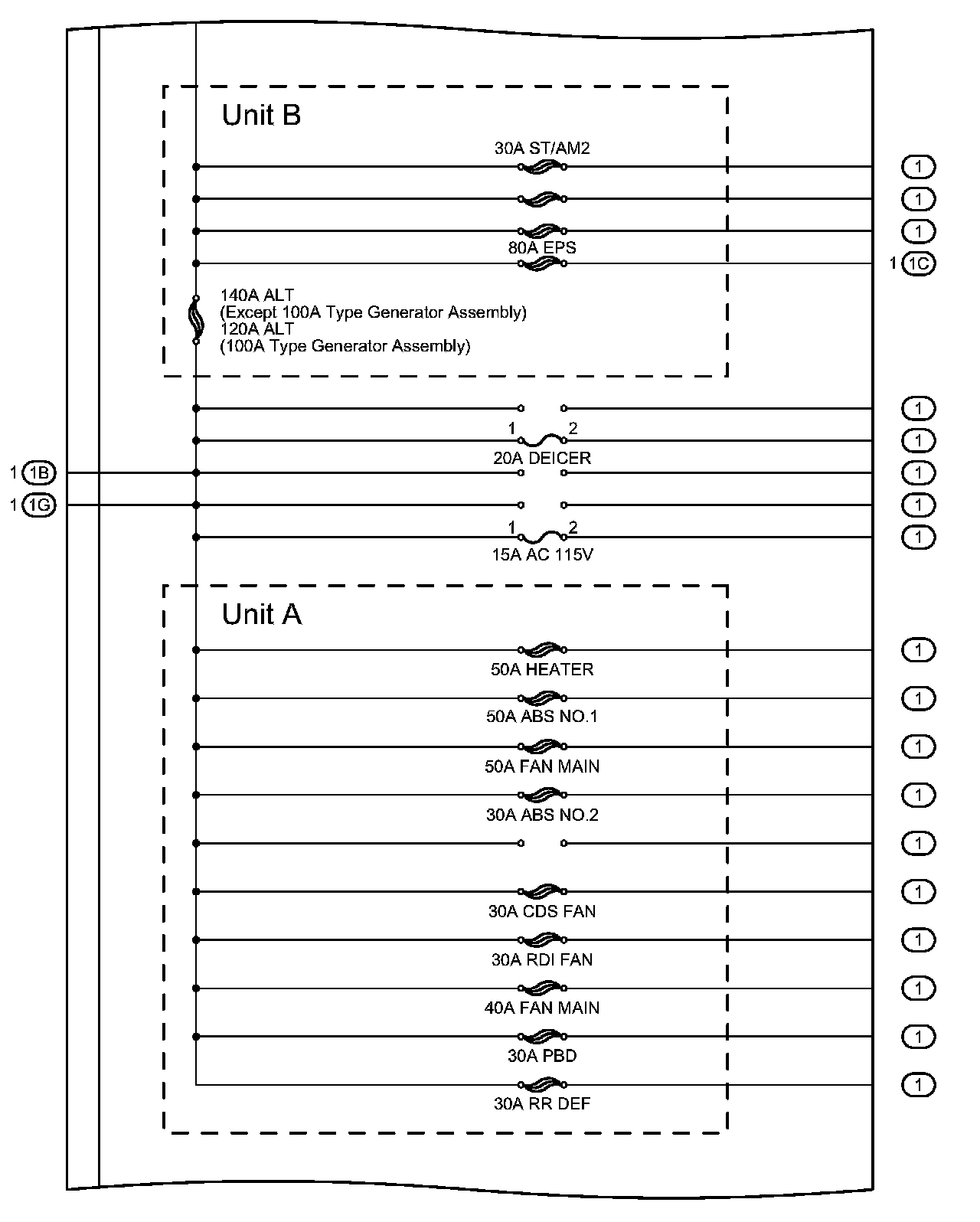

Engine Room R/B and Engine Room J/B Inner Circuit:

Engine Room R/B and Engine Room J/B Inner Circuit:

Engine Room R/B and Engine Room J/B Inner Circuit:

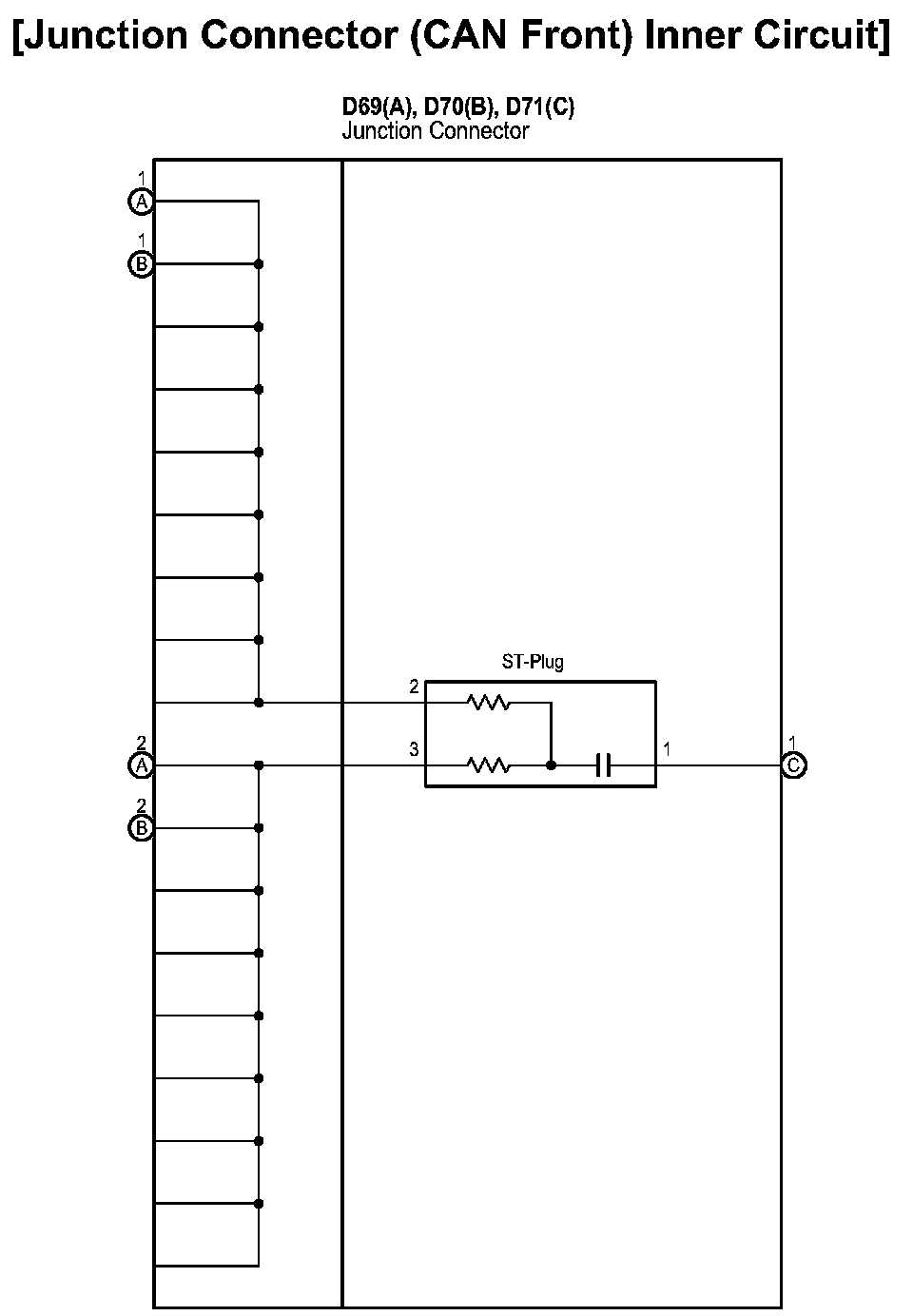

Junction Connector (CAN Front) Inner Circuit:

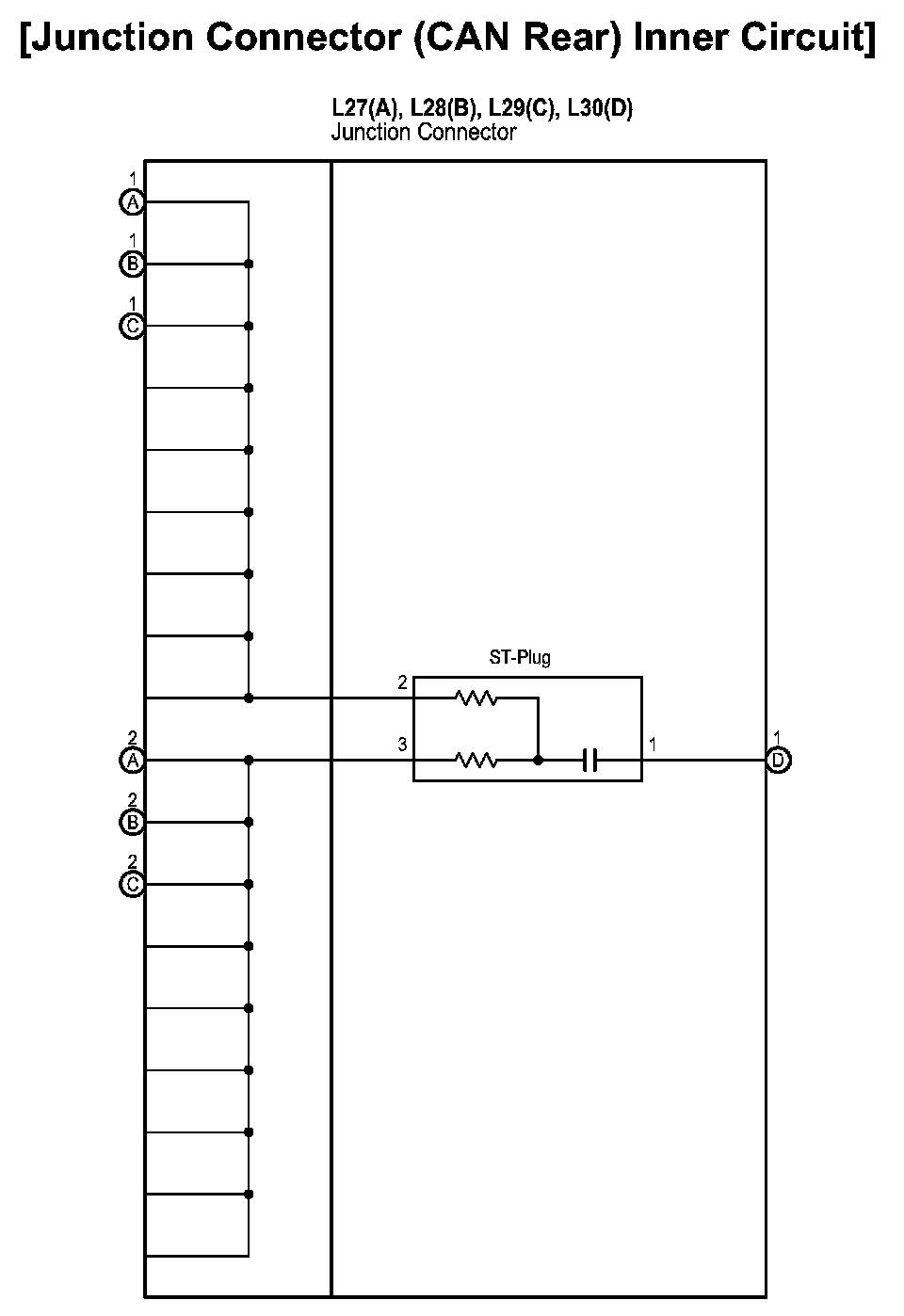

Junction Connector (CAN Rear) - Inner Circiut:
