Removal

1AR-FE COOLING: COOLING FAN MOTOR: REMOVAL

REMOVAL

1. REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
HINT: Removal

2. REMOVE FAN

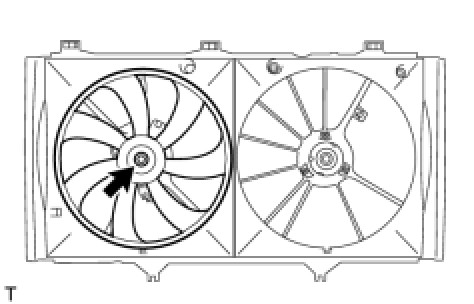

(a) Remove the nut and fan.
3. REMOVE NO. 2 FAN

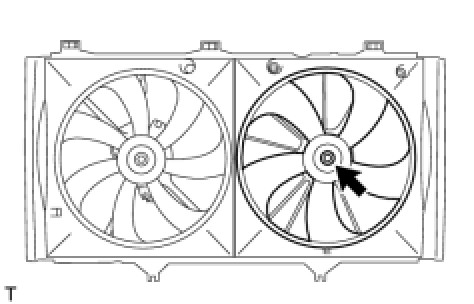

(a) Remove the nut and No. 2 fan.
4. REMOVE COOLING FAN MOTOR INSULATOR





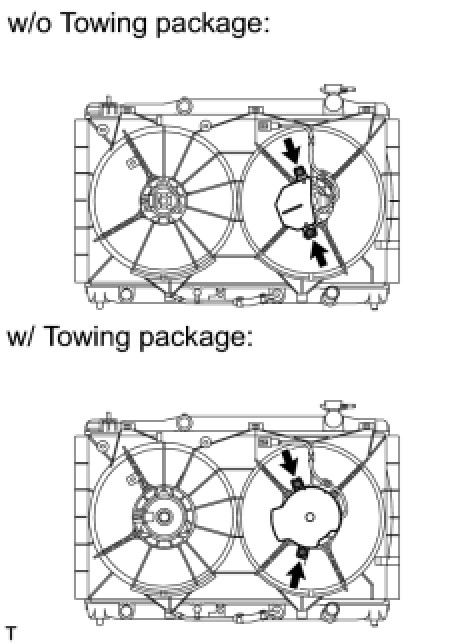

(a) Remove the 2 bolts and cooling fan motor insulator.
5. REMOVE COOLING FAN MOTOR

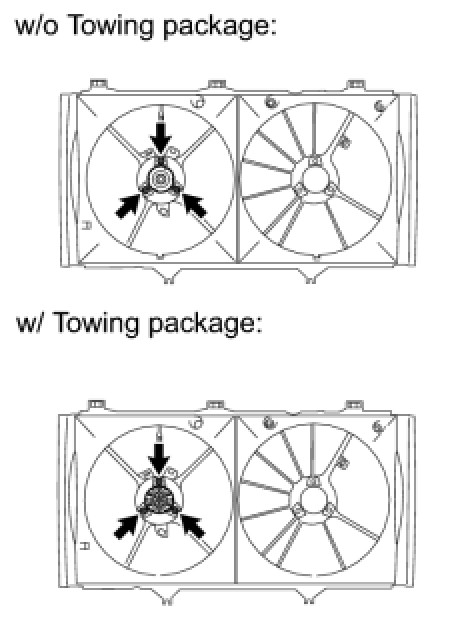

(a) Remove the 3 screws and cooling fan motor.
6. REMOVE NO. 2 COOLING FAN MOTOR

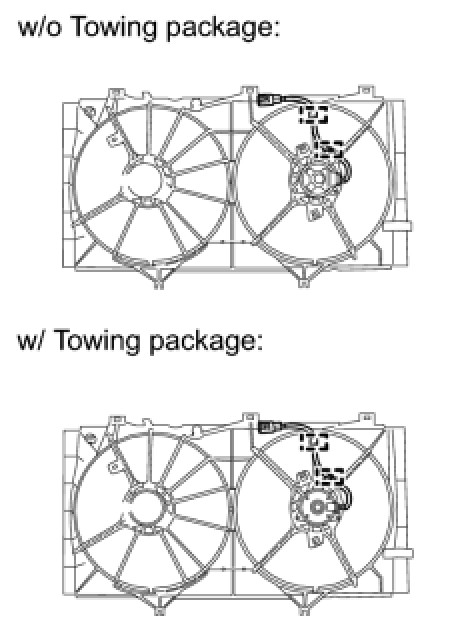

(a) Disconnect the No. 2 cooling fan motor connector and 2 clamps.

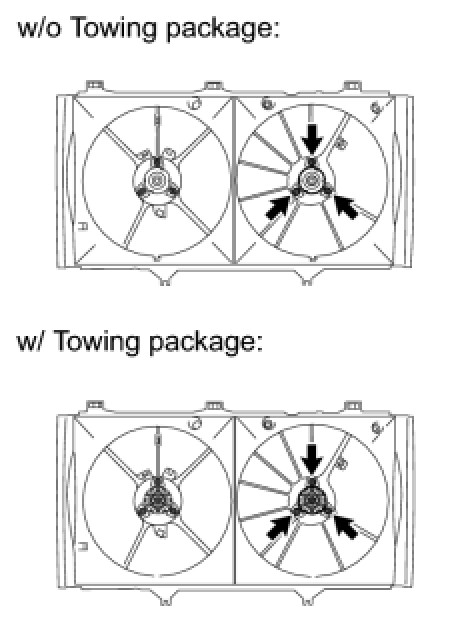

(b) Remove the 3 screws and No. 2 cooling fan motor.
