Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator
>>
Service and Repair
>>
Components
Components

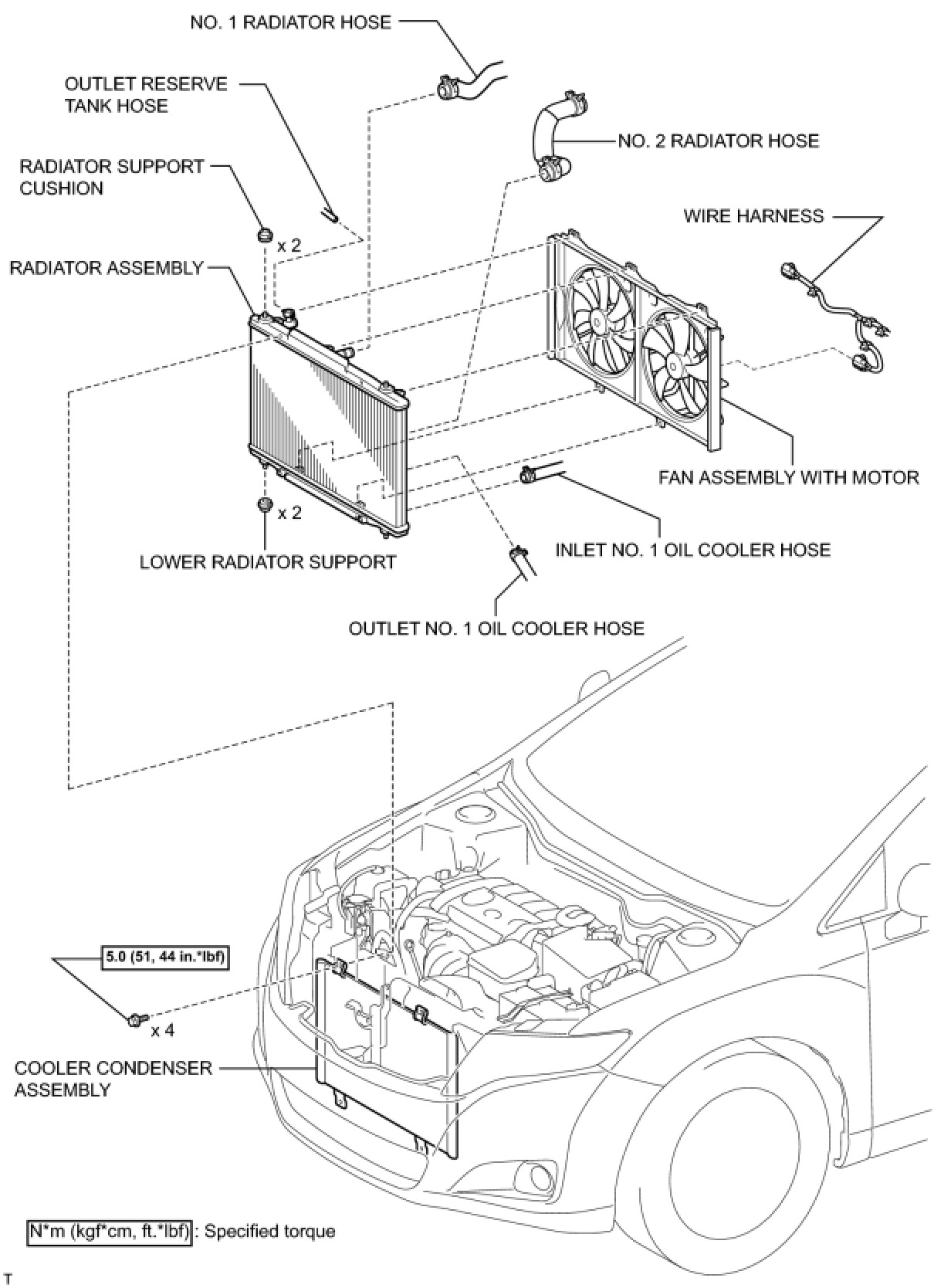

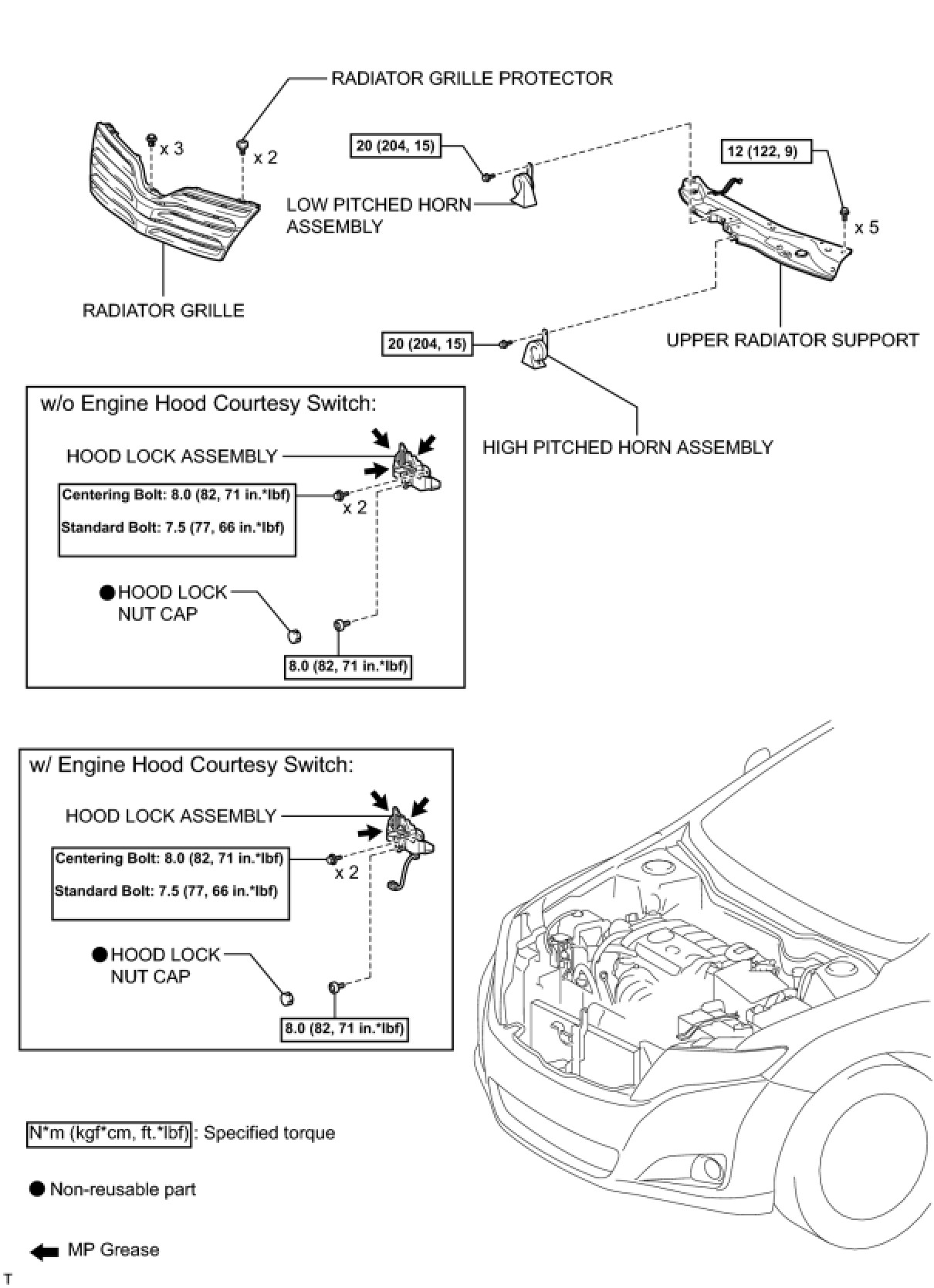

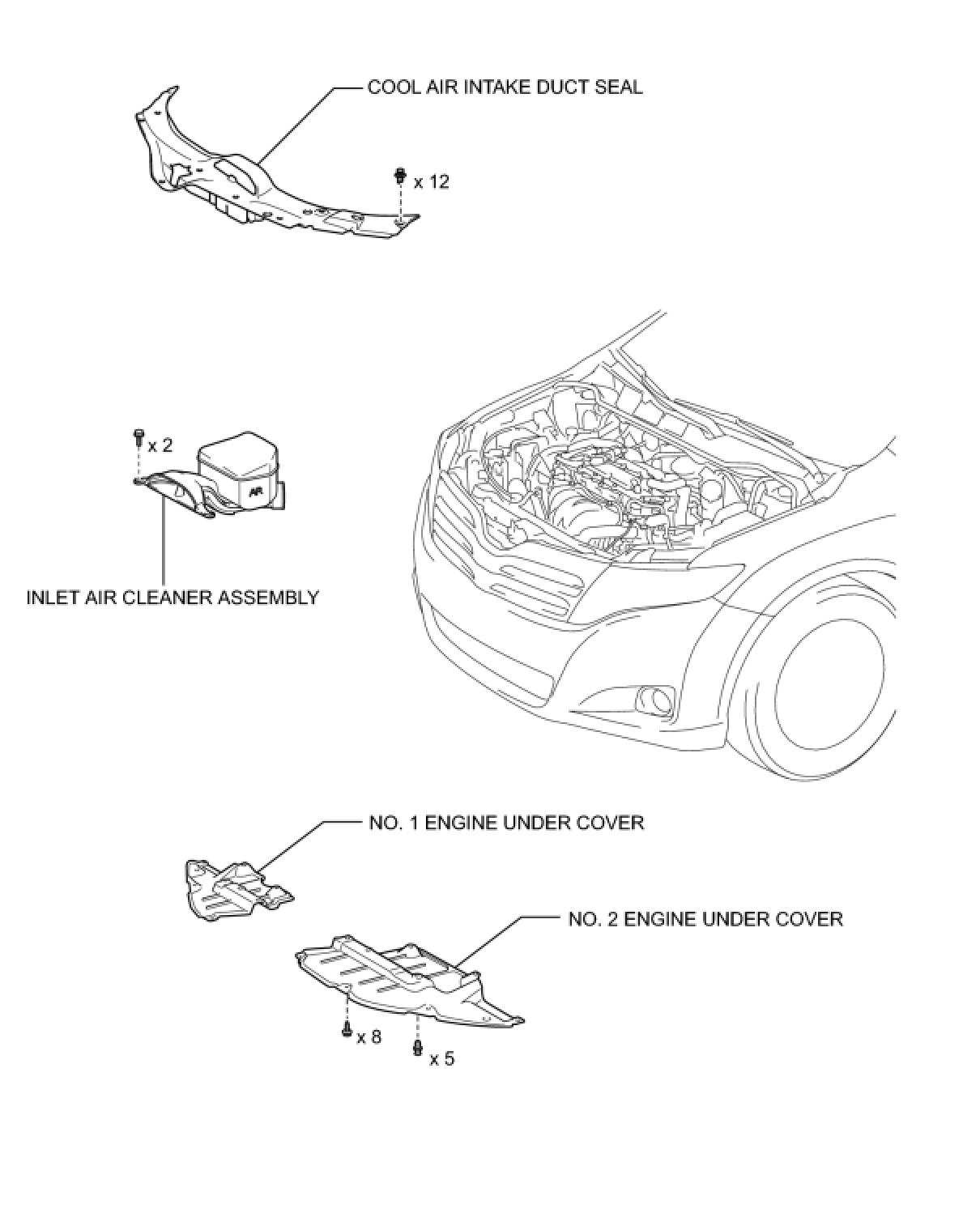

1AR-FE COOLING: RADIATOR: COMPONENTS
COMPONENTS
ILLUSTRATION
