Installation

1AR-FE LUBRICATION: ENGINE OIL COOLER: INSTALLATION

INSTALLATION

1. INSTALL OIL COOLER ASSEMBLY
(a) Clean the oil cooler contact surface on the cooler mounting.
(b) Apply a light coat of engine oil to 3 new gaskets.
(c) Install the 3 new gaskets to the oil cooler assembly.

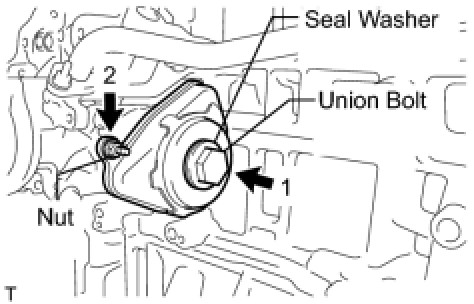

(d) Temporarily install the oil cooler assembly with the union bolt, nut and a new seal washer.





(e) Tighten the bolt and nut in several steps, in the sequence shown in the illustration.
Union Bolt - Torque: 60 Nm (612 kgf-cm, 44ft-lbf)
Nut - Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
2. INSTALL EXHAUST MANIFOLD ASSEMBLY
HINT: Installation

3. ADD ENGINE OIL Replacement
4. ADD ENGINE COOLANT Service and Repair
5. INSPECT FOR OIL LEAK Replacement
6. INSPECT ENGINE OIL LEVEL Testing and Inspection
