Diesel Data: Automotive Repair
Home >> Toyota >> 2009 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Service and Repair >> Components

Components

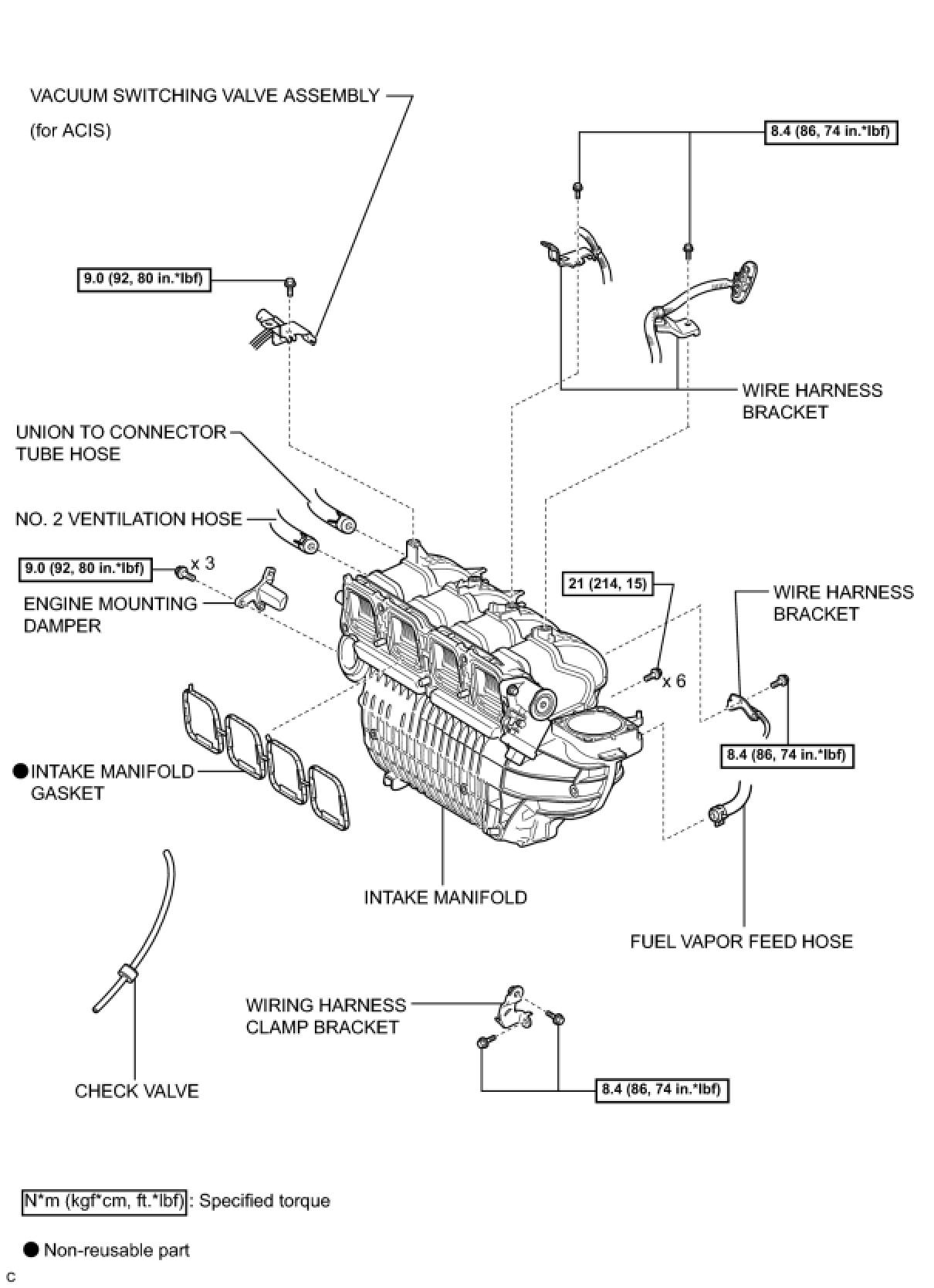

1AR-FE INTAKE / EXHAUST: INTAKE MANIFOLD: COMPONENTS

COMPONENTS

ILLUSTRATION
