BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SKID CONTROL BUZZER: INSTALLATION

INSTALLATION

1. INSTALL SKID CONTROL BUZZER ASSEMBLY

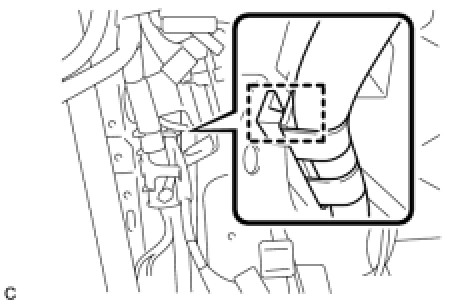

(a) Connect the skid control buzzer assembly connector.





(b) Install the skid control buzzer assembly clamp.





(c) Install the wire harness clamp.
2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
HINT: Refer to the procedure up to Install Driver Side Knee Airbag Assembly Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSPECT SRS WARNING LIGHT Installation
