Removal

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RECEIVER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
HINT:
- Refer to the procedures up to "Remove roof side inner garnish assembly" Removal.
- Removal should be performed only for the left side.

3. REMOVE TIRE PRESSURE WARNING ANTENNA AND RECEIVER

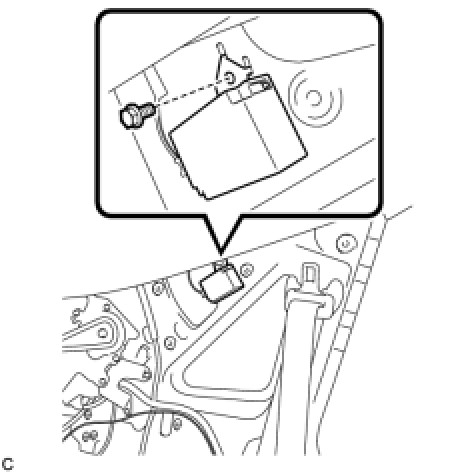

(a) Remove the bolt.

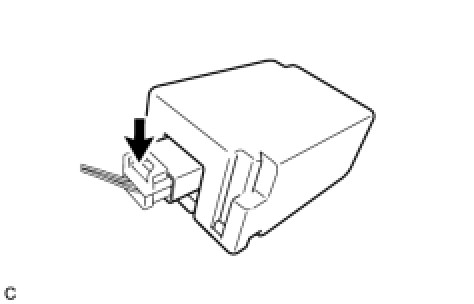

(b) Disconnect the connector to remove the tire pressure warning antenna and receiver.
