Components

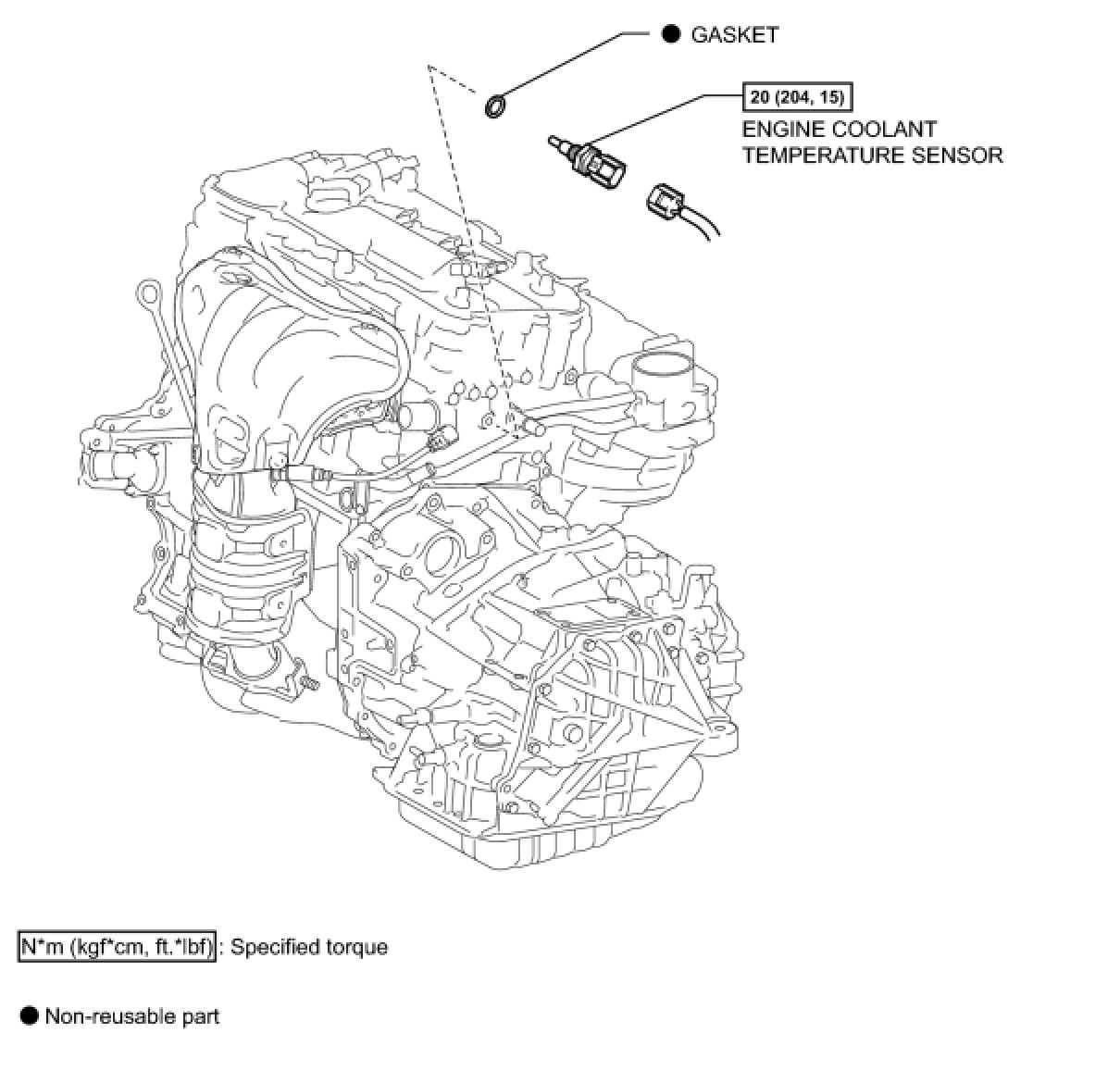

1AR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: COMPONENTS

COMPONENTS

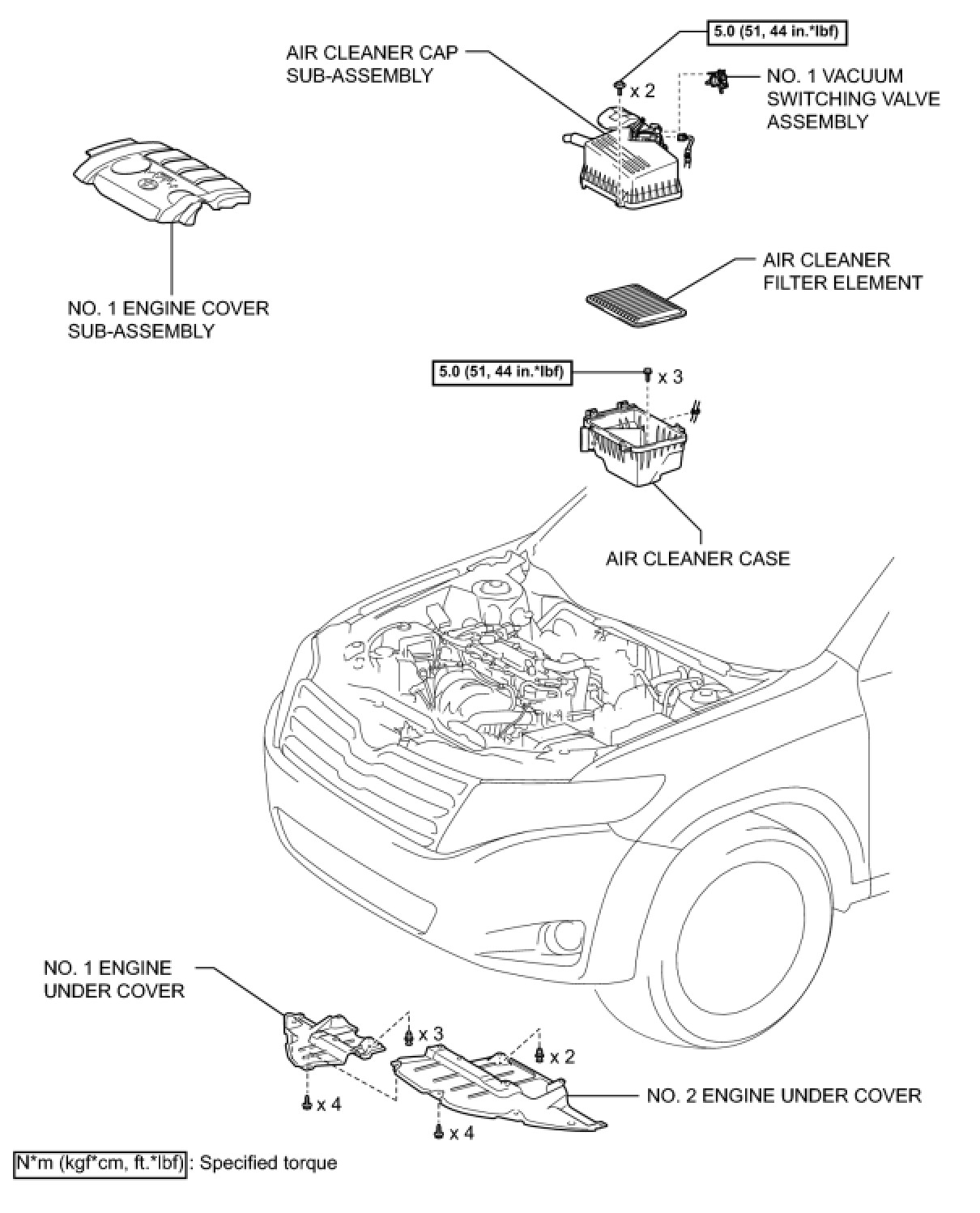

ILLUSTRATION
