Air Fuel Ratio Sensor

1AR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

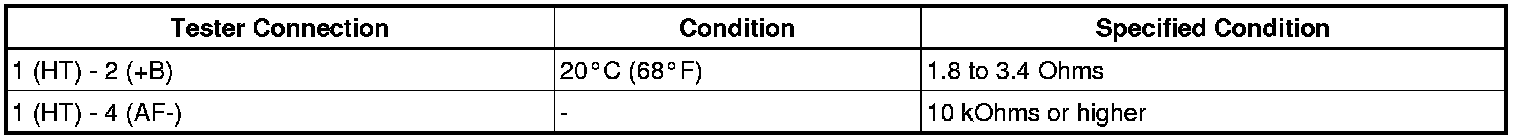

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the air fuel ratio sensor.

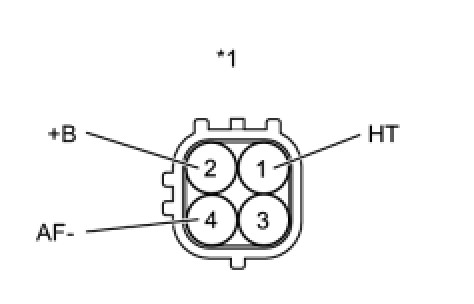

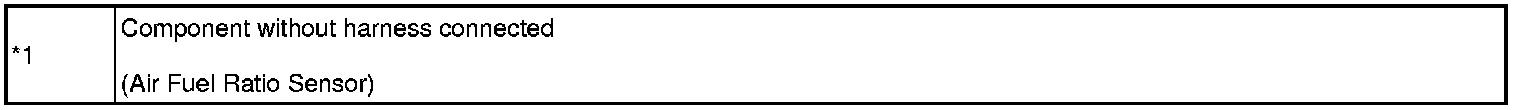

Text in Illustration
