Removal

1AR-FE ENGINE CONTROL: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE UNDER COVER
2. REMOVE NO. 2 ENGINE UNDER COVER
3. REMOVE HEATED OXYGEN SENSOR





(a) Disconnect the heated oxygen sensor connector.





(b) Disconnect the wire harness from the wire harness clamp.

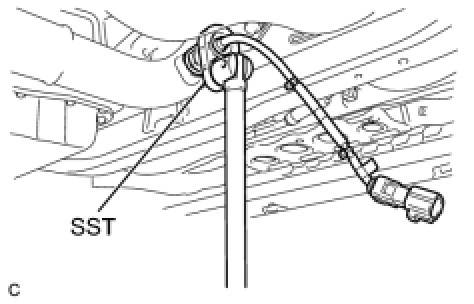

(c) Using SST, remove the heated oxygen sensor from the front exhaust pipe.
SST: 09224-00010
