Emission Control Systems: Description and Operation
1AR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

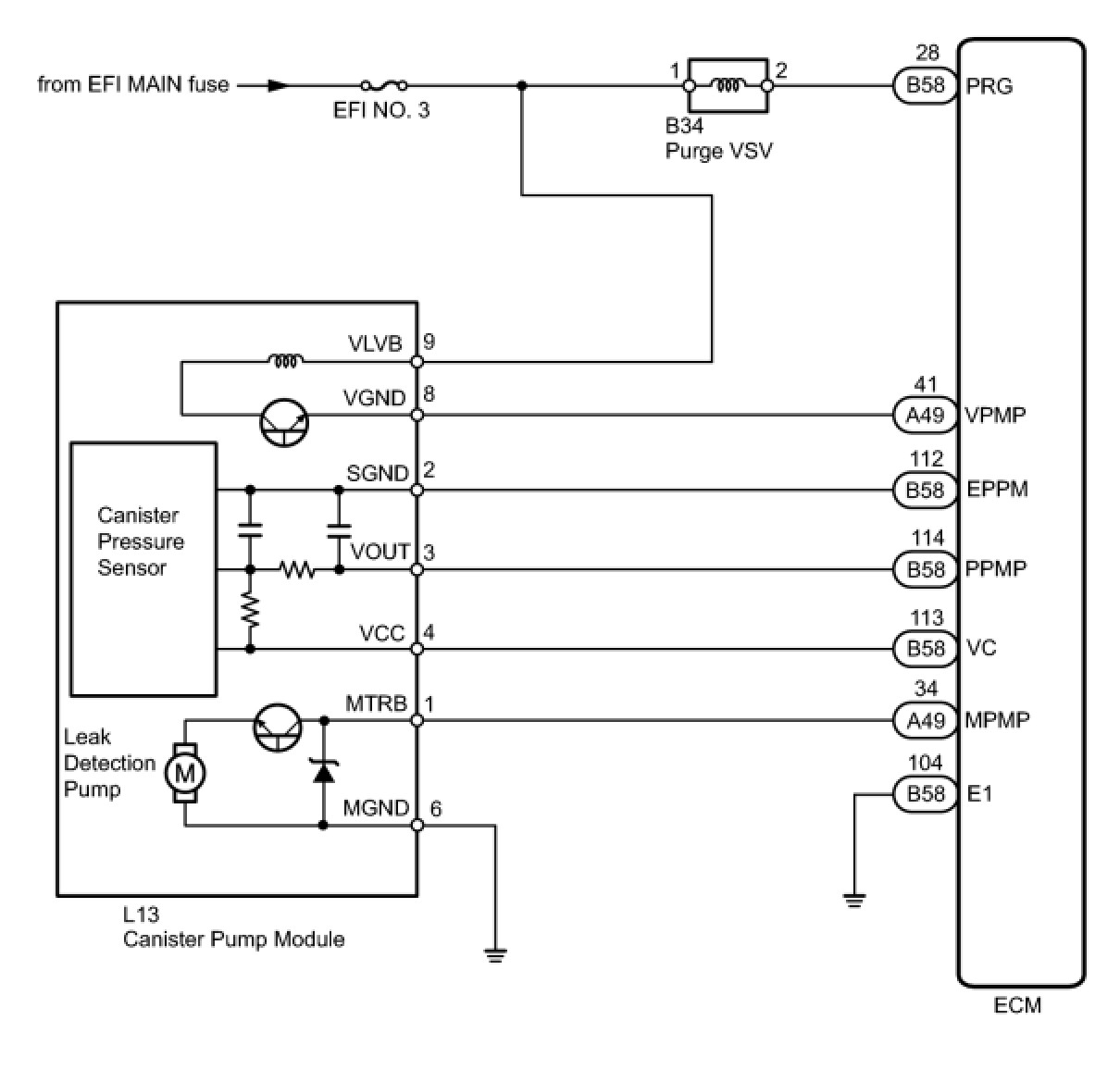

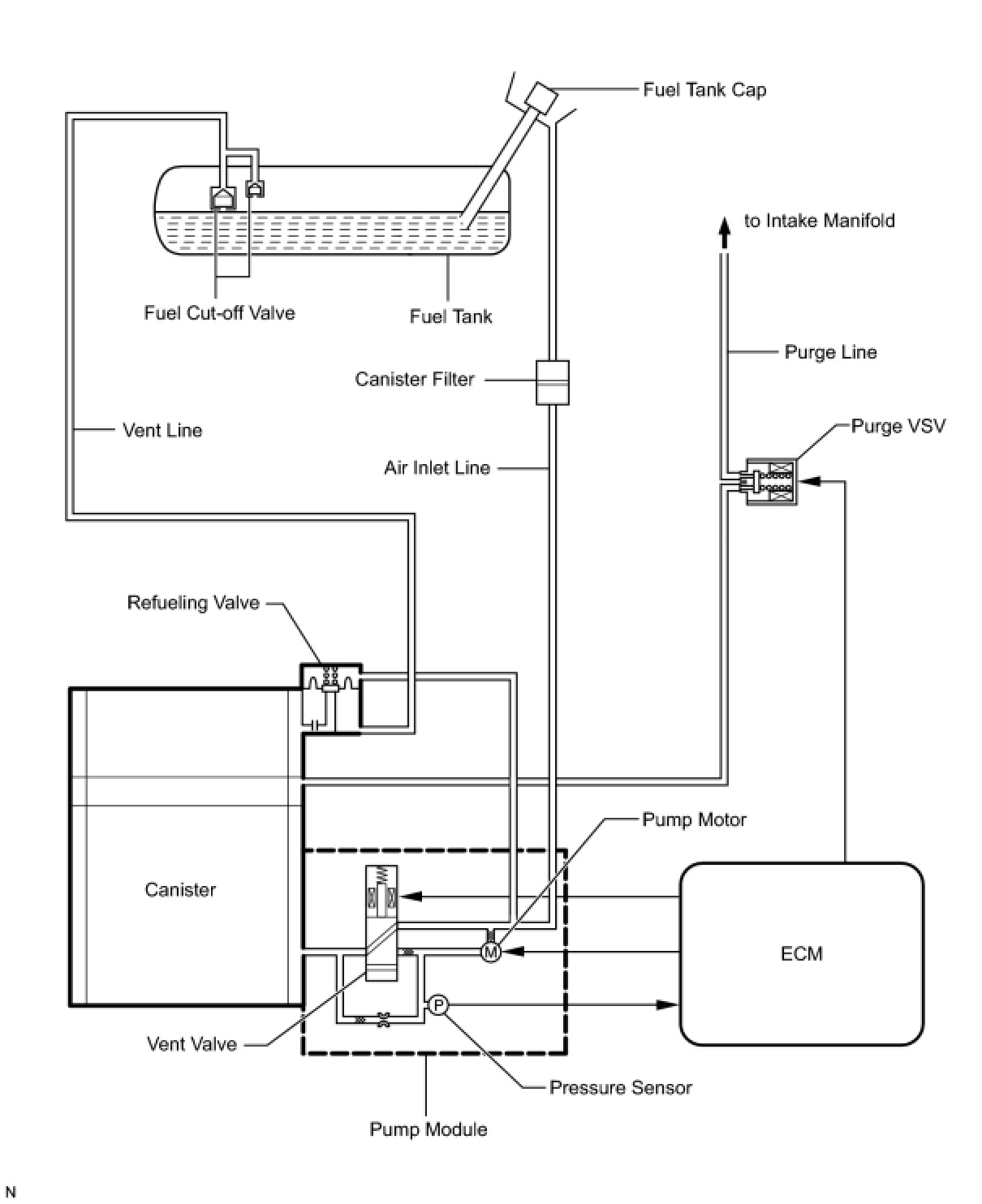

SYSTEM DIAGRAM
