Canister Purge Solenoid: Testing and Inspection

1AR-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

INSPECTION

1. INSPECT NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

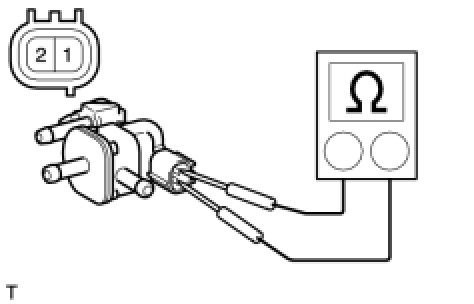

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the No. 1 vacuum switching valve assembly.
(b) Check the operation of the No. 1 vacuum switching valve assembly.

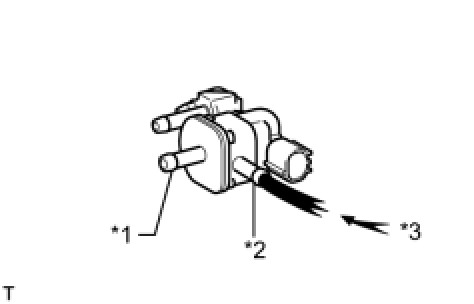

(1) Check that air does not flow from port F when air is applied to port E.

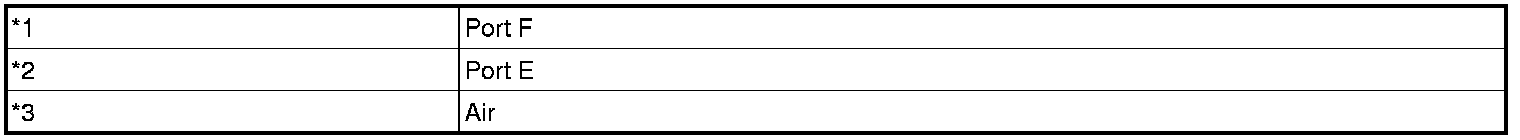

Text in Illustration

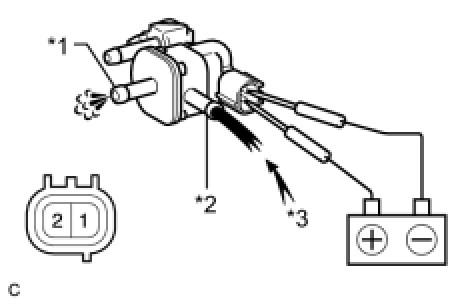

(2) Apply battery voltage to the connector, and check the VSV operation.

Text in Illustration

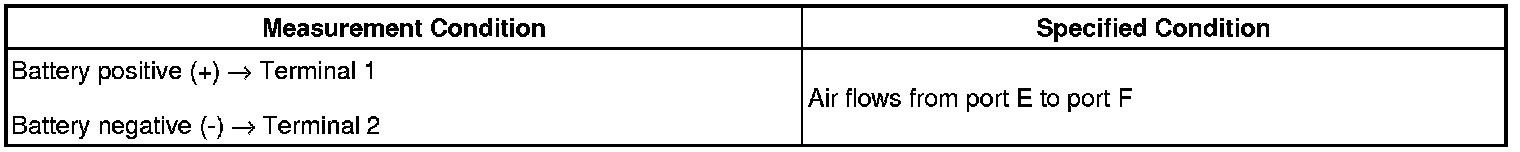

OK:





If the result is not as specified, replace the No. 1 vacuum switching valve assembly.
