Installation

1AR-FE EMISSION CONTROL: CANISTER: INSTALLATION

INSTALLATION

1. INSTALL CHARCOAL CANISTER ASSEMBLY





(a) Install the charcoal canister assembly with the 4 nuts and 2 clips.
Torque: 5.5 Nm (56 kgf-cm, 49in-lbf)





(b) Connect the 2 quick connectors, hose and connector.
2. INSTALL NO. 1 FLOOR UNDER COVER

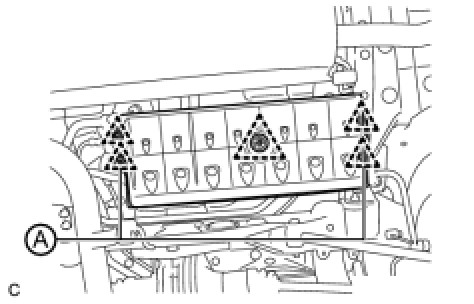

(a) Install the No. 1 floor under cover with the 5 clips.
Clip (A) - Torque: 2.2 Nm (22 kgf-cm, 20in-lbf)
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
