Installation

1AR-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

INSTALLATION

1. INSTALL VENTILATION VALVE SUB-ASSEMBLY

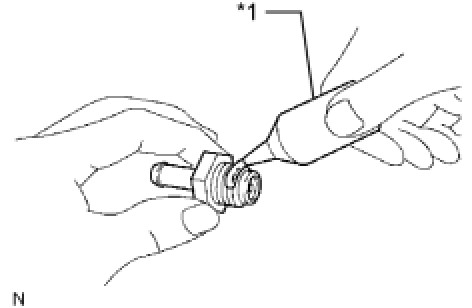

(a) Apply adhesive to 2 or 3 threads of the ventilation valve.

Text in Illustration





Adhesive:
Toyota genuine adhesive 1324, three bond 1324 or equivalent





(b) Using a 19 mm deep socket wrench, install the ventilation valve.

Text in Illustration





Torque: 27 Nm (275 kgf-cm, 20ft-lbf)





(c) Connect the No. 2 ventilation hose to the ventilation valve.
2. INSTALL INTAKE MANIFOLD
(a) Install the intake manifold Installation.
3. INSPECT FOR OIL LEAK
