Installation

1AR-FE ENGINE CONTROL: ACCELERATOR PEDAL: INSTALLATION

INSTALLATION

1. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

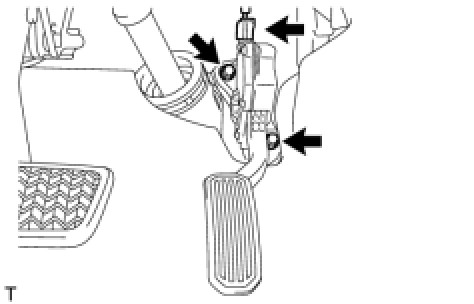

(a) Install the accelerator pedal sensor assembly with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48in-lbf)
NOTICE: Avoid physical shocks to the accelerator pedal sensor assembly.

(b) Connect the accelerator pedal sensor assembly connector.
