Fuel Delivery and Air Induction: Description and Operation

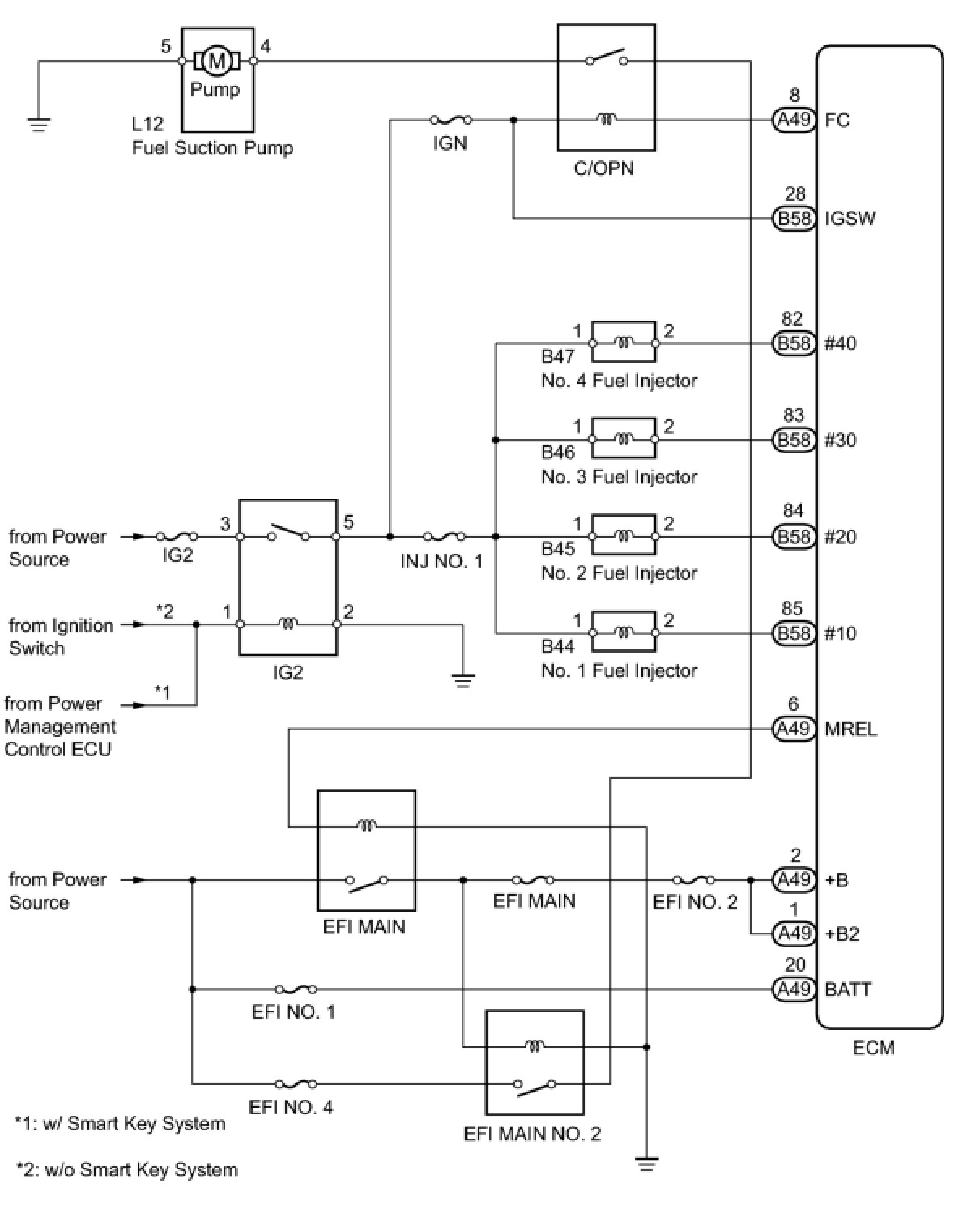

1AR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
