1AR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

INSTALLATION

1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY





(a) Apply a light coat of gasoline or spindle oil to a new O-ring.

Text in Illustration





(b) Install the O-ring to the fuel pressure pulsation damper.

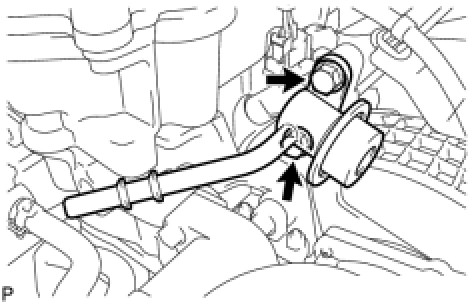

(c) Install the fuel pressure pulsation damper with the 2 bolts.
Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
NOTICE: Make sure that the O-ring is not cracked or jammed when installing the damper.

2. INSTALL FUEL TUBE SUB-ASSEMBLY





Text in Illustration

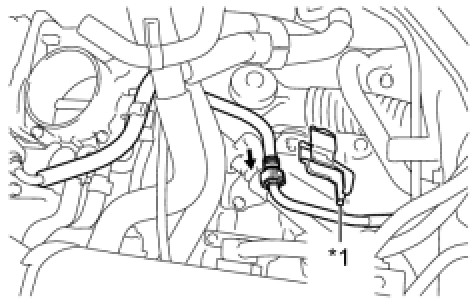

(a) Connect the fuel tube.
(b) Push the fuel tube connector until it makes a "click" sound.
(c) Install a new No. 2 fuel pipe clamp.
(d) Install the fuel tube to the fuel hose clamp.

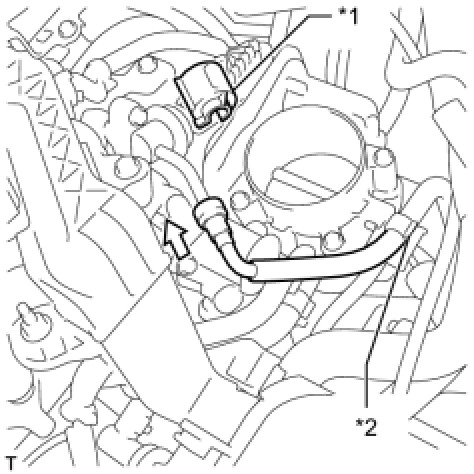

(e) Push the tube connector into the pipe until the tube connector makes a "click" sound.

Text in Illustration





NOTICE:
- Before connecting the connector and fuel pipe, check that there is no damage or foreign matter on the connecting part of the fuel pipe.
- After connecting the fuel tube connector and pipe, check that they are securely connected by trying to pull them apart.

(f) Install the No. 1 fuel pipe clamp.
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
4. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY Installation
5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
6. INSTALL OUTER COWL TOP PANEL Installation
7. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
(a) Install the windshield wiper motor and link assembly Installation.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSPECT FOR FUEL LEAK Testing and Inspection
