Fuel Delivery and Air Induction: Locations

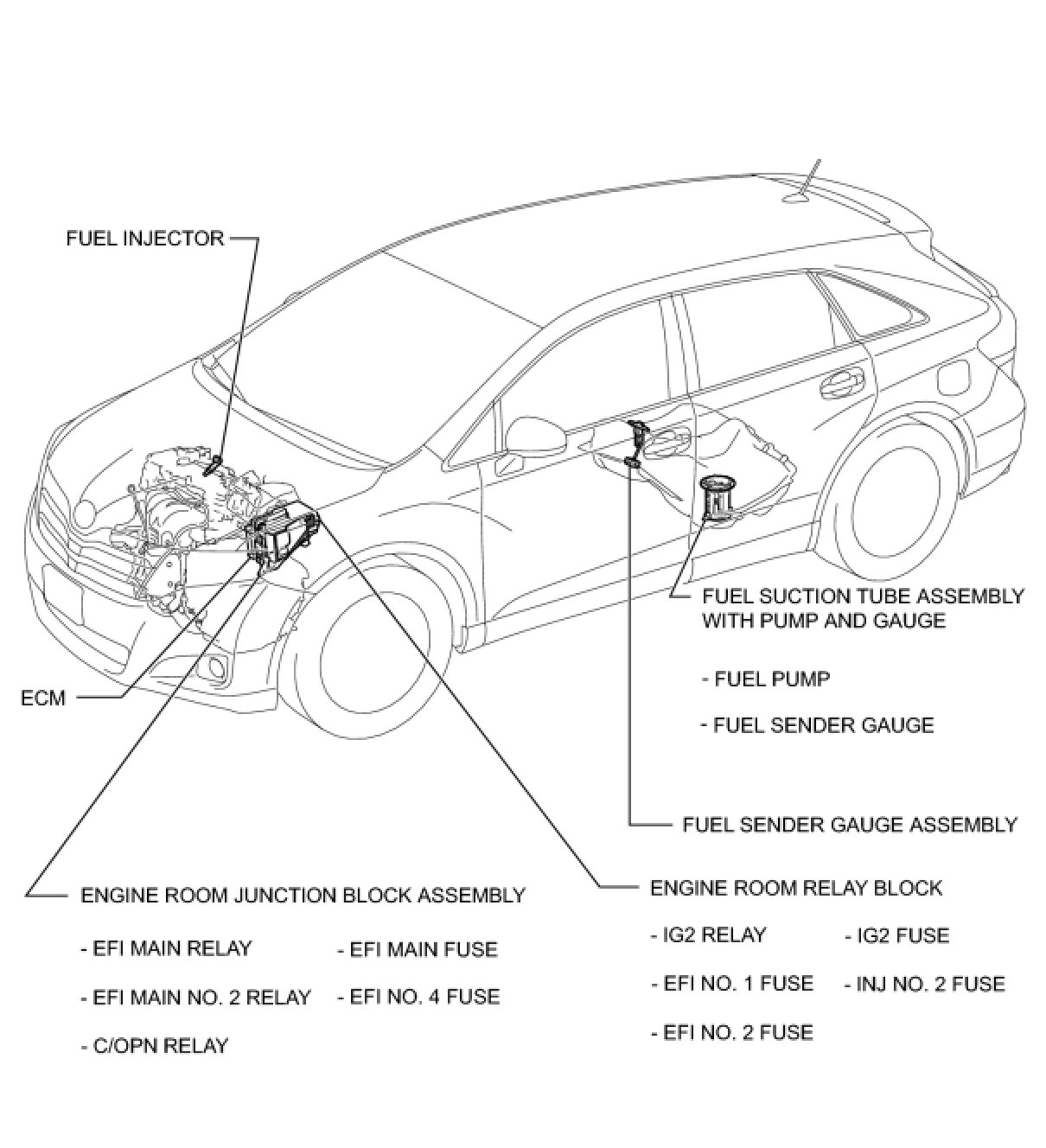

1AR-FE FUEL: FUEL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
