1AR-FE INTAKE / EXHAUST: VACUUM SWITCHING VALVE (for ACIS): REMOVAL

REMOVAL

1. REMOVE FRONT WIPER ARM HEAD CAP Removal
2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal
5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal
6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Removal
8. REMOVE OUTER COWL TOP PANEL Removal
9. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

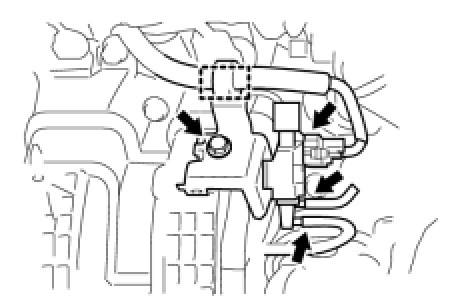

10. REMOVE VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)





(a) Disconnect the 2 vacuum hoses, clamp and connector.
(b) Remove the bolt and vacuum switching valve assembly (for ACIS).
