Removal

1AR-FE ENGINE CONTROL: ECM: REMOVAL

REMOVAL

1. REMOVE WINDSHIELD WIPER MOTOR AND LINK
(a) Remove the windshield wiper motor and link Removal.
2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY Removal
3. REMOVE COOL AIR INTAKE DUCT SEAL Removal
4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY Removal
7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY Removal
9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal
10. REMOVE AIR CLEANER BRACKET

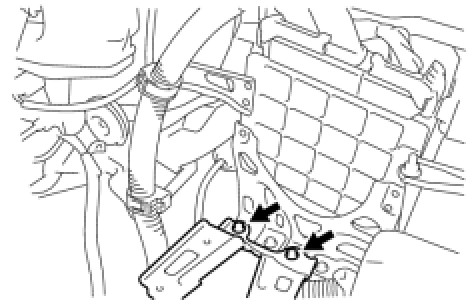

(a) Remove the 2 bolts and air cleaner bracket.
11. REMOVE ECM

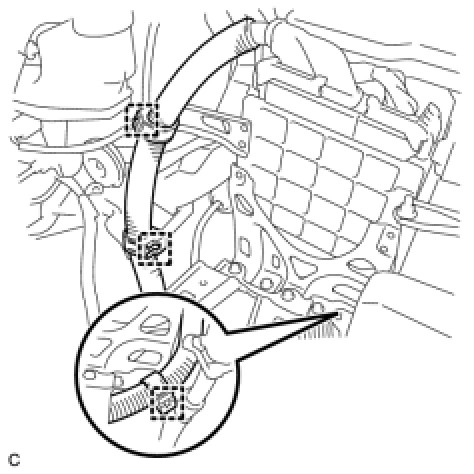

(a) Separate the 3 wire harness clamps.

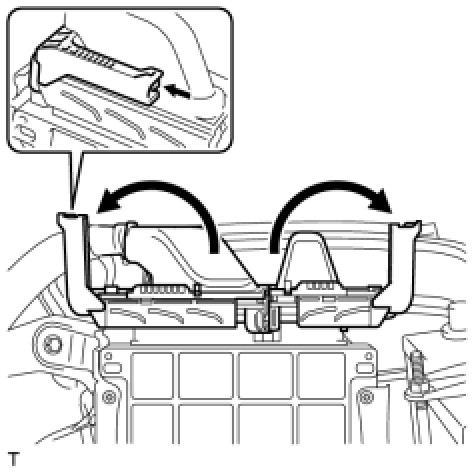

(b) Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.
NOTICE: After disconnecting each connector, make sure that dirt, water or other foreign matter does not contact the connecting part of the connector.

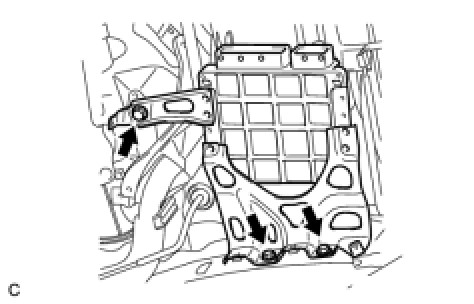

(c) Remove the 3 bolts and the ECM with bracket.

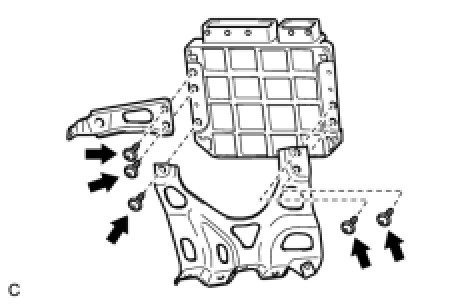

(d) Remove the 5 screws and the ECM bracket.
