Seat Belt Systems: Locations

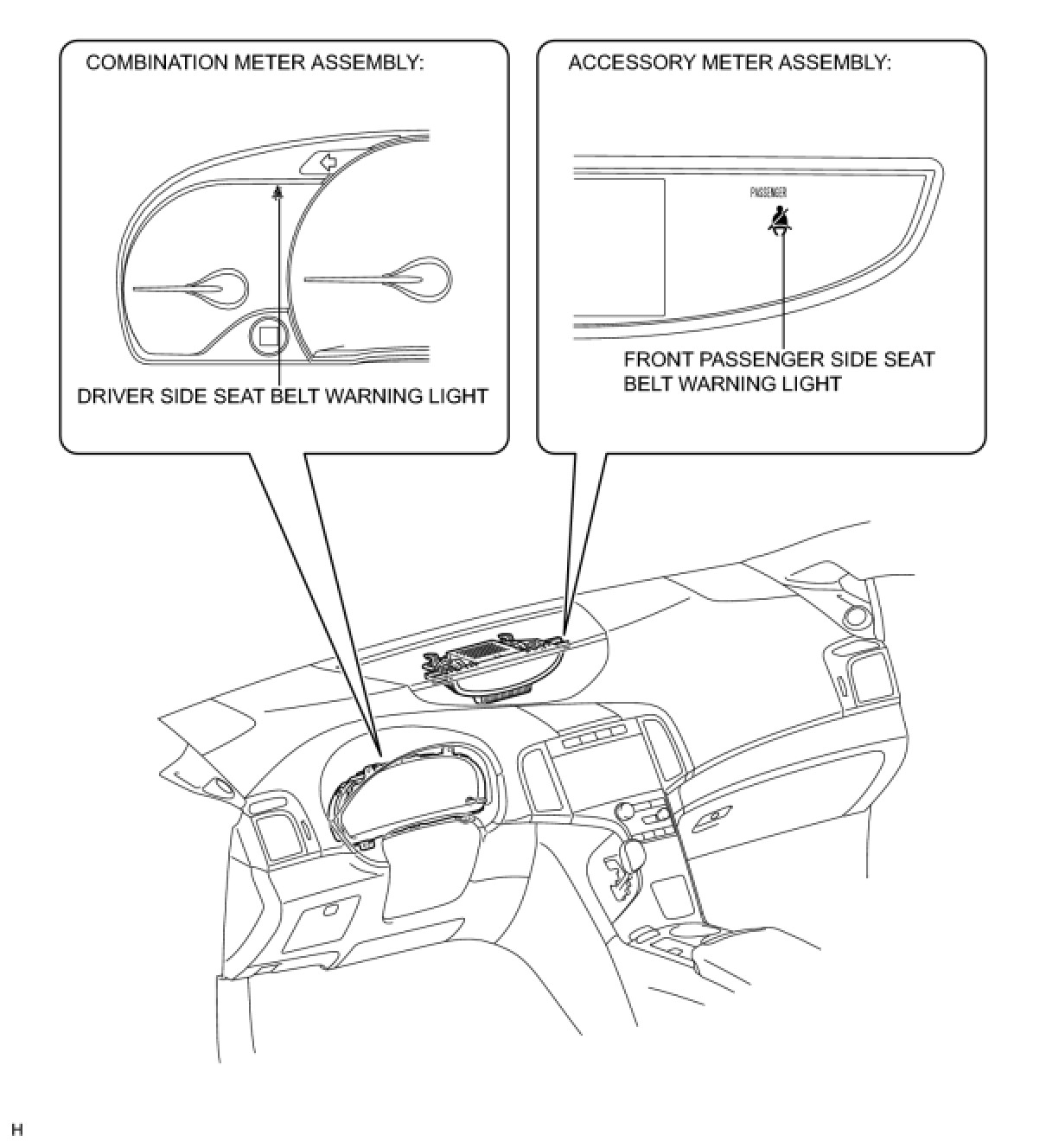

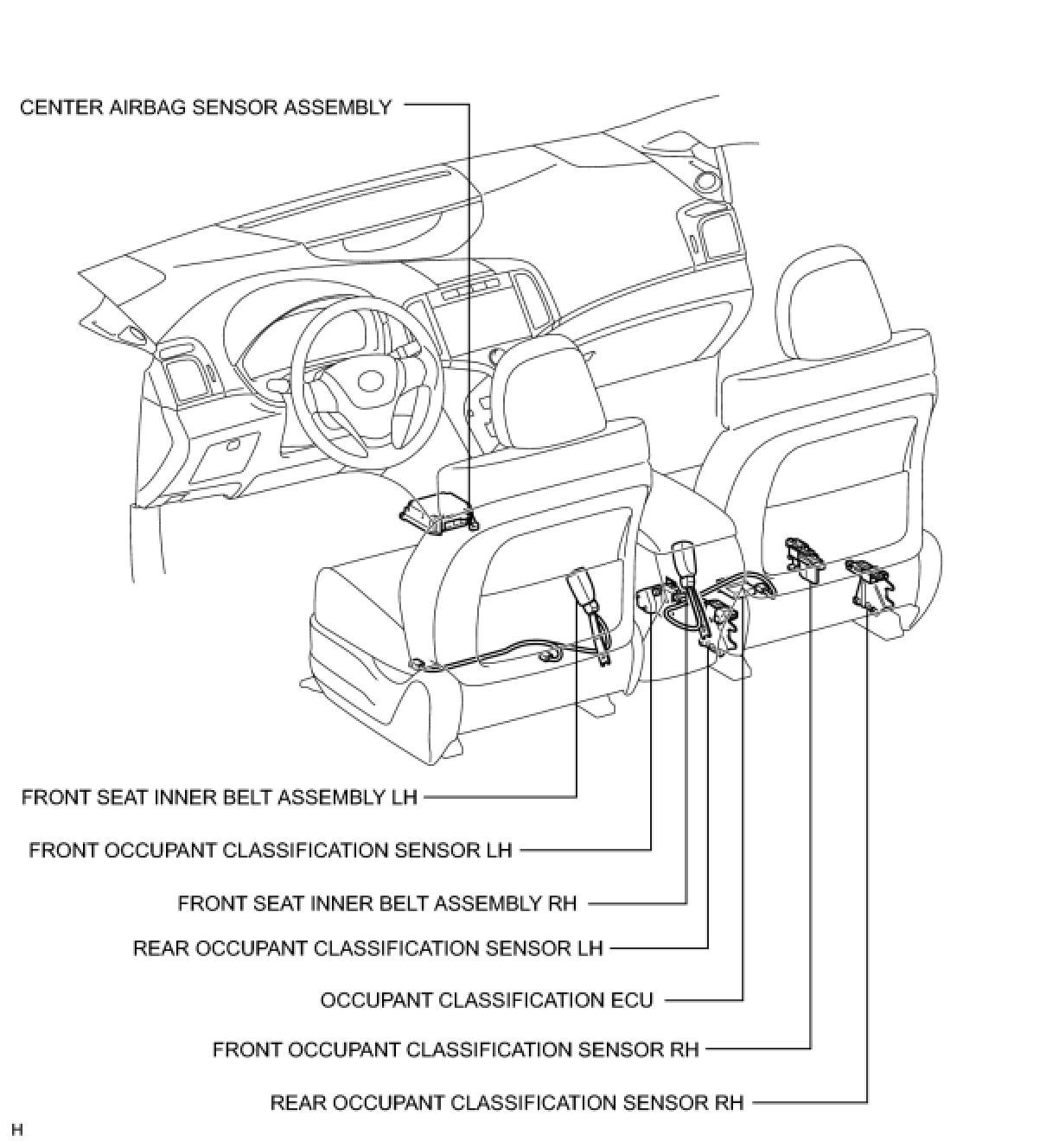

SEAT BELT: SEAT BELT WARNING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
