Ignition Switch

1AR-FE STARTING: IGNITION SWITCH: INSPECTION

INSPECTION

1. INSPECT IGNITION SWITCH

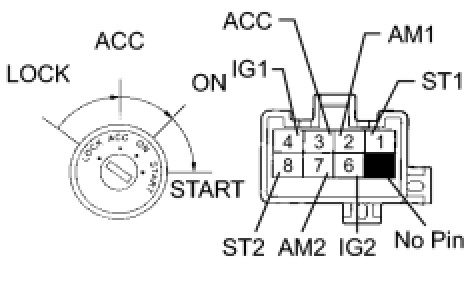

(a) Measure the switch resistance.

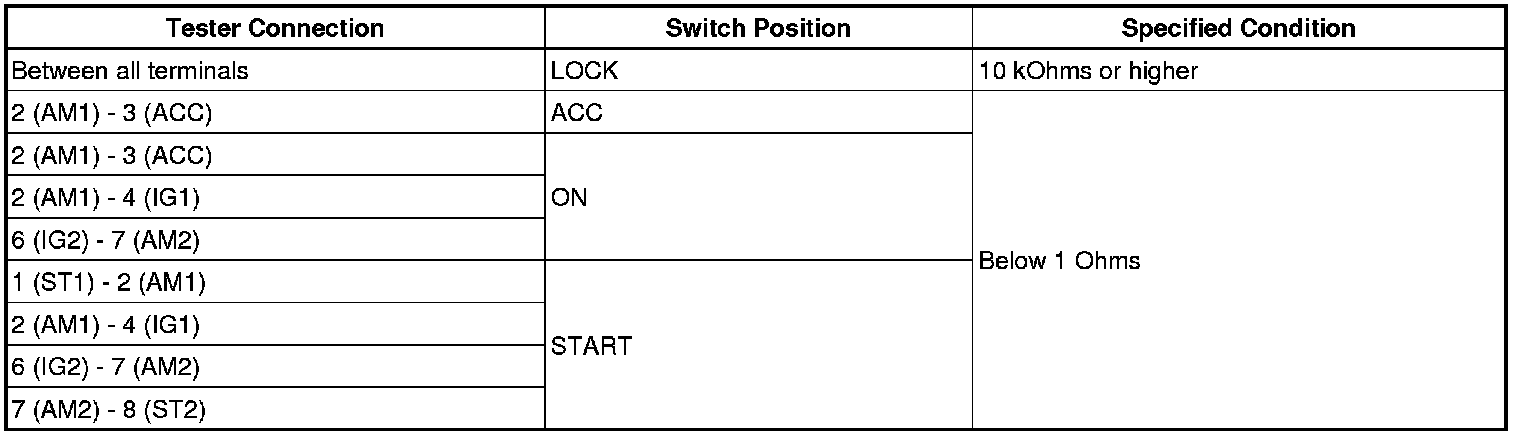

Standard Resistance:





If the result is not as specified, replace the switch assembly.
