Service Data

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

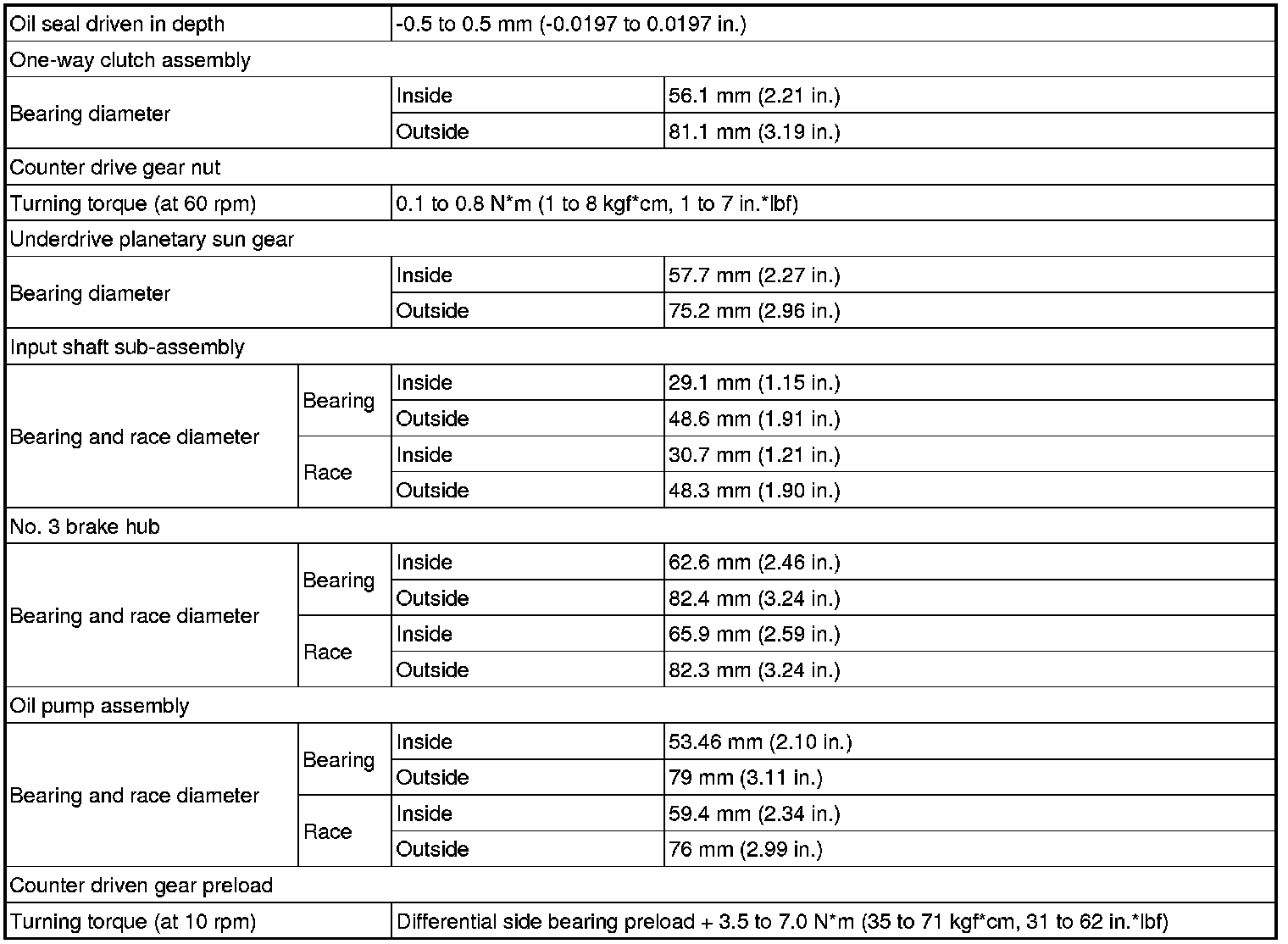

SERVICE DATA

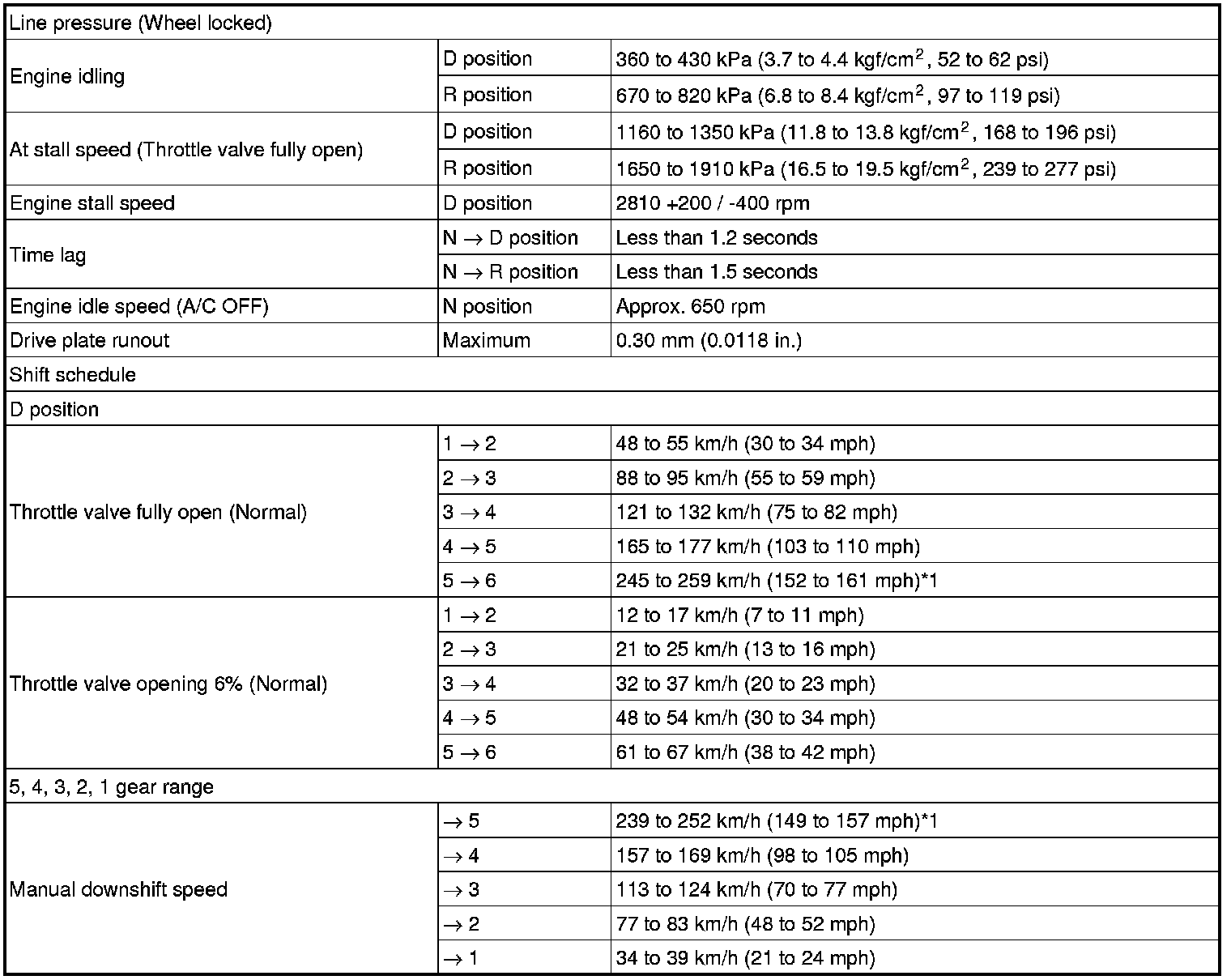

*1: Speed limiter active

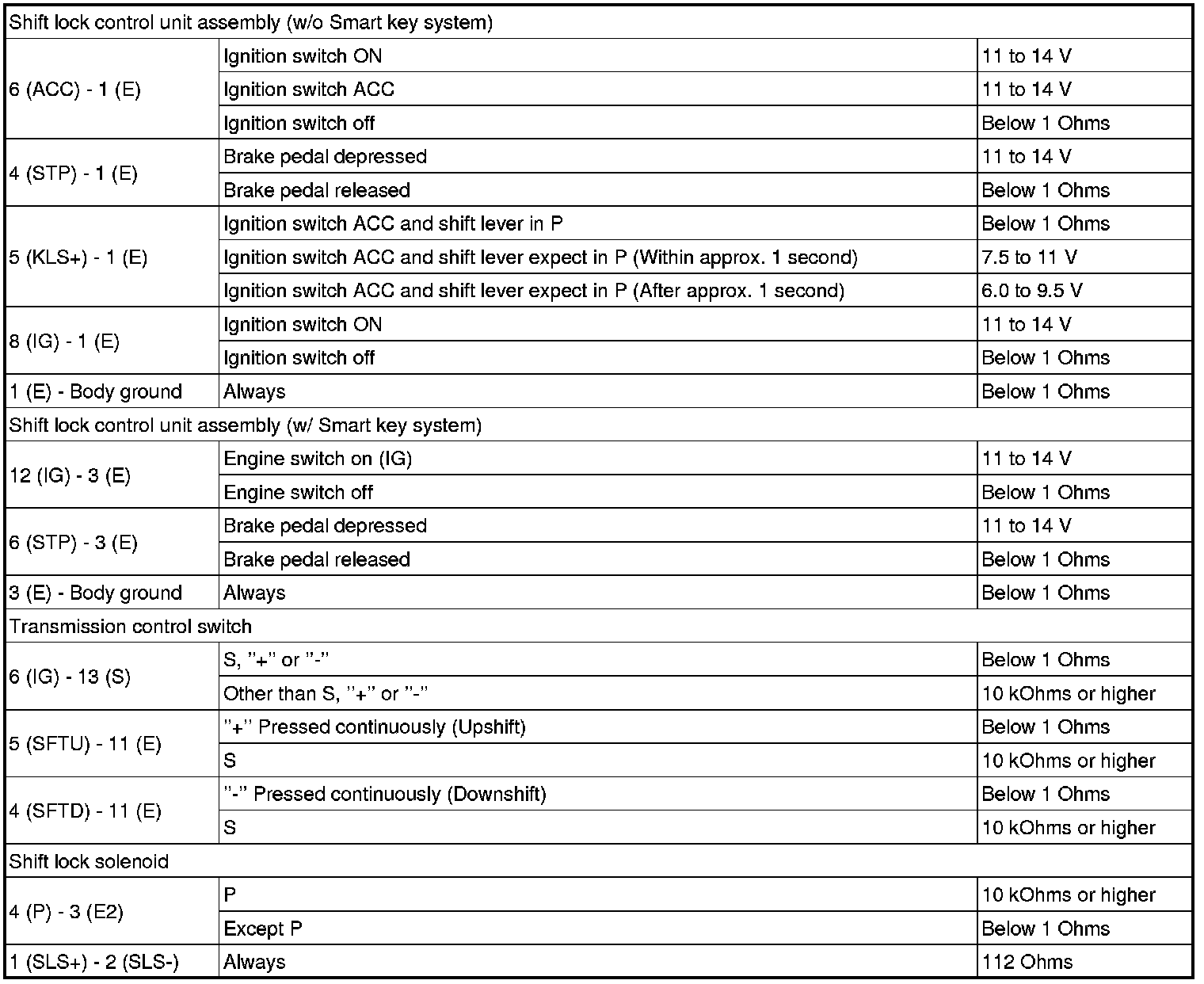

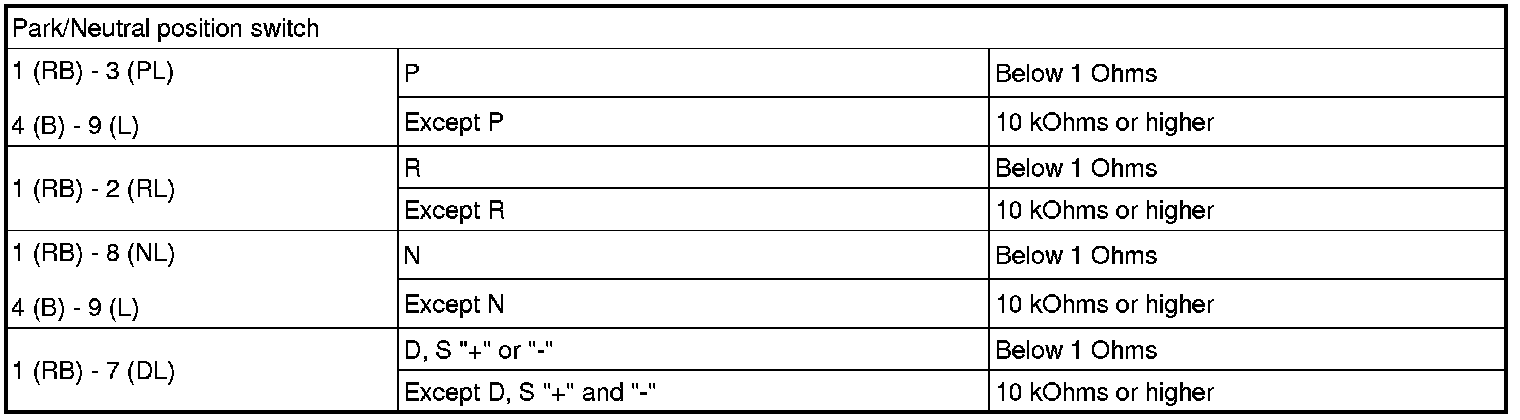

Park/Neutral Position Switch





Shift Lever

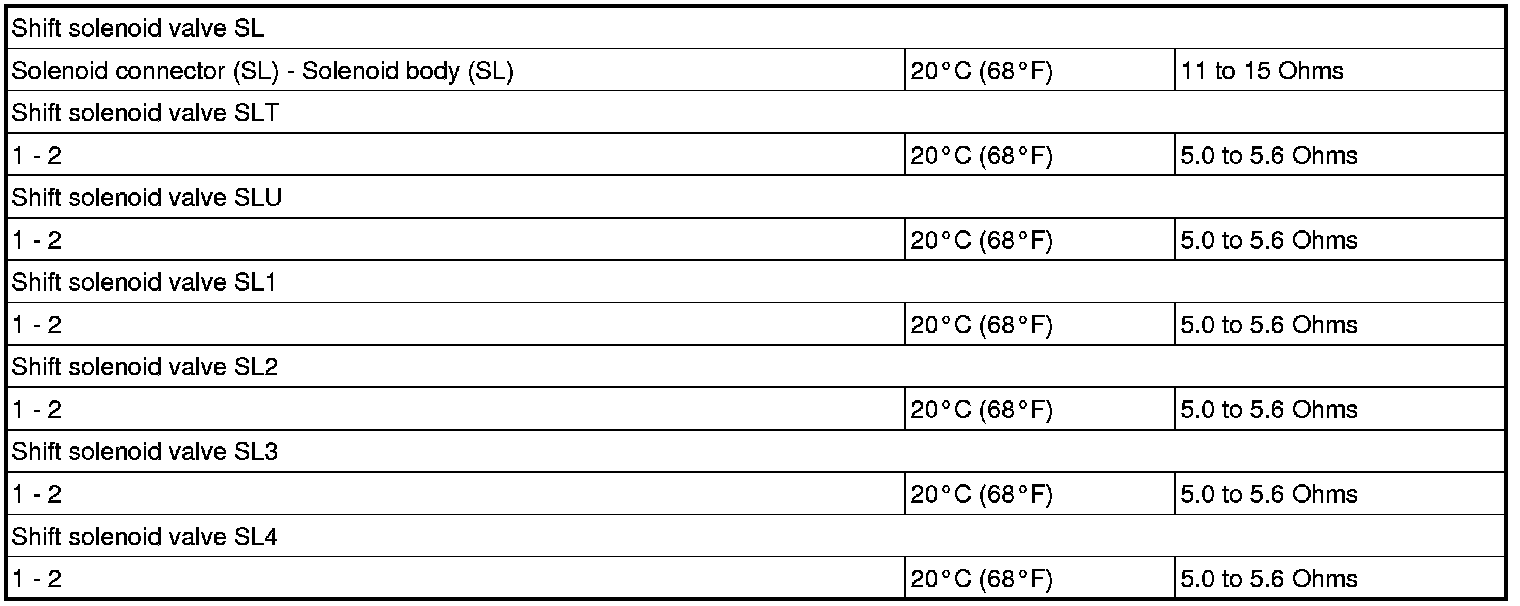

Shift Solenoid Valve

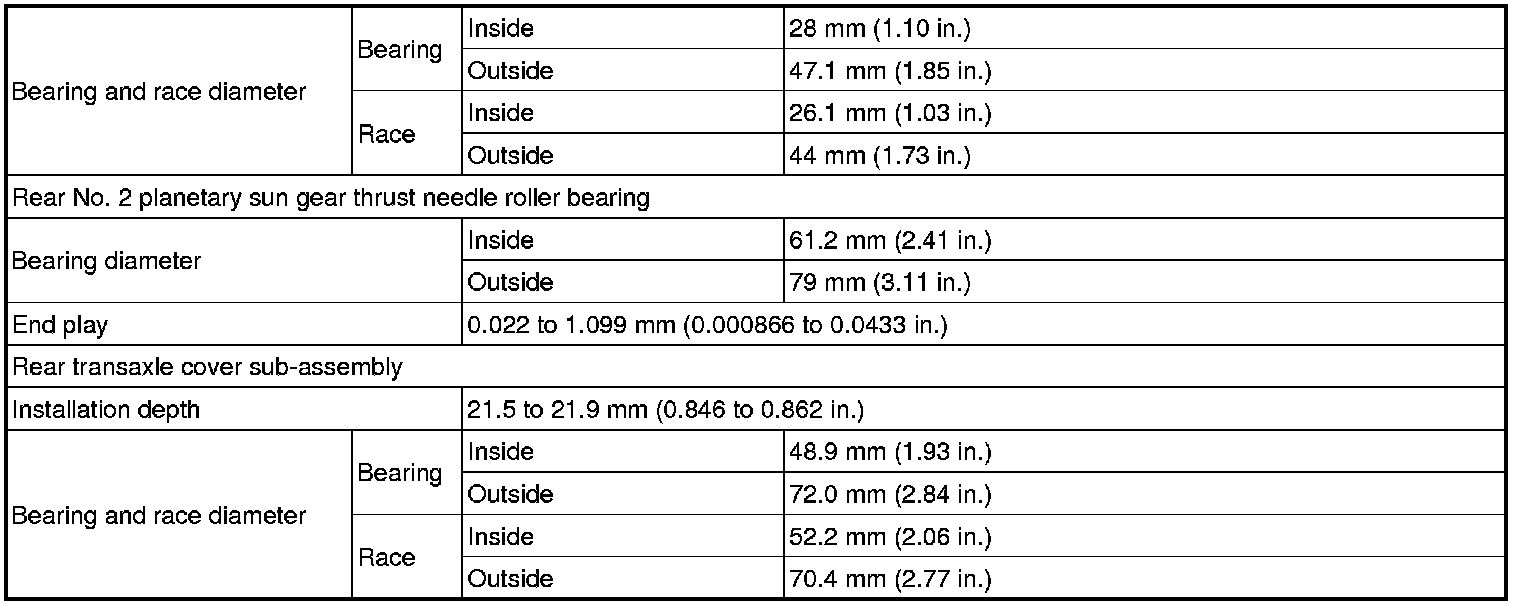

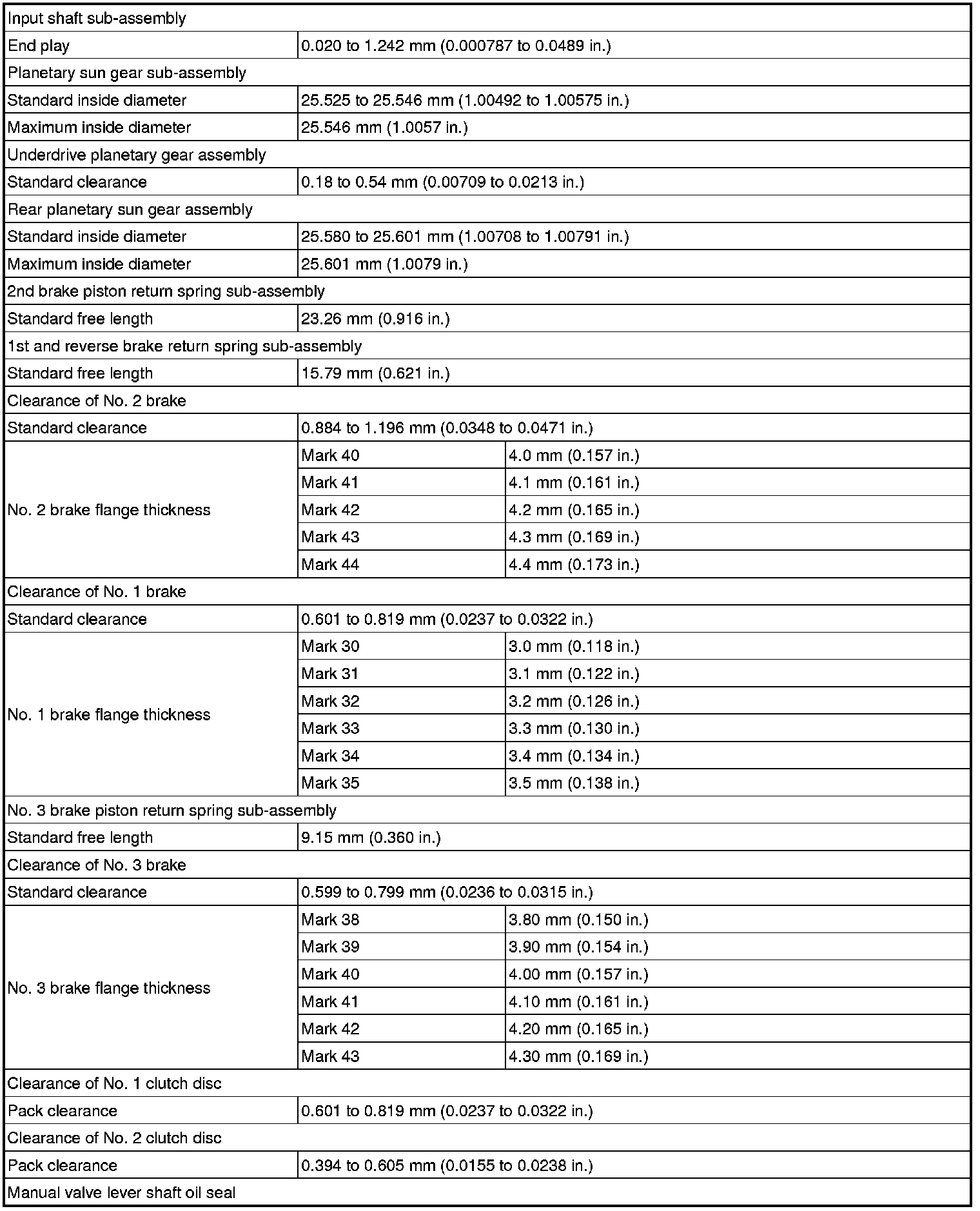

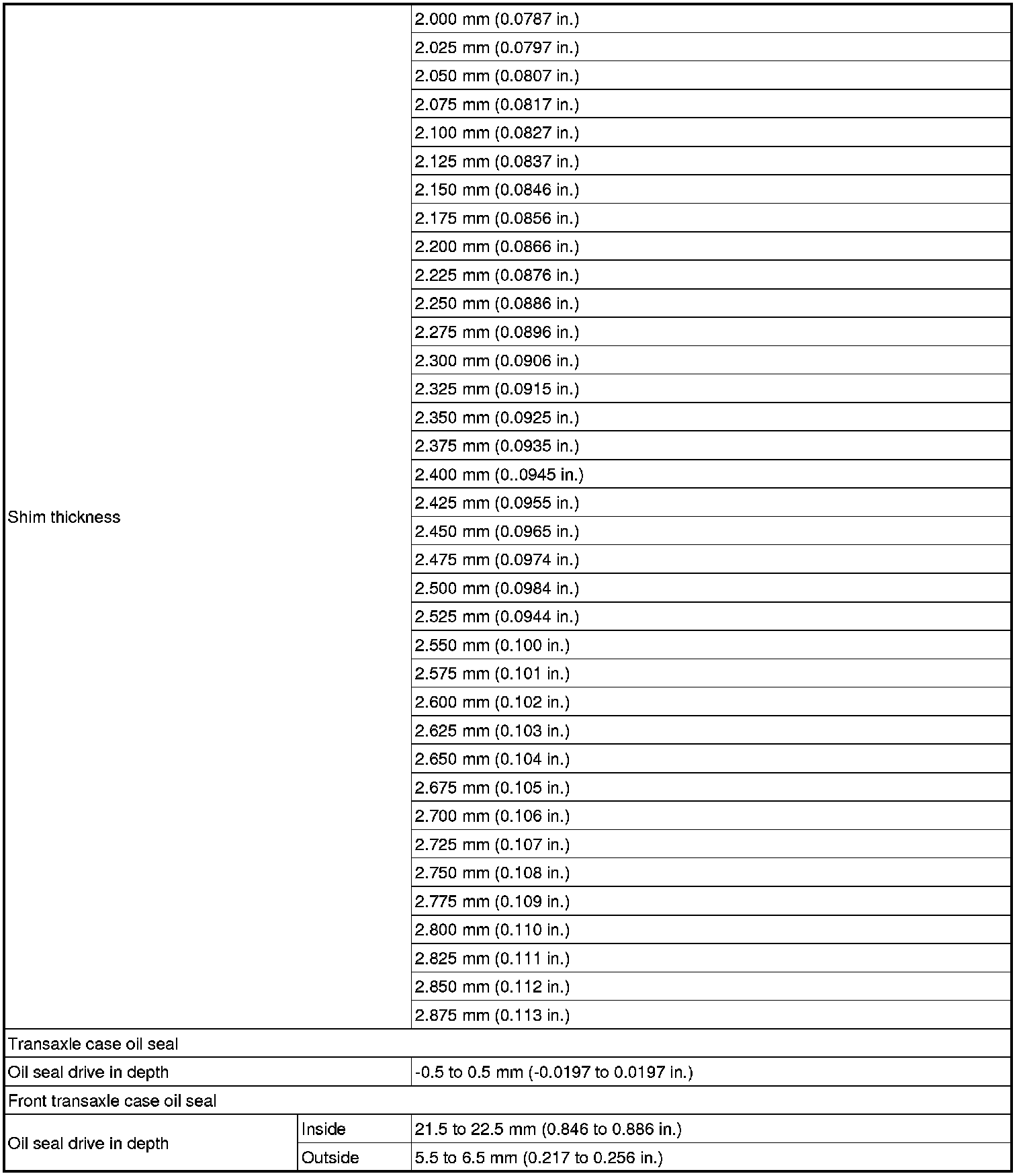

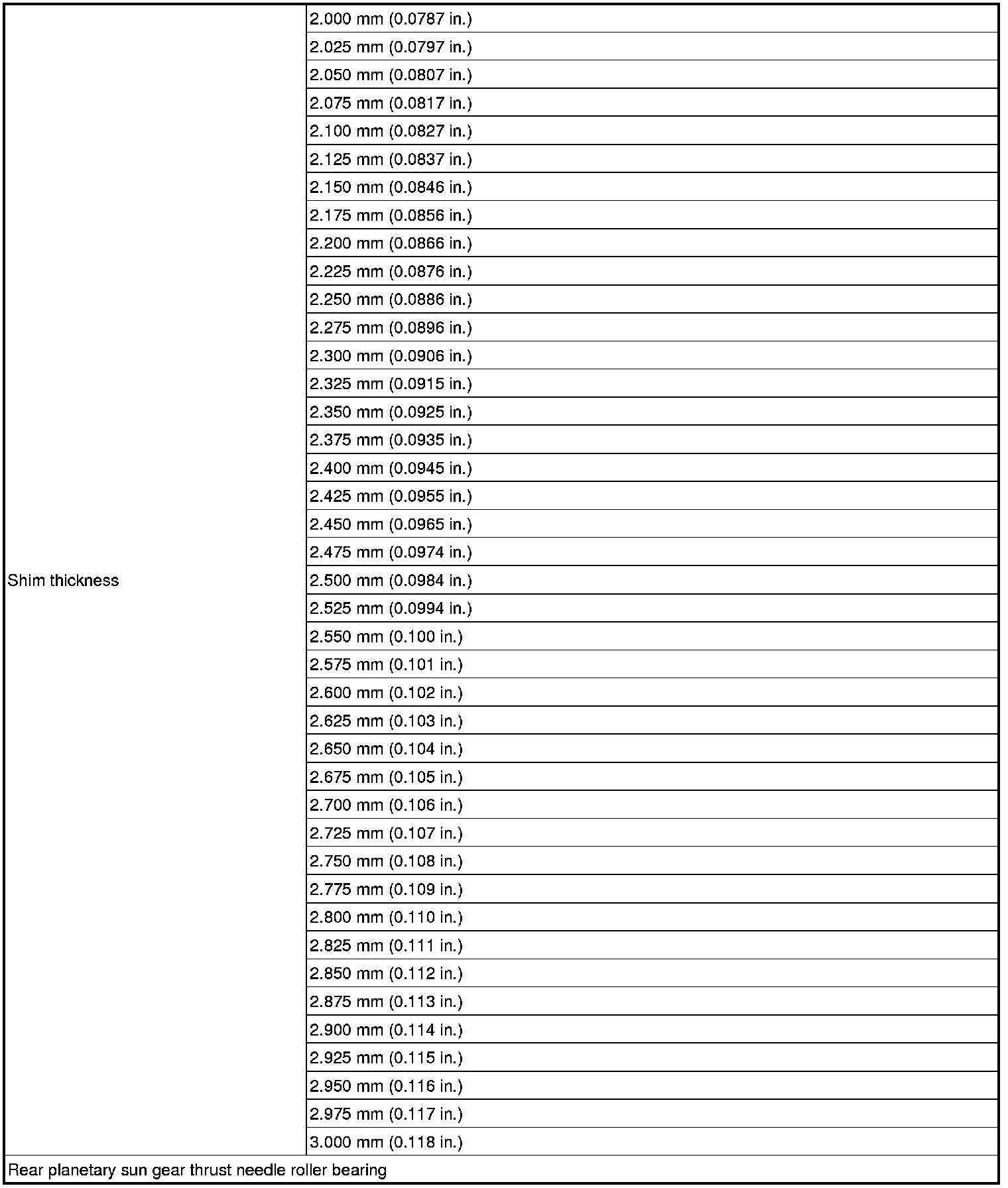

Automatic Transaxle Unit

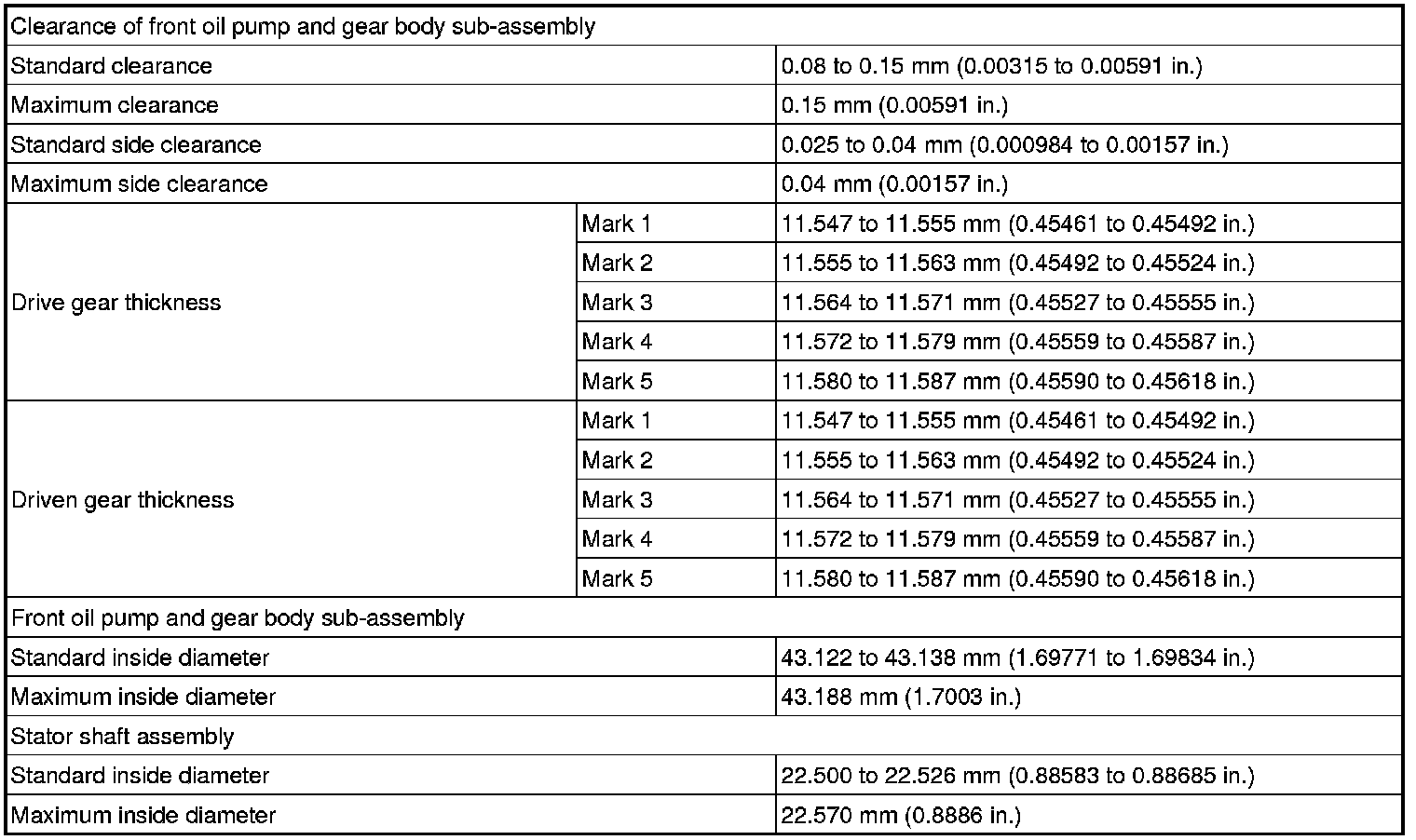

Oil Pump

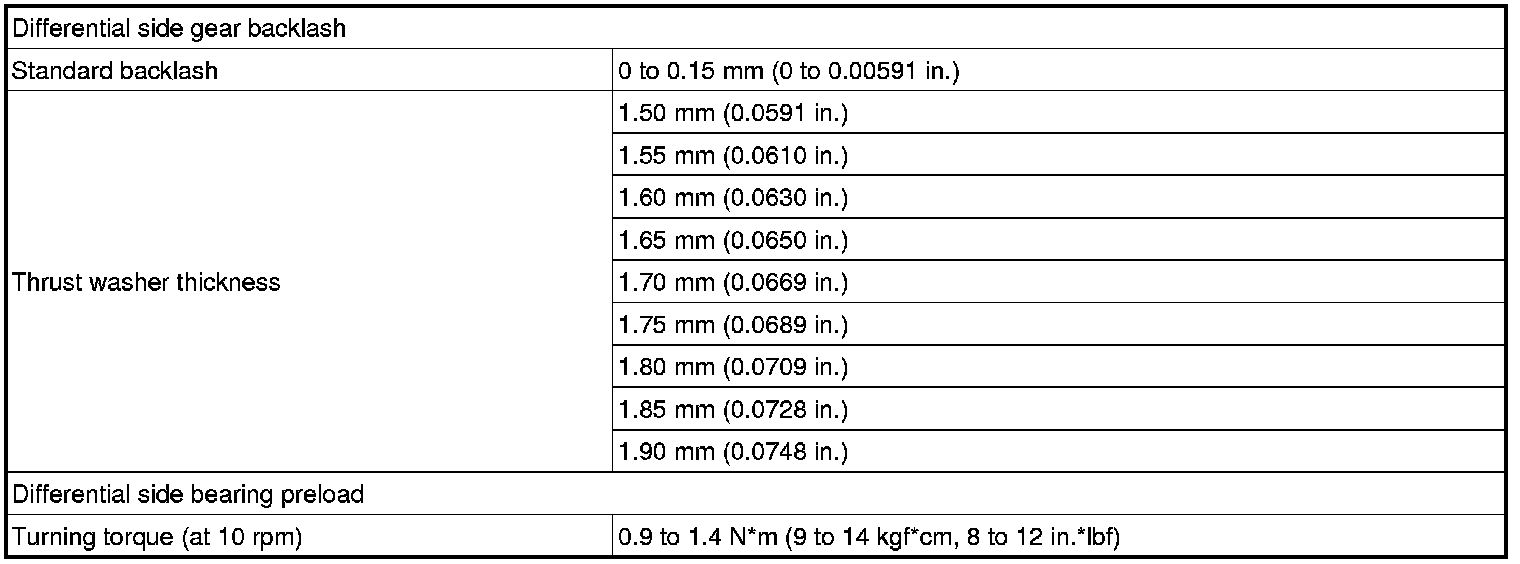

Differential Case
