Starting System: Description and Operation

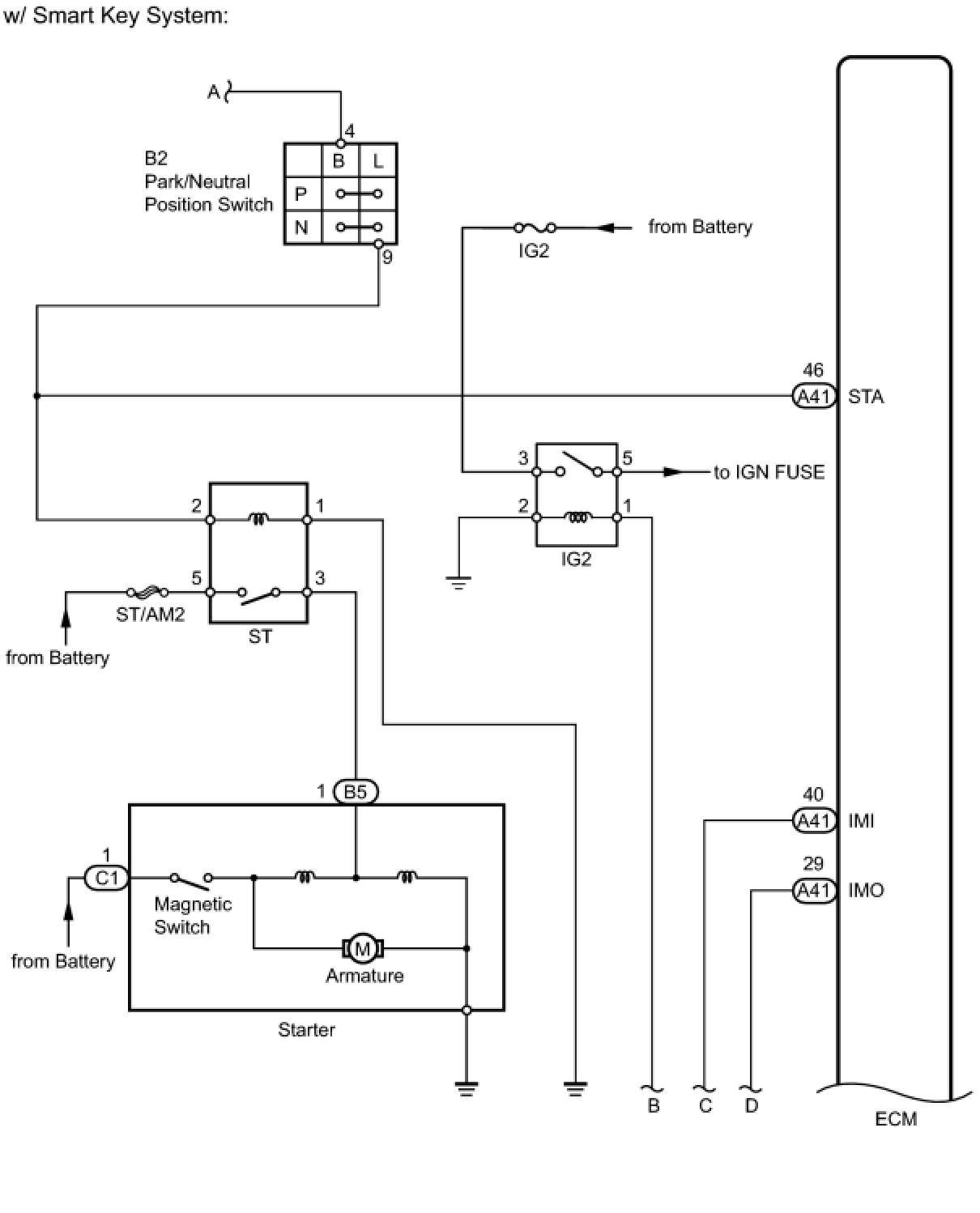

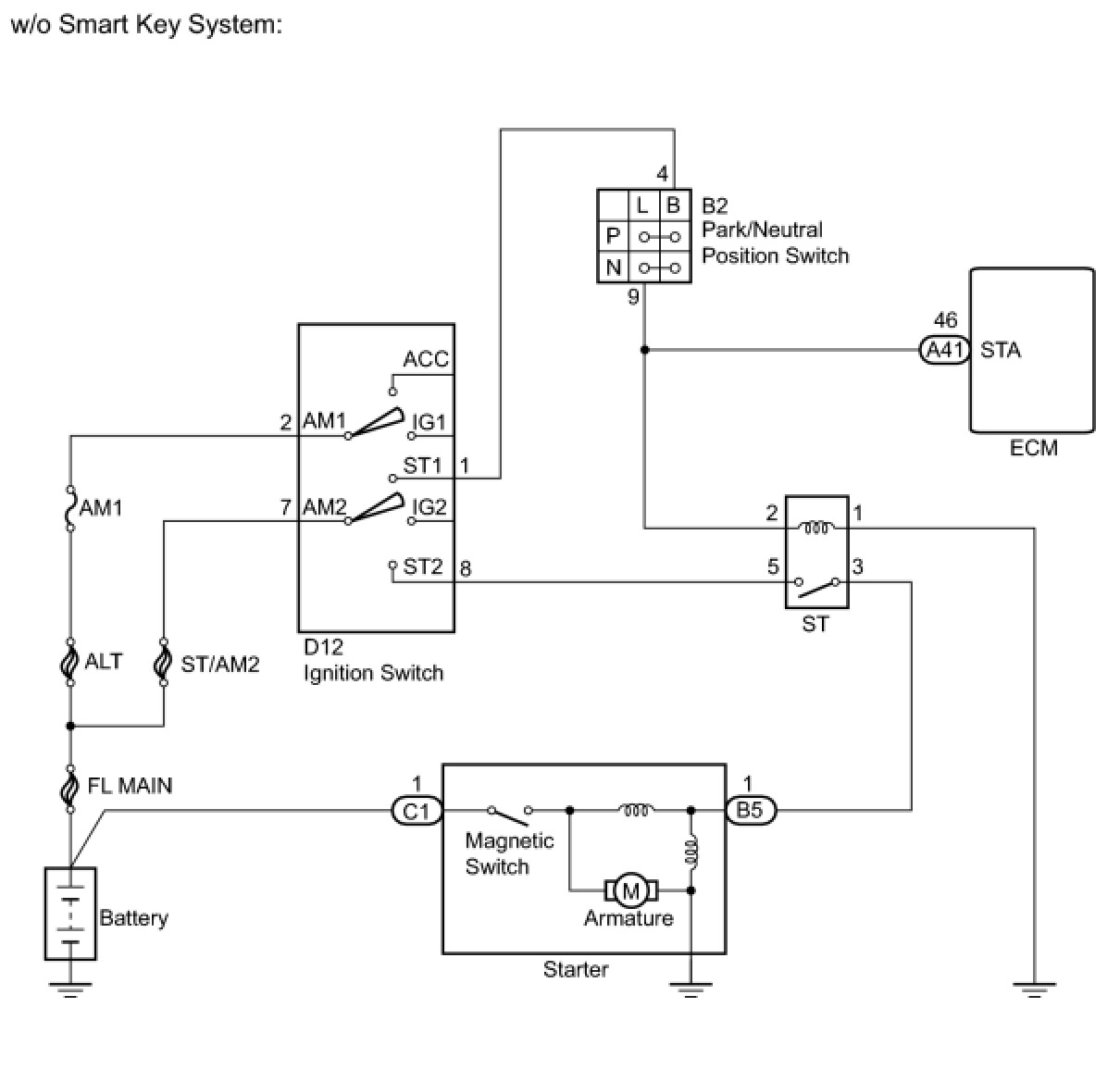

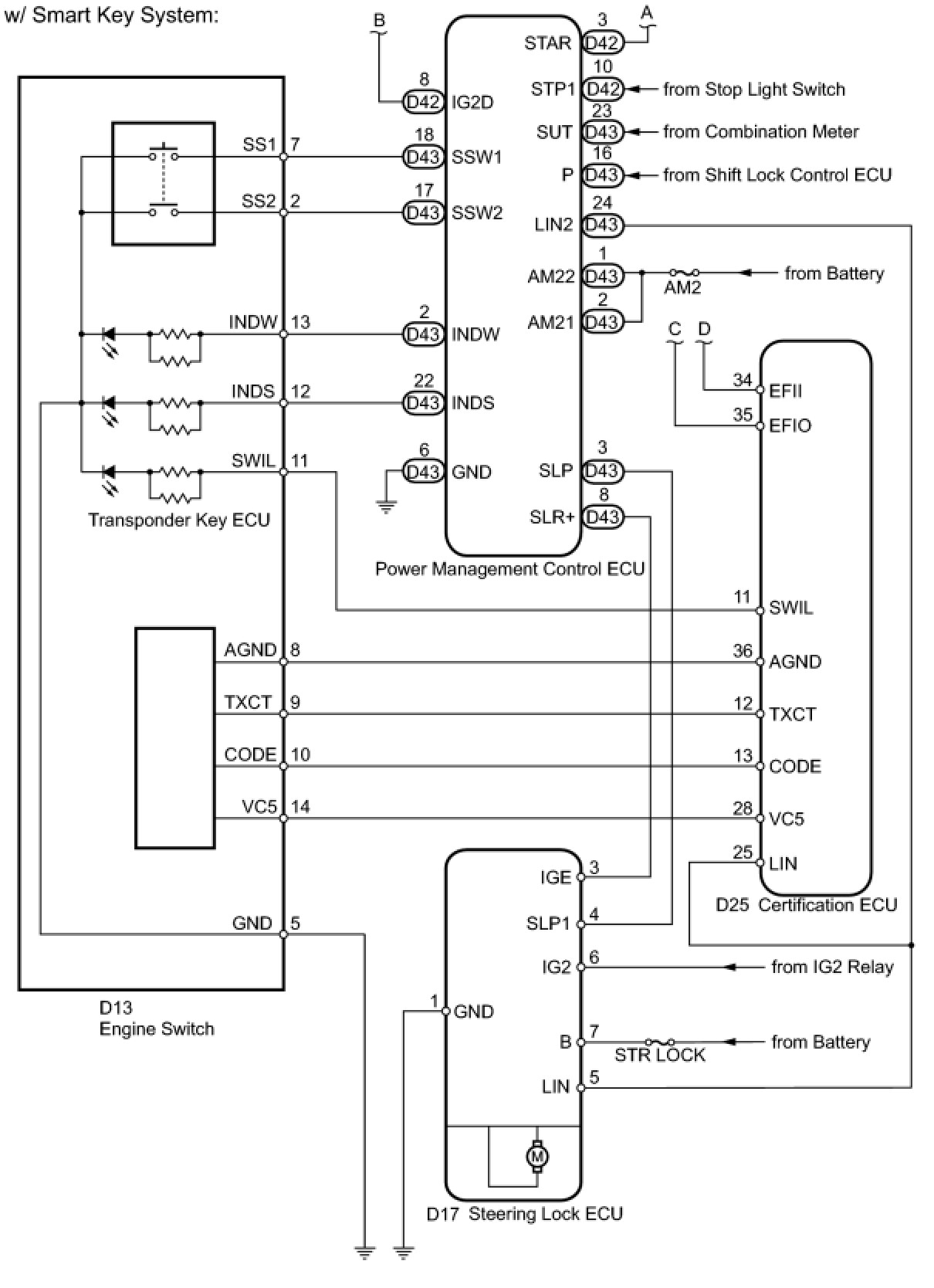

1AR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
