Components

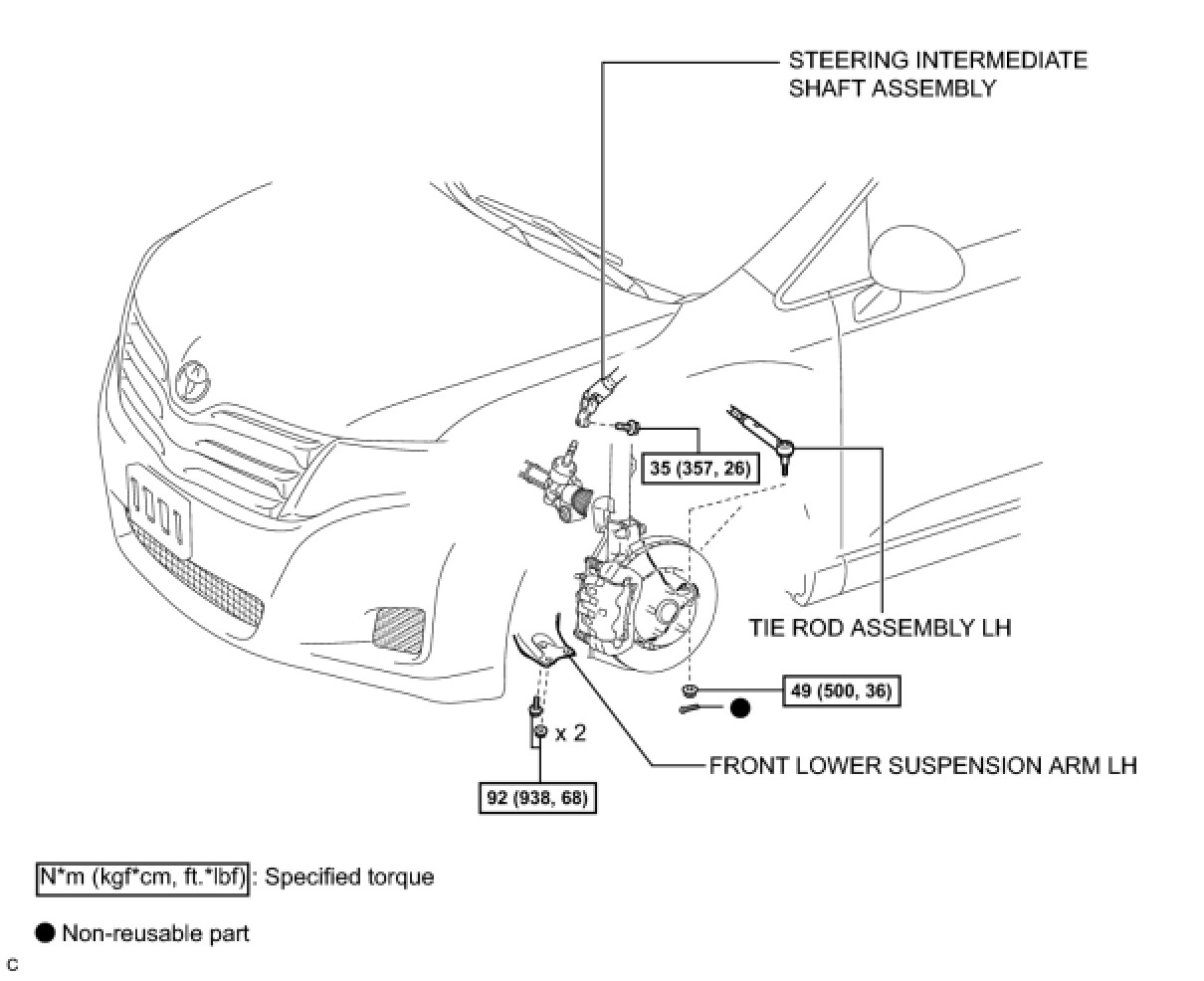

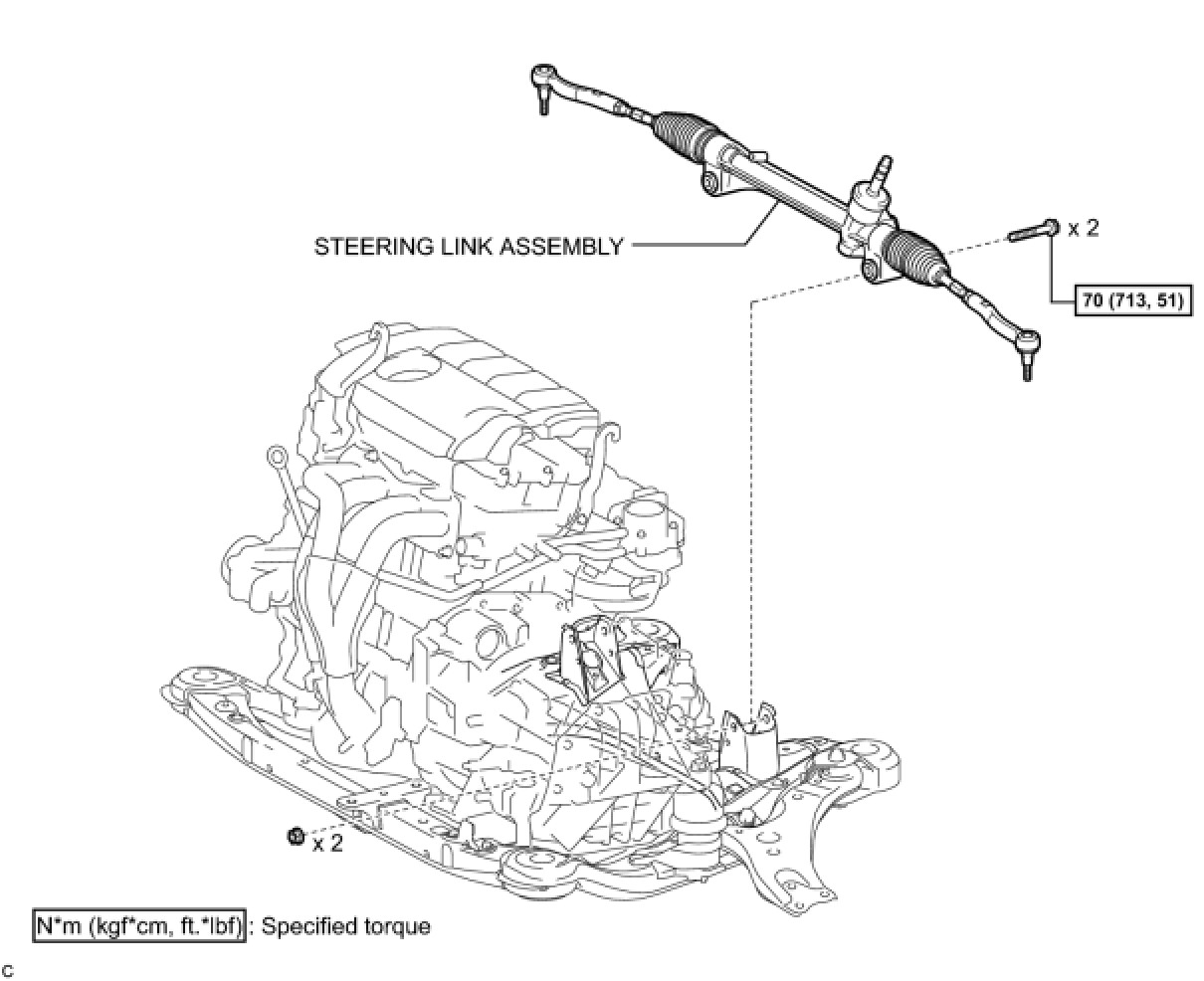

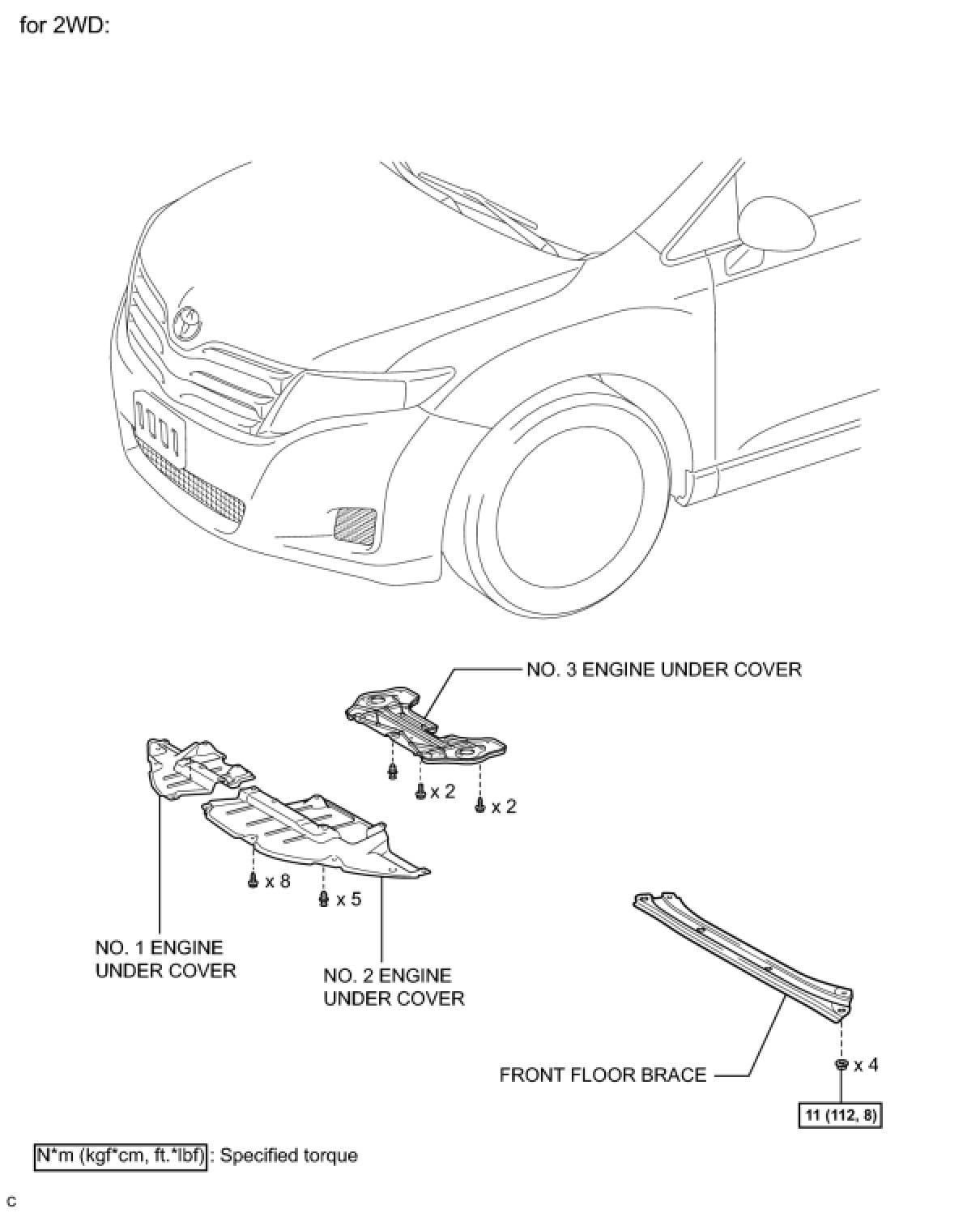

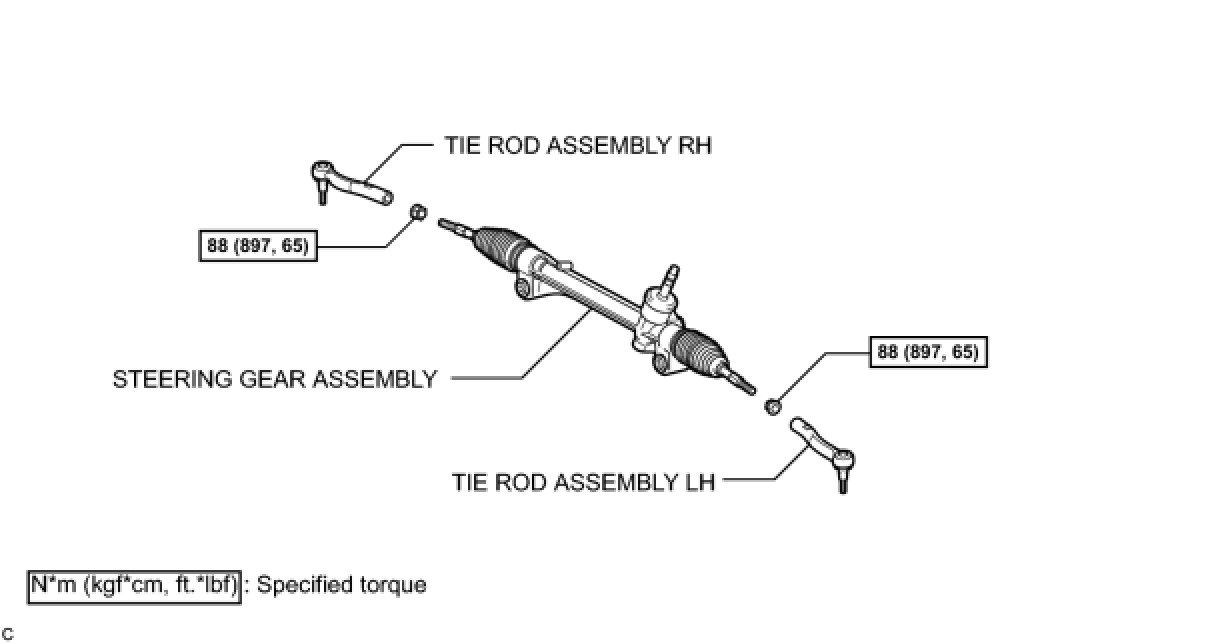

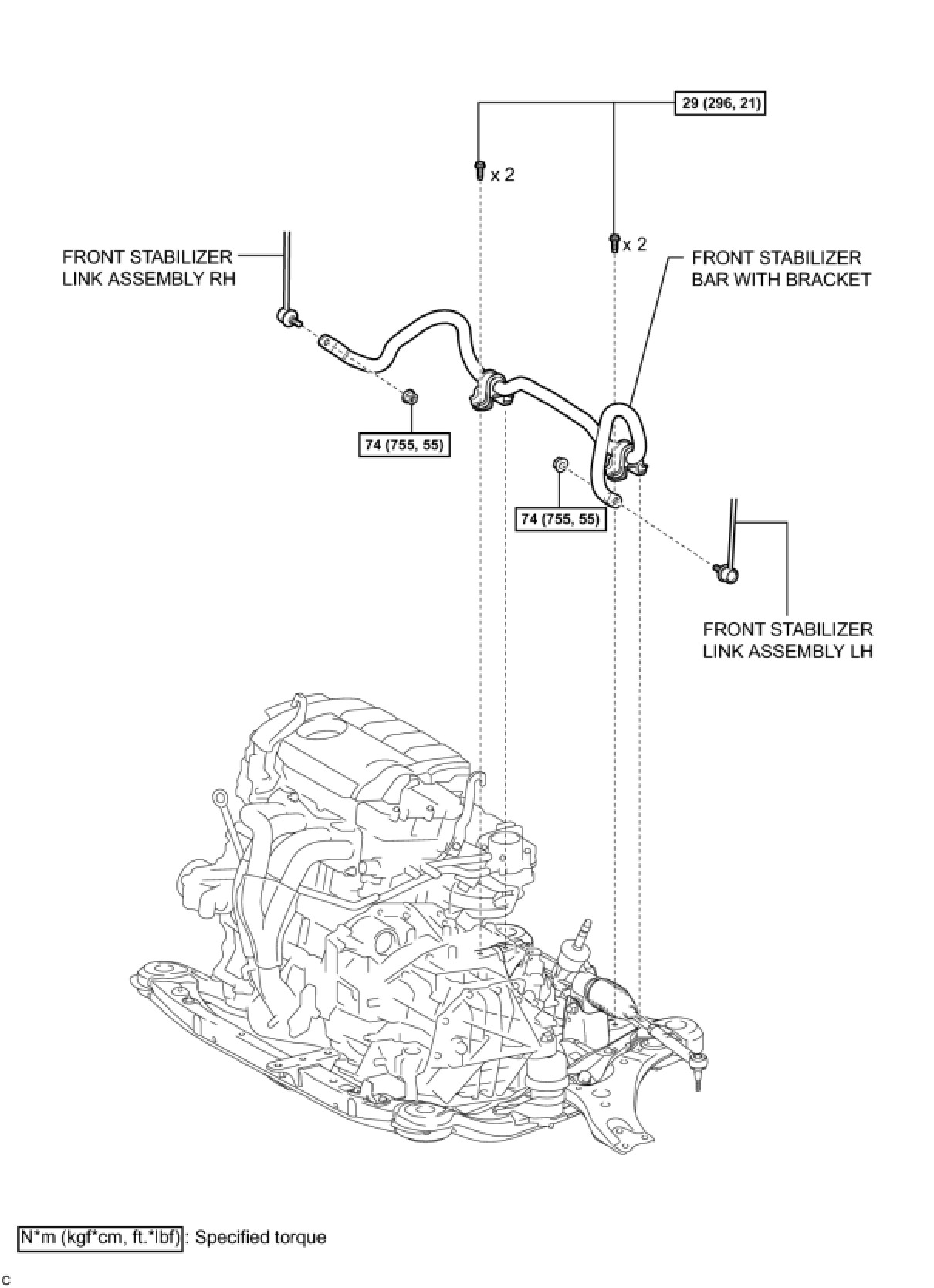

STEERING GEAR / LINKAGE: STEERING GEAR (for 1AR-FE): COMPONENTS

COMPONENTS

ILLUSTRATION
