Diesel Data: Automotive Repair
Home >> Toyota >> 2009 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Removal and Replacement >> Components

Components

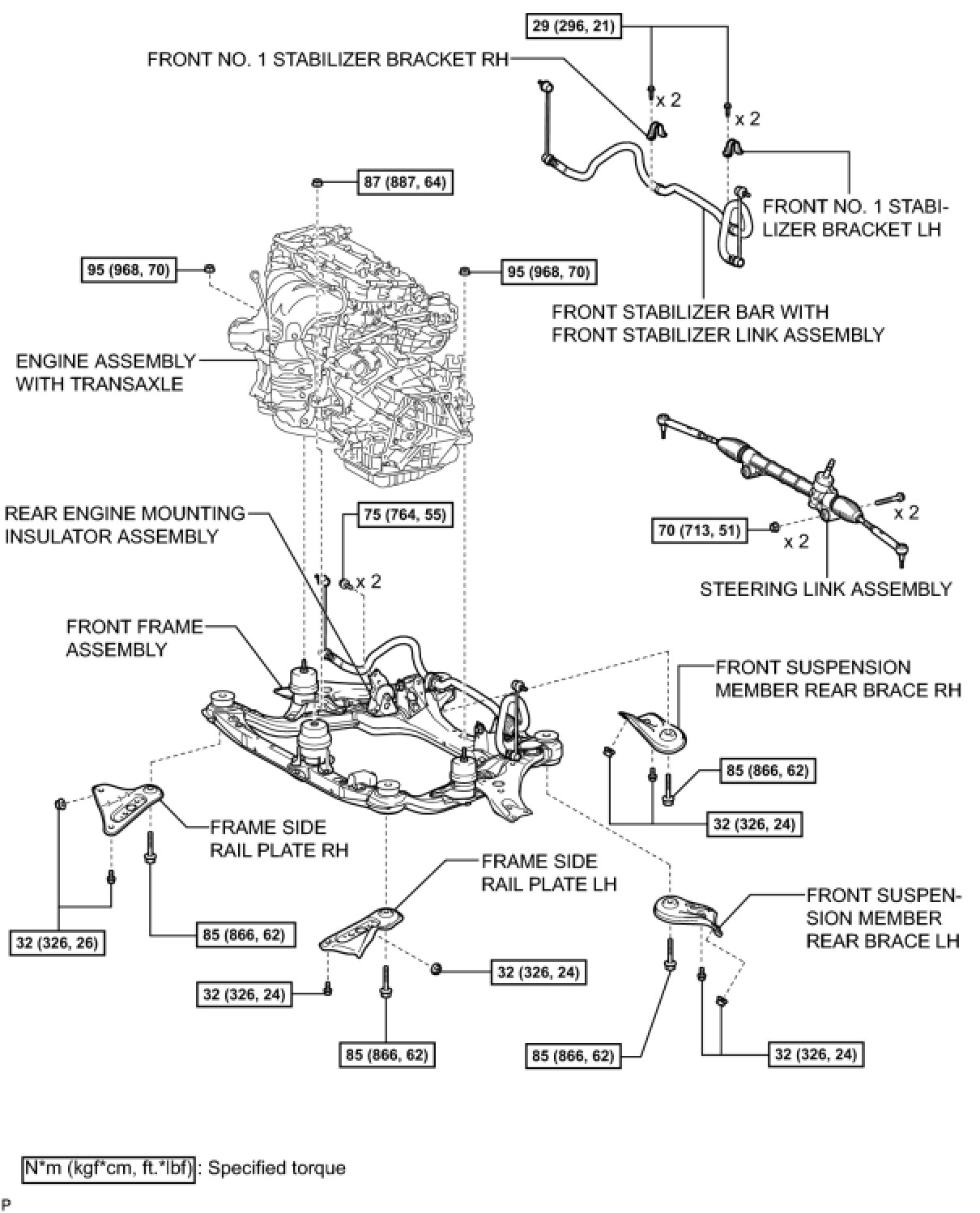

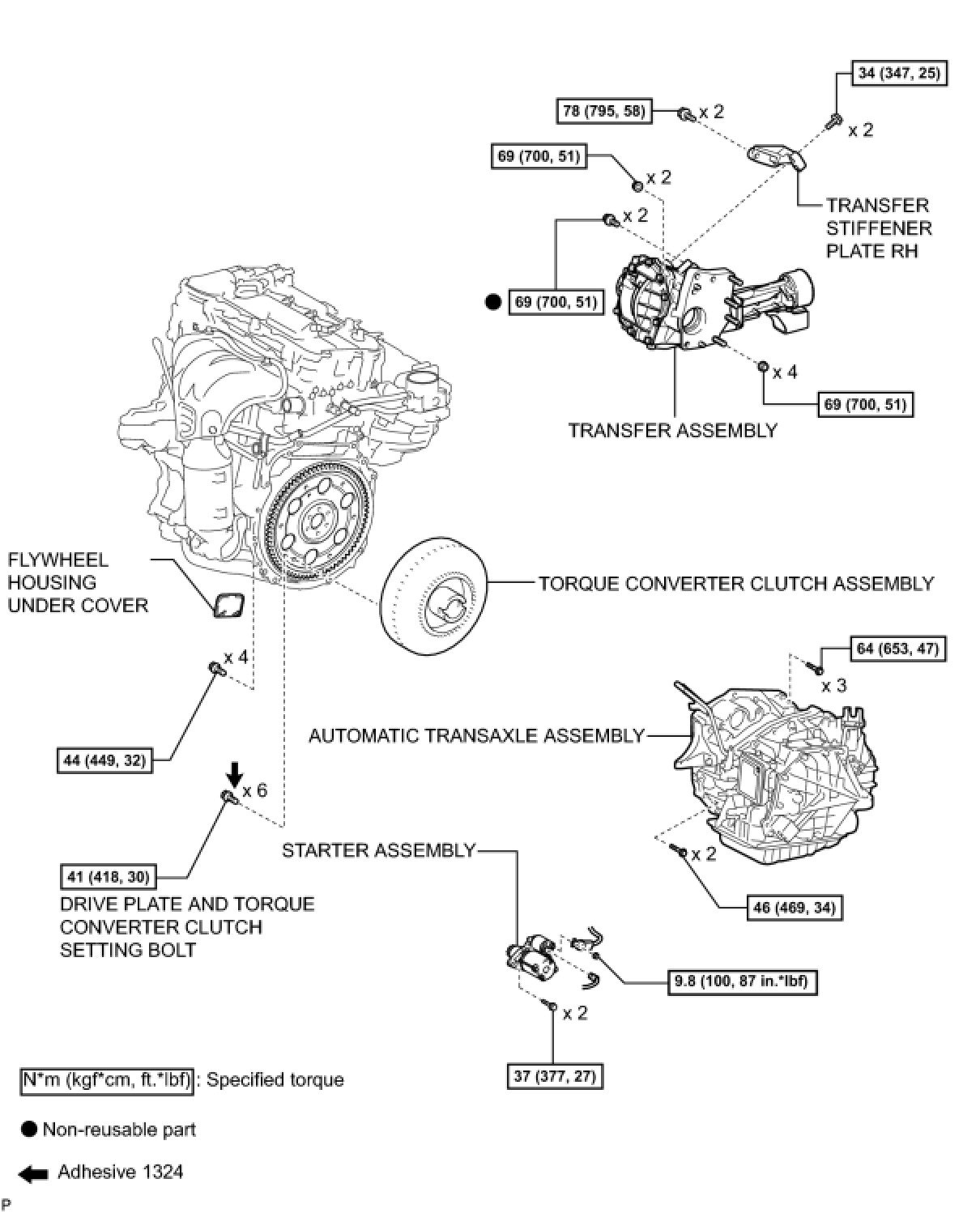

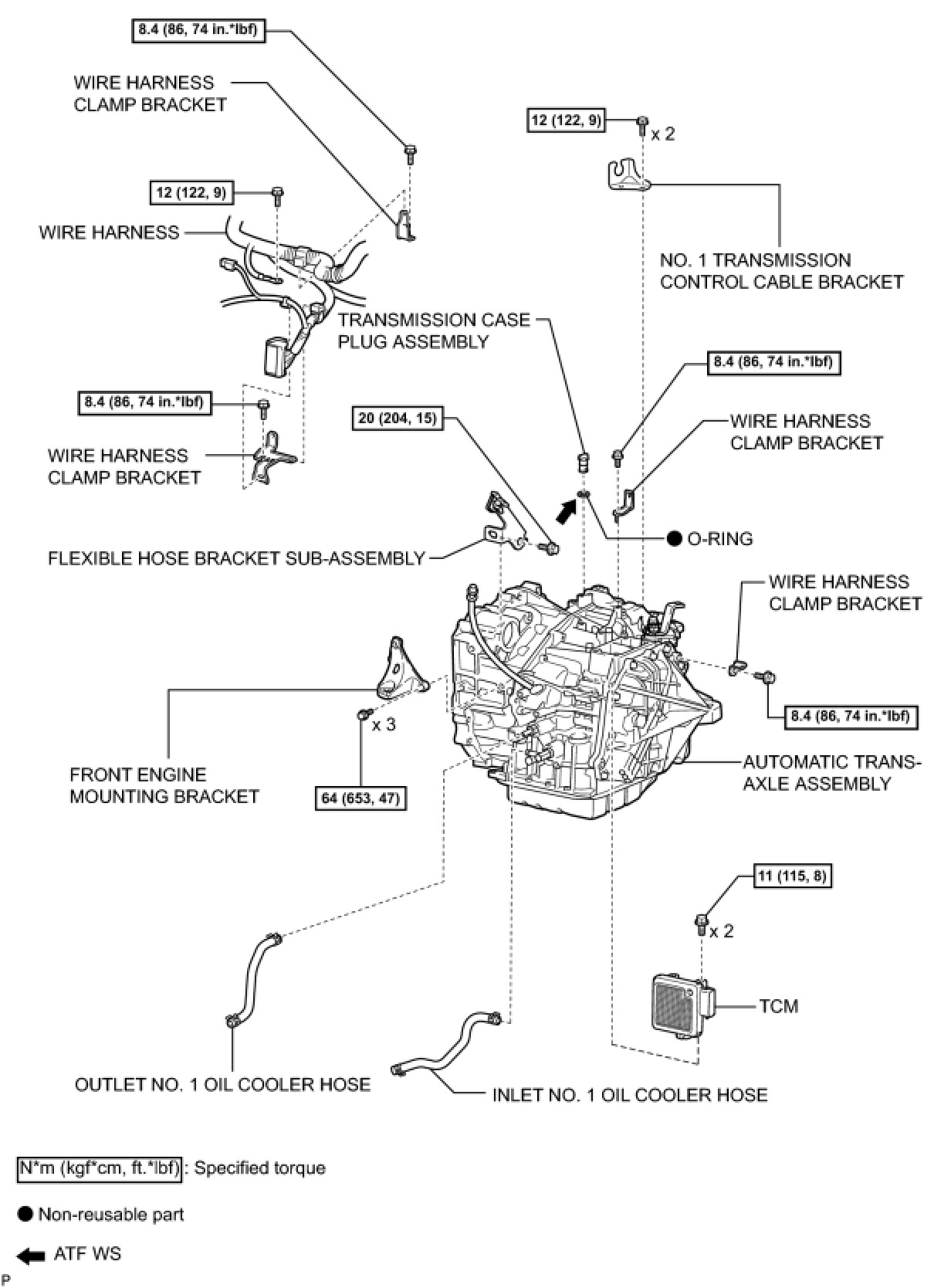

U760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE ASSEMBLY: COMPONENTS

COMPONENTS

ILLUSTRATION
