NAVIGATION / MULTI INFO DISPLAY: NAVIGATION ANTENNA: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
HINT: Refer to the procedure up to Remove Instrument Panel Safety Pad Assembly Removal.

2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT Disassembly
3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT Disassembly
4. REMOVE DEFROSTER NOZZLE ASSEMBLY Disassembly
5. REMOVE HEATER TO REGISTER DUCT Disassembly
6. REMOVE NAVIGATION ANTENNA ASSEMBLY

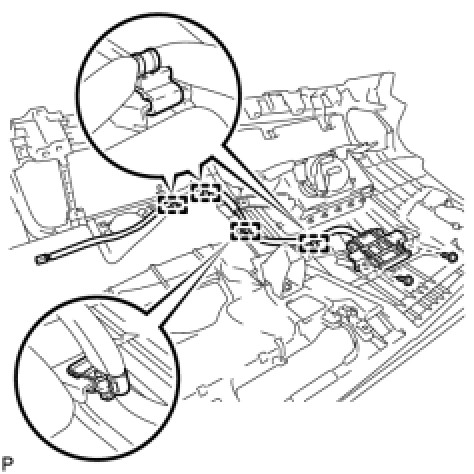

(a) Disengage the 4 clamps.
(b) Remove the 2 screws and the navigation antenna assembly.
