Diesel Data: Automotive Repair
Home >> Toyota >> 2009 >> Venza AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Front Seat Assembly (for Power Seat) >> Components

Components

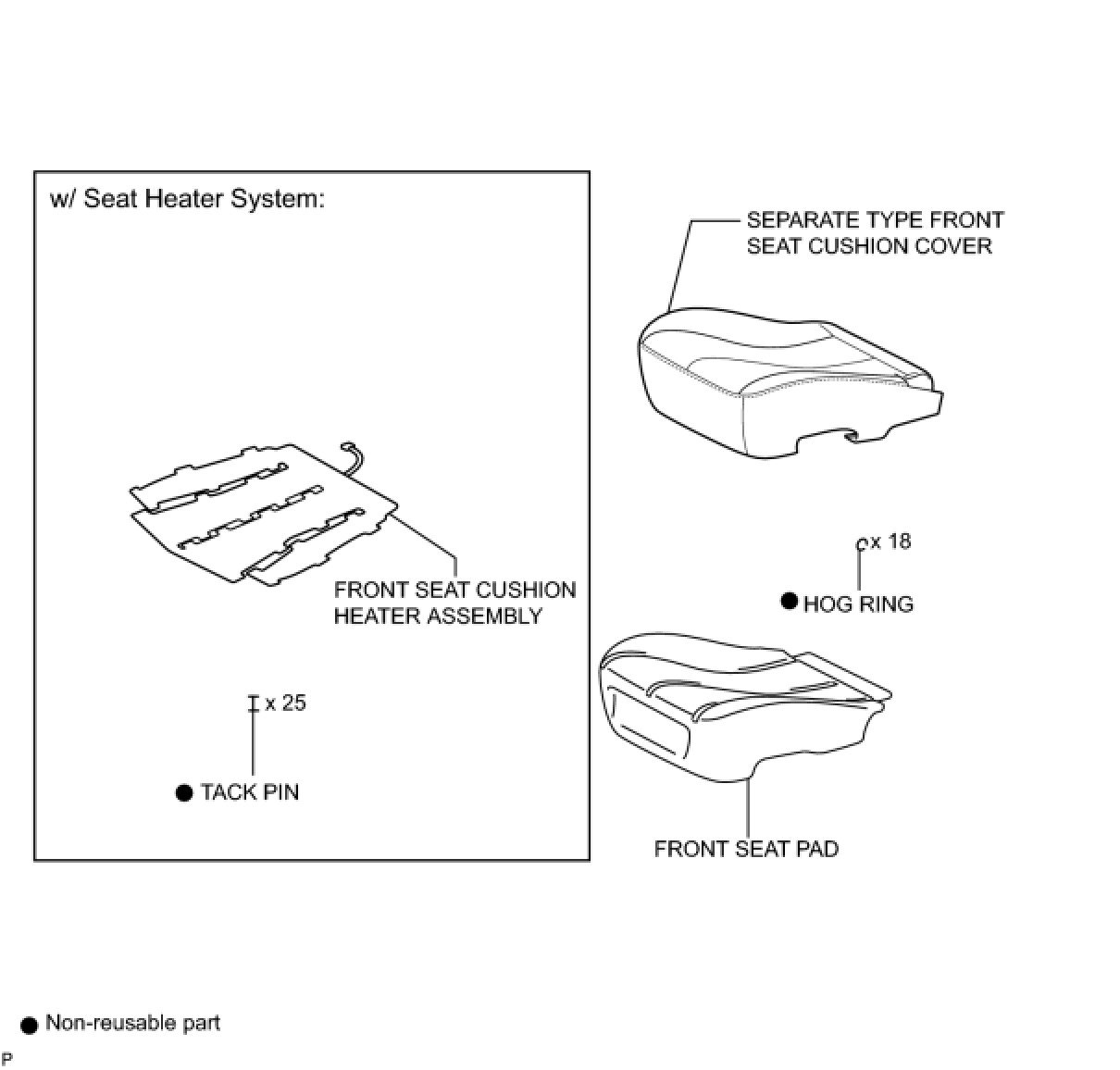

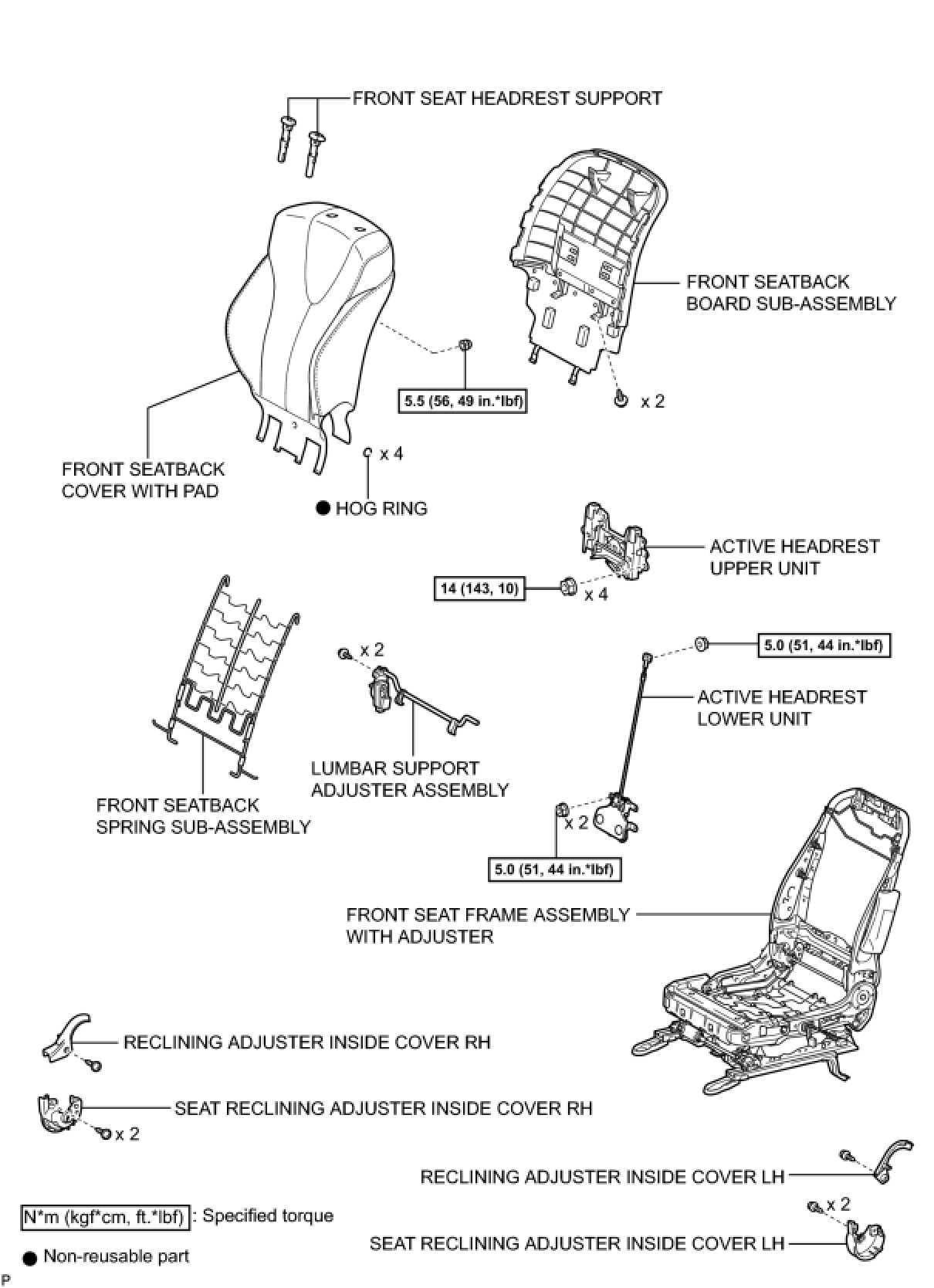

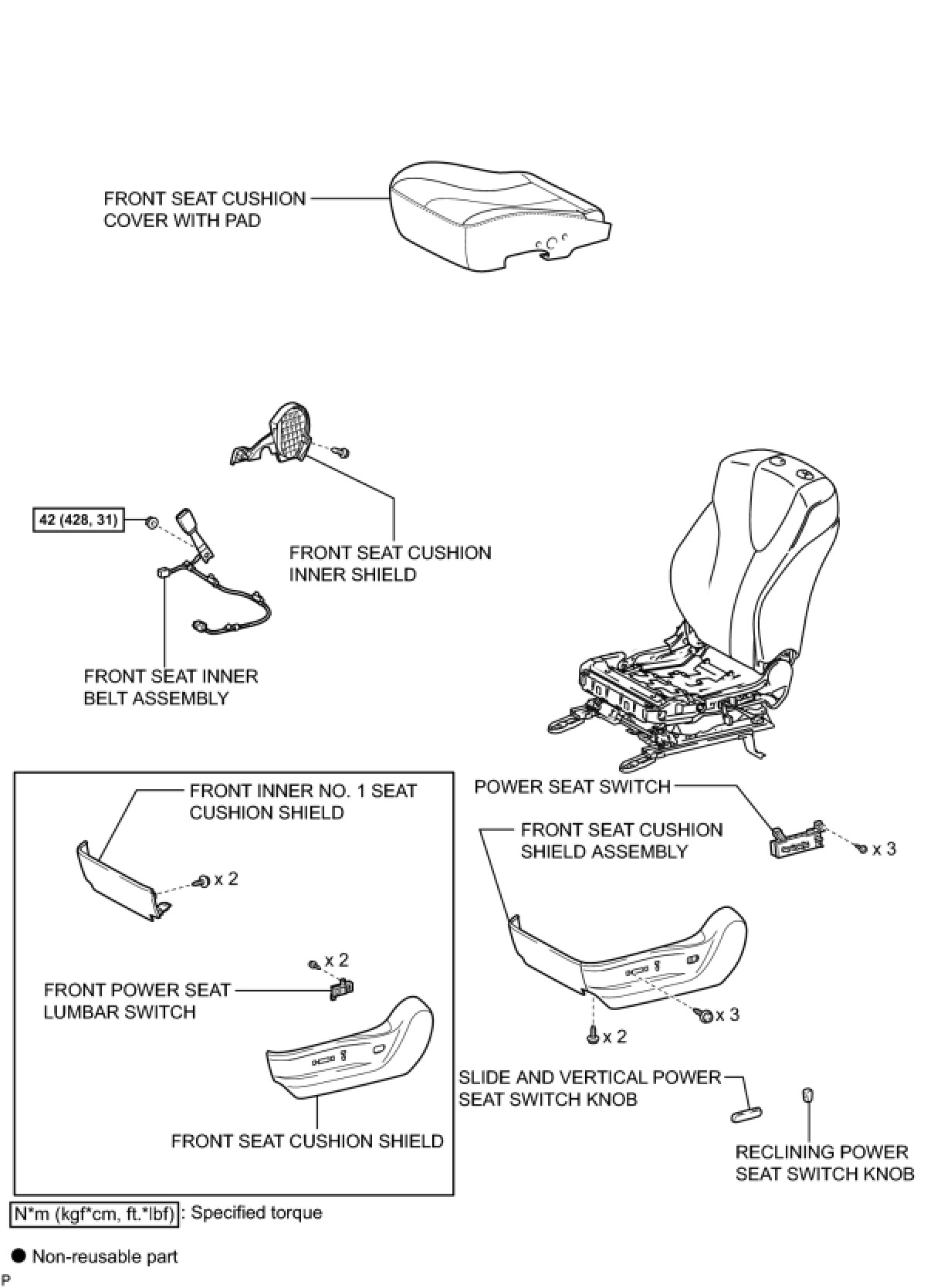

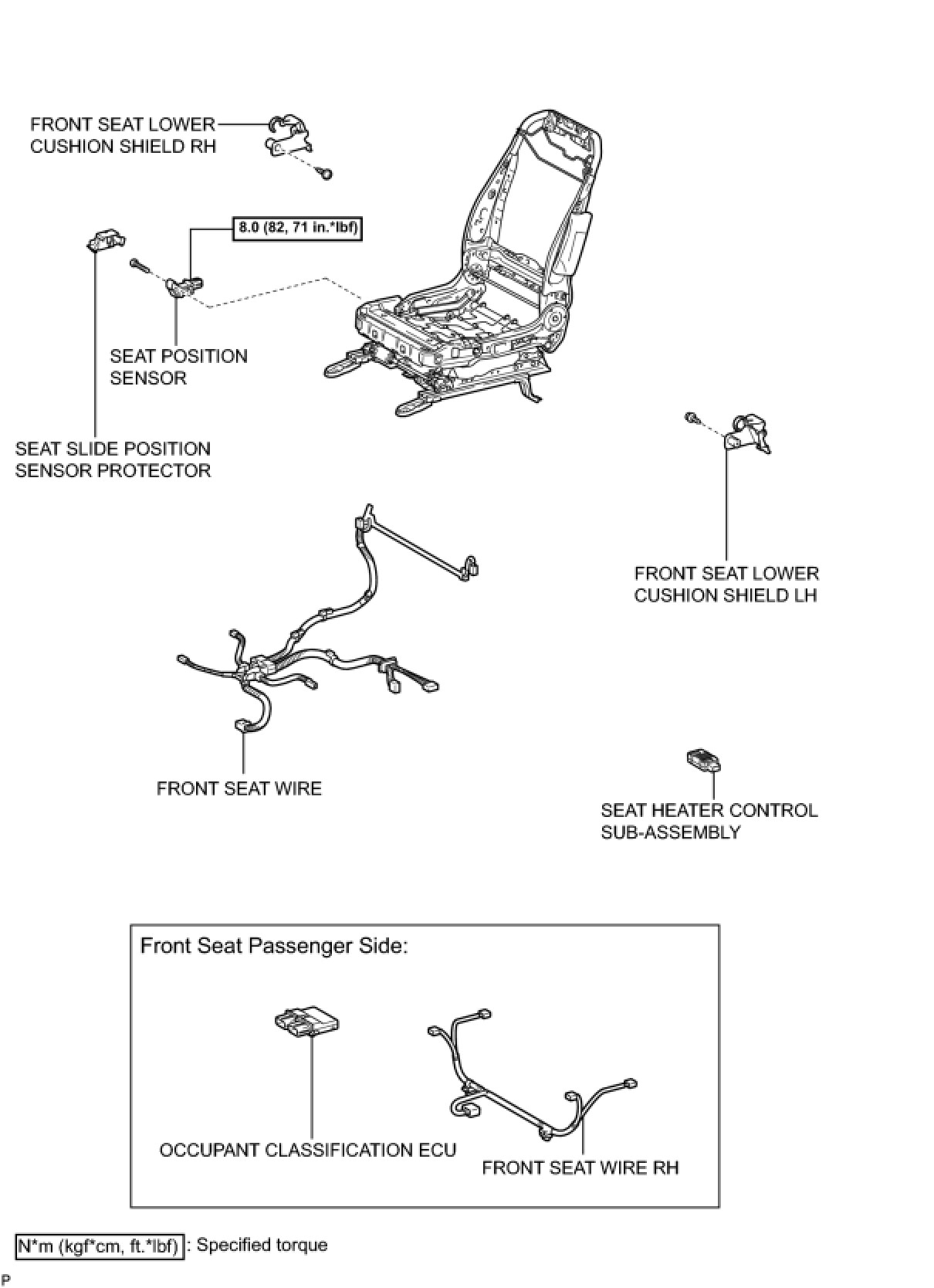

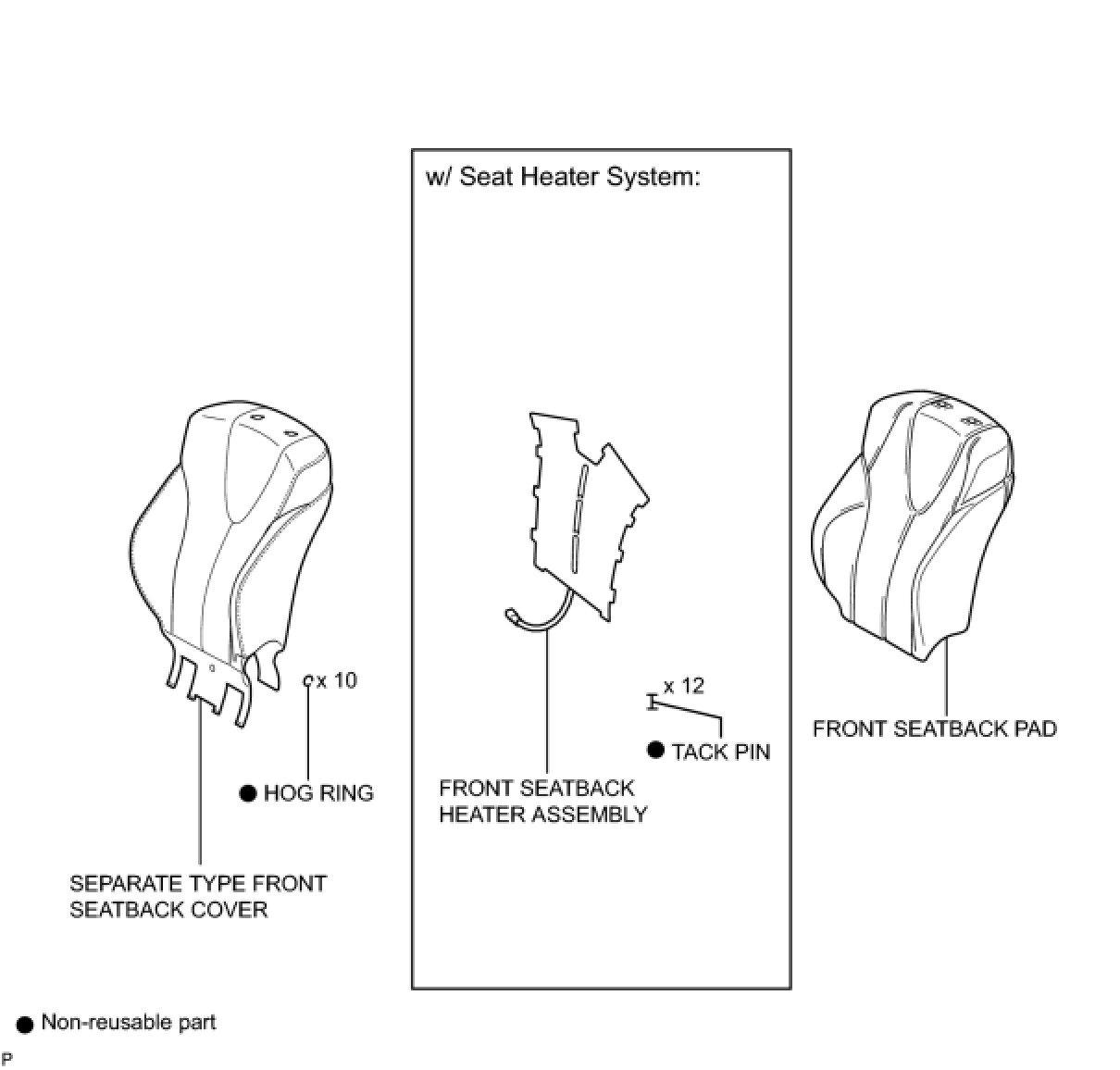

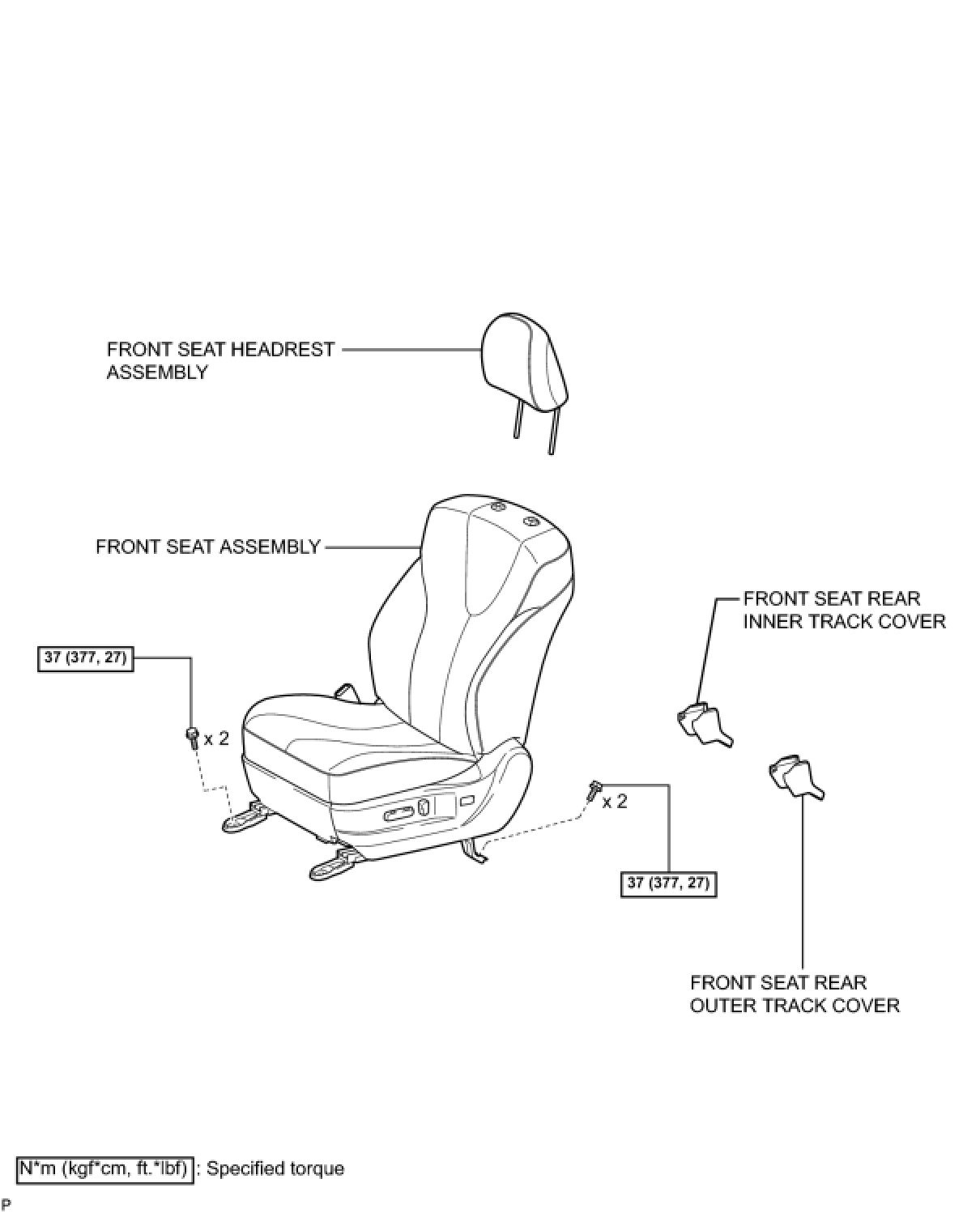

SEAT: FRONT SEAT ASSEMBLY (for Power Seat): COMPONENTS

COMPONENTS

ILLUSTRATION
