Components
Components
2GR-FE ENGINE CONTROL:
CAMSHAFT
OIL CONTROL VALVE: COMPONENTS

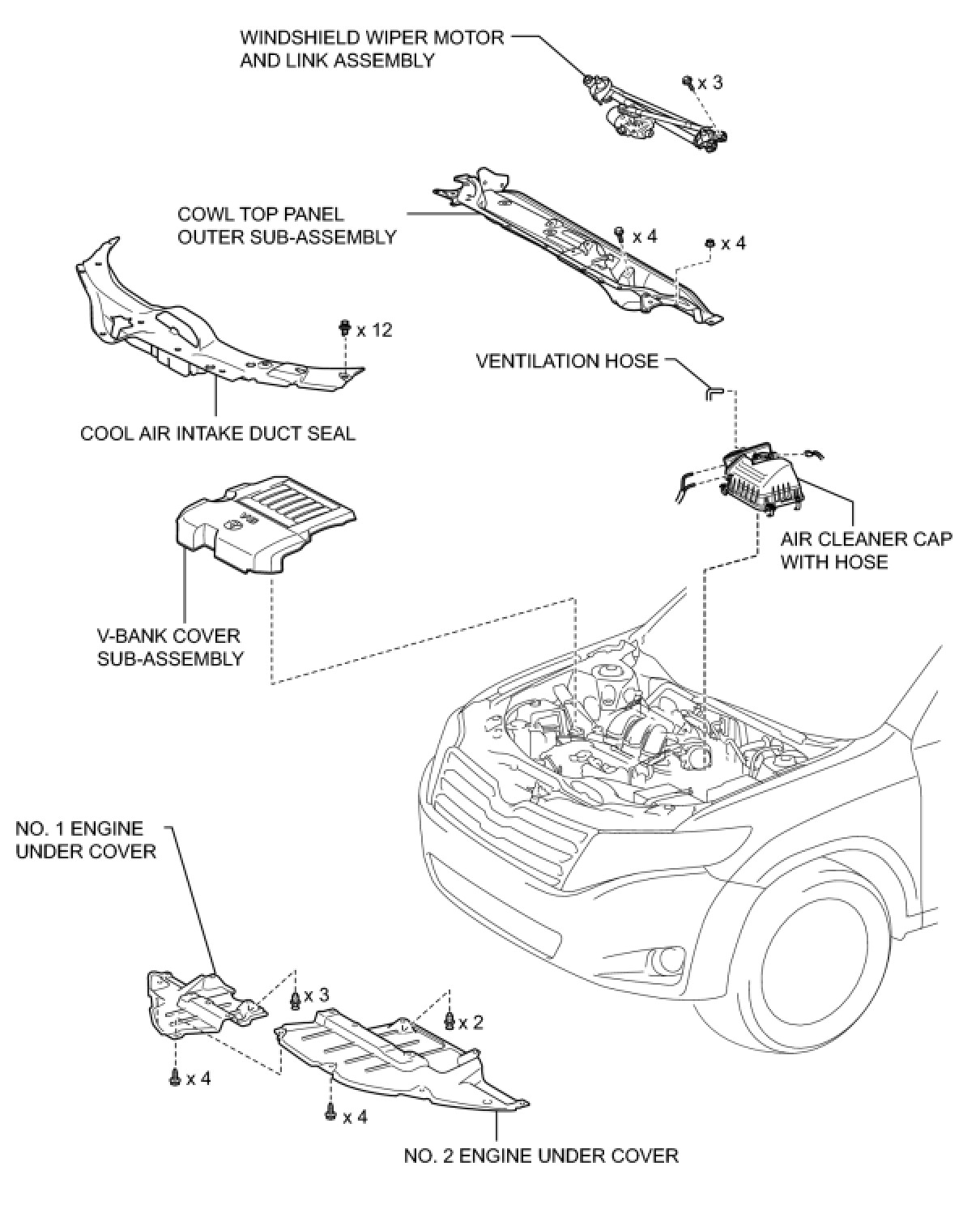

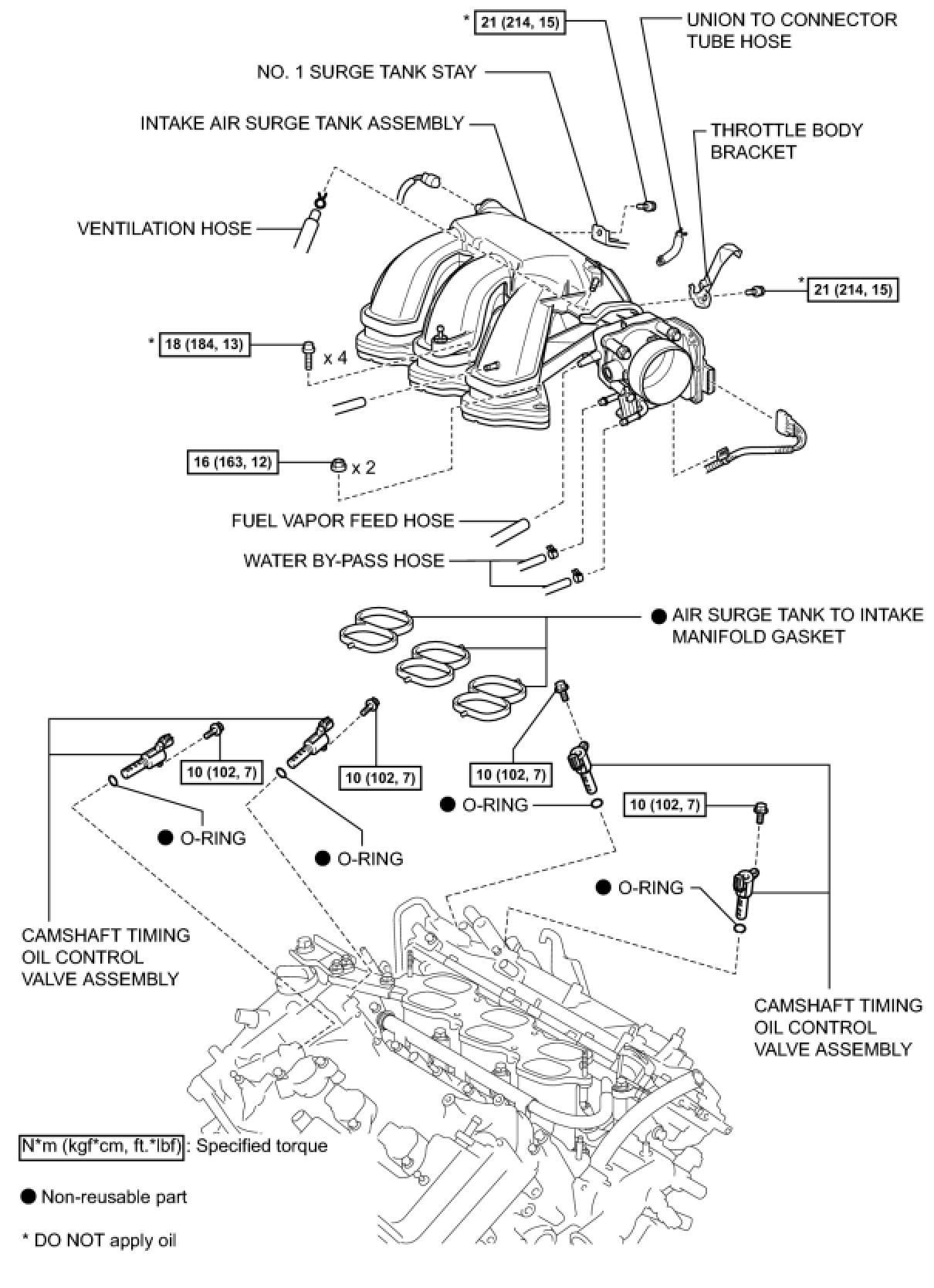

COMPONENTS
ILLUSTRATION
