2GR-FE ENGINE CONTROL: ACTIVE CONTROL ENGINE MOUNT: INSTALLATION

INSTALLATION

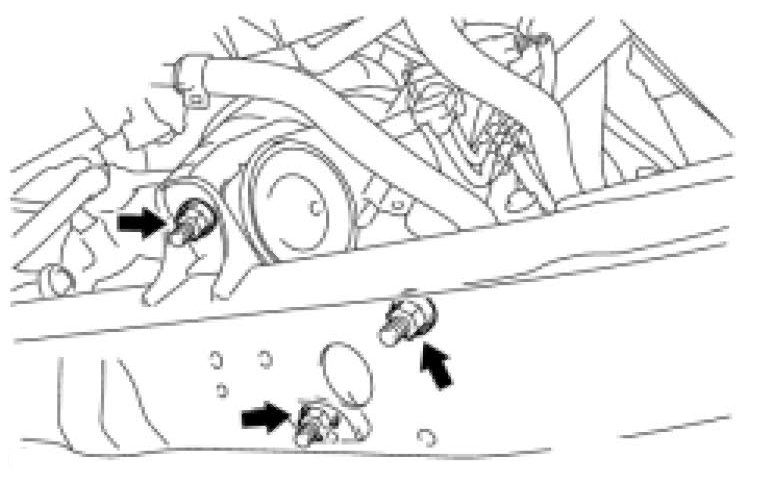

1. INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY





(a) Install the front engine mounting insulator assembly with the 3 nuts.
Torque: 52 Nm (530 kgf-cm, 38ft-lbf)

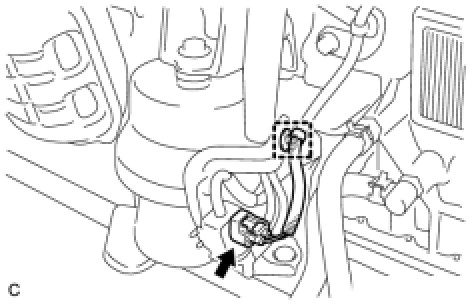

(b) Connect the duty vacuum switching valve connector and clamp.

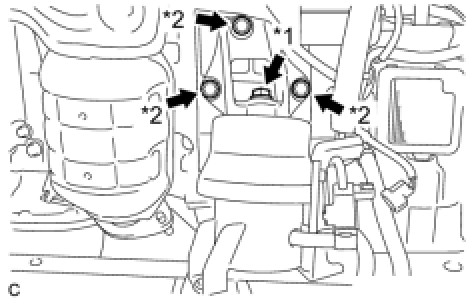

2. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET





(a) Install the transverse engine mounting bracket with the 4 bolts.

Text in Illustration





Torque: 87 Nm (887 kgf-cm, 64ft-lbf) for Bolt A
Torque: 64 Nm (653 kgf-cm, 47ft-lbf) for Bolt B
3. INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
(a) Install the radiator assembly and fan assembly with motor Installation.
