Home >> Toyota >> 2009 >> Venza AWD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair








HEATING / AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS

COMPONENTS

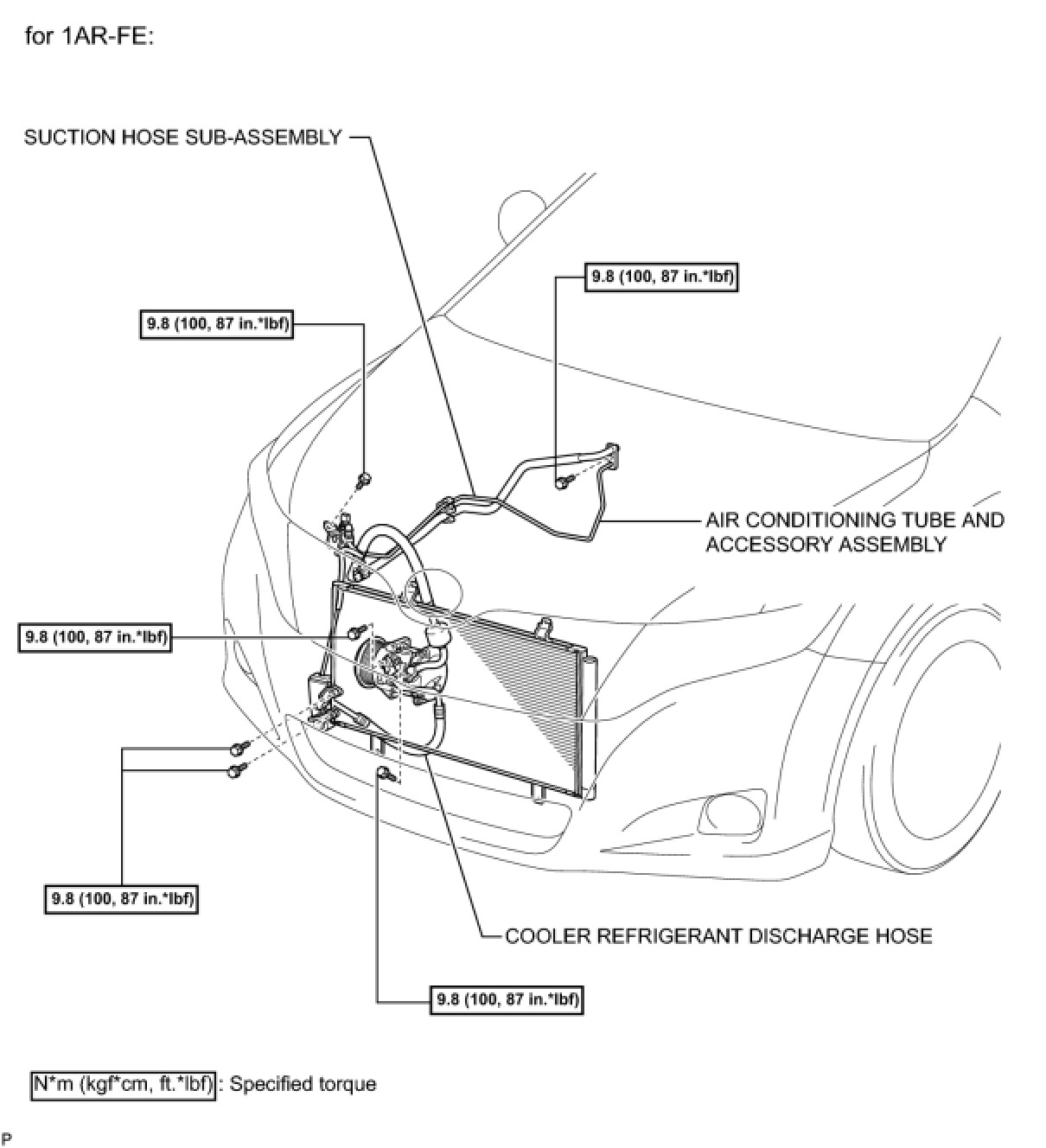

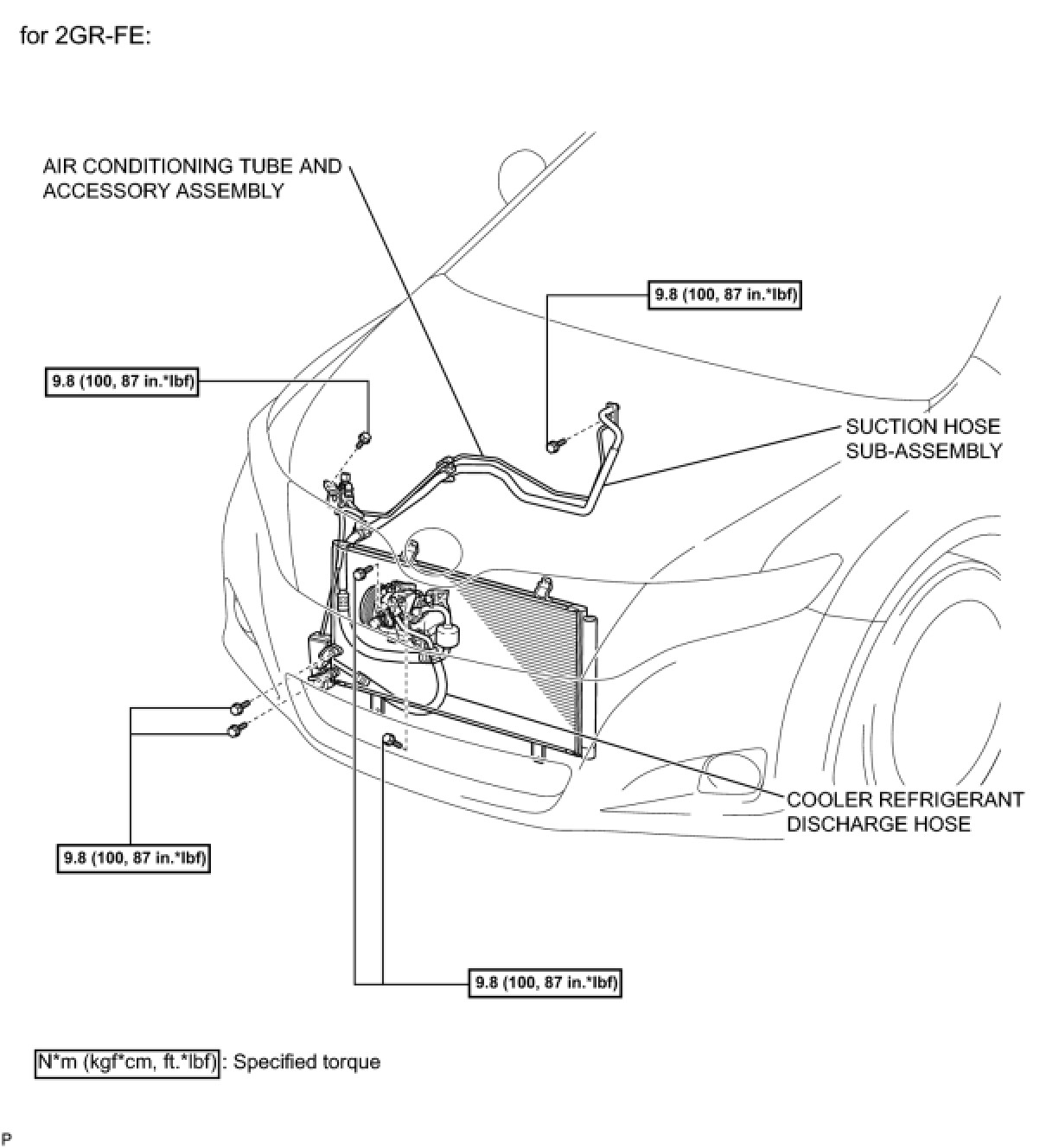

ILLUSTRATION
