Ignition System: Description and Operation

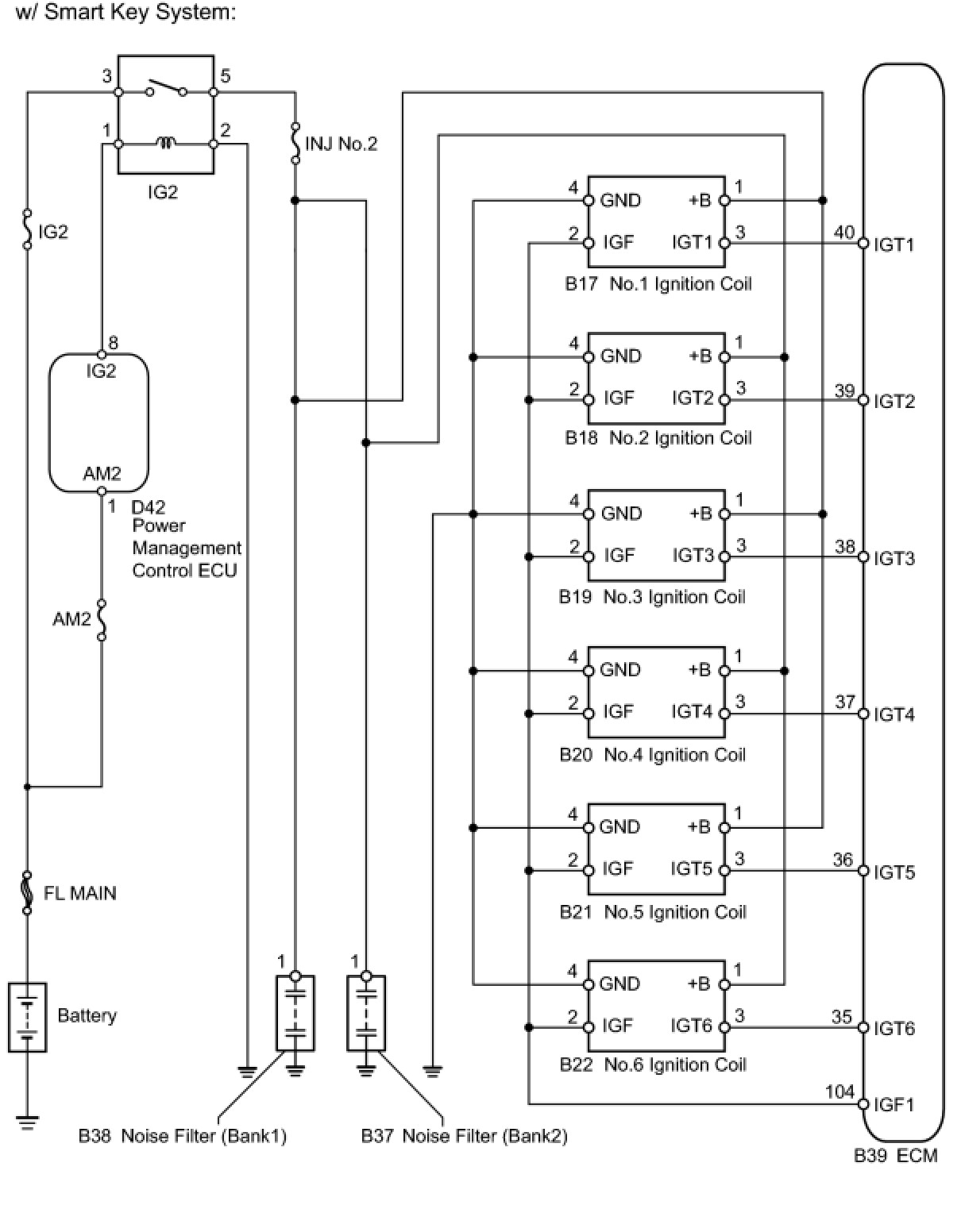

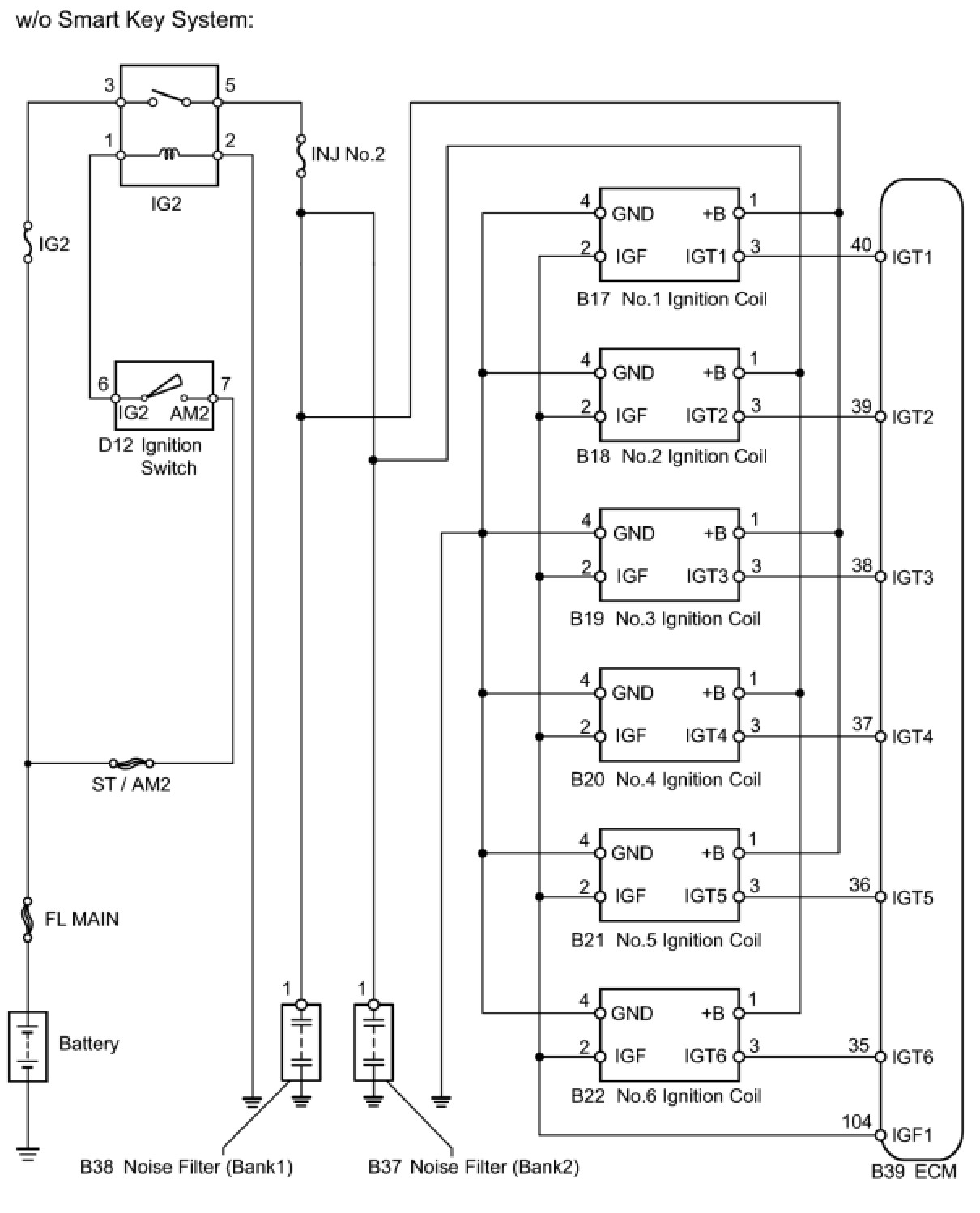

2GR-FE ENGINE CONTROL: IGNITION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
