Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Venza AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Components
Components

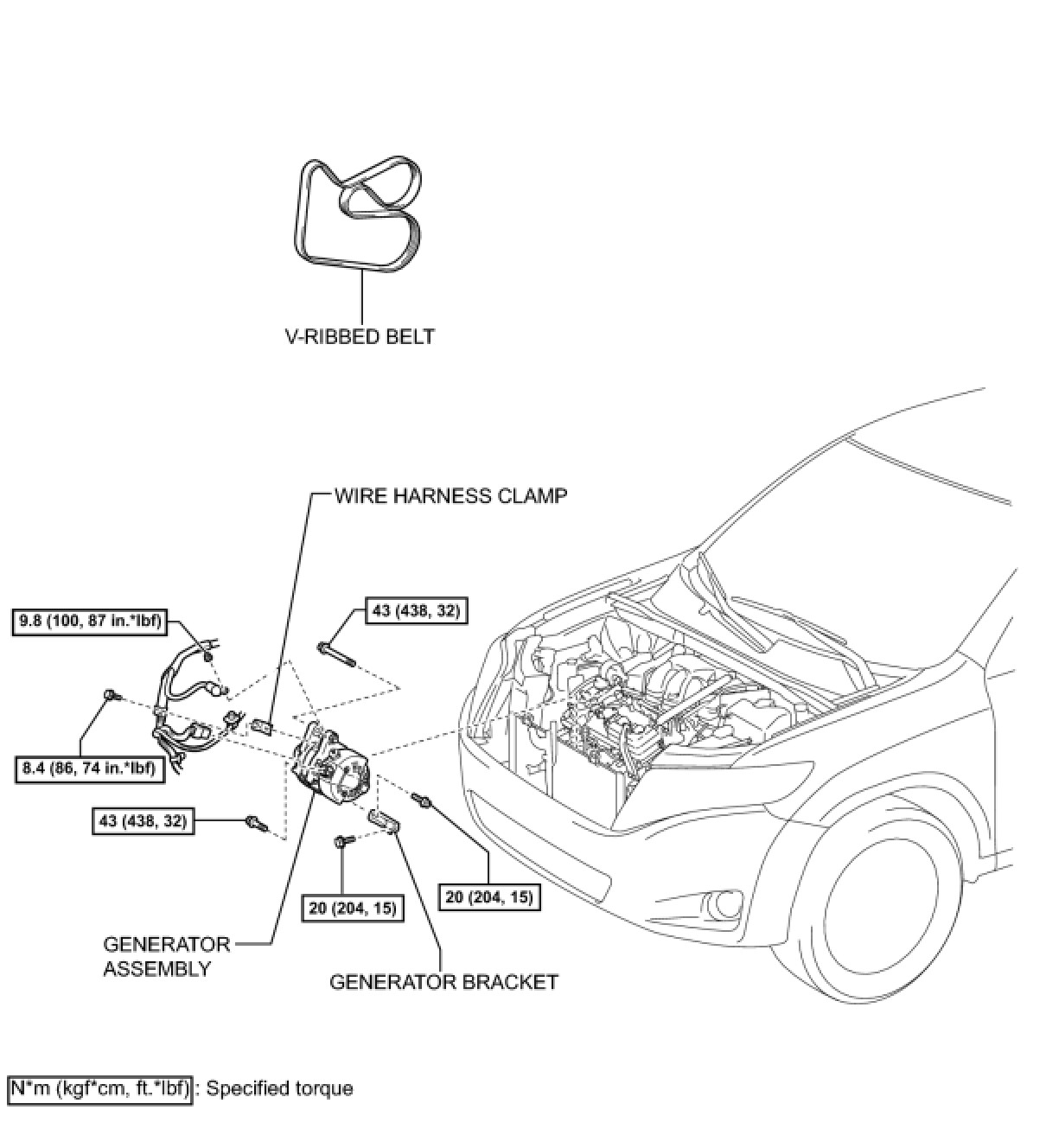

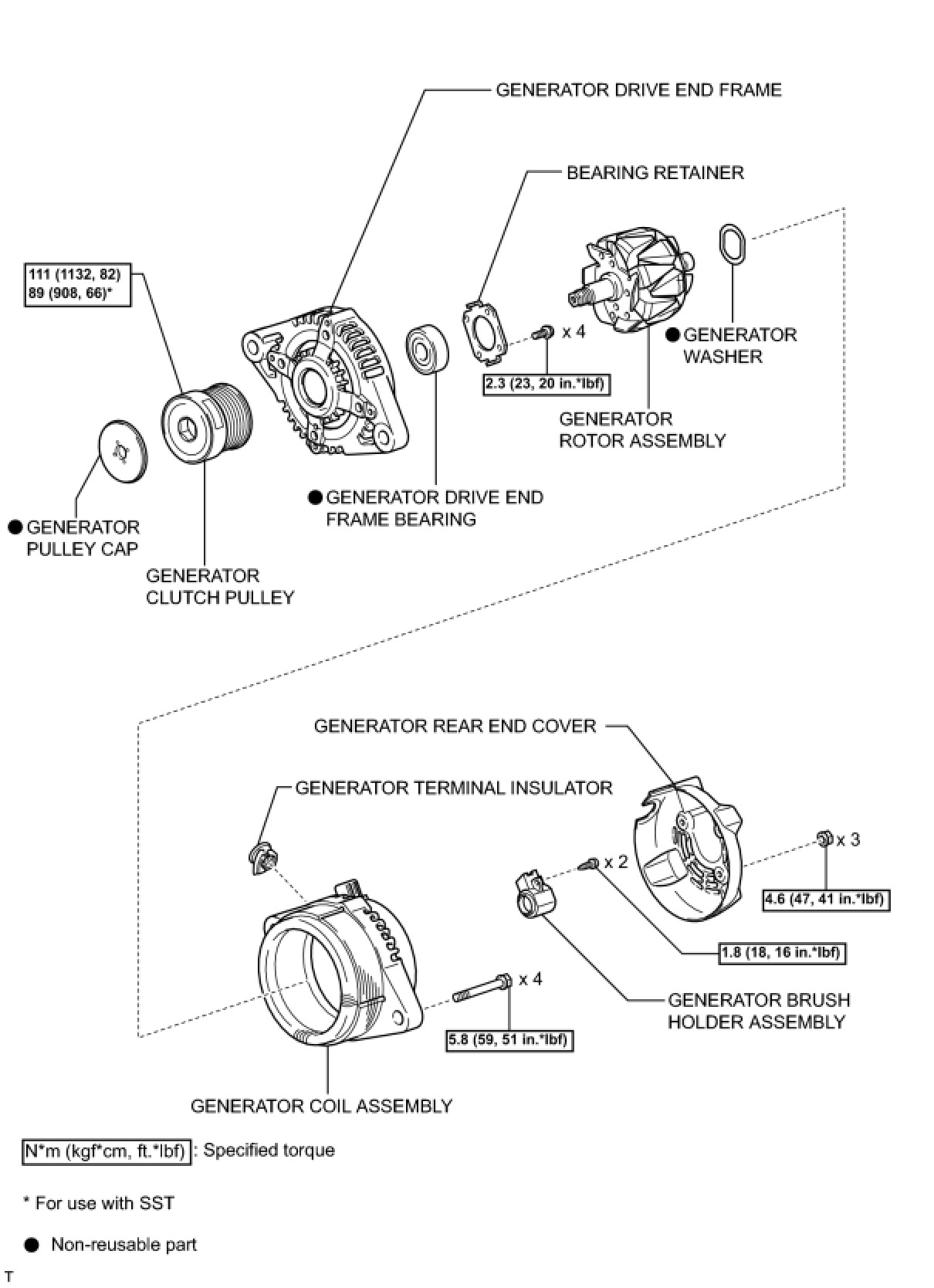

2GR-FE BATTERY / CHARGING: GENERATOR: COMPONENTS
COMPONENTS
ILLUSTRATION
