Installation

2GR-FE STARTING: IGNITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL IGNITION SWITCH

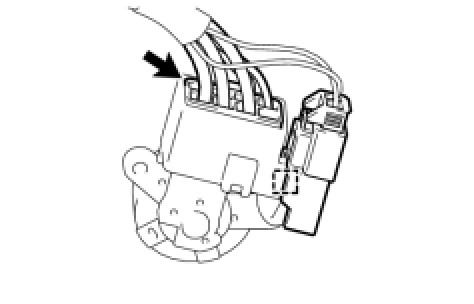

(a) Connect the connector.
(b) Install the connector clamp to the ignition switch.

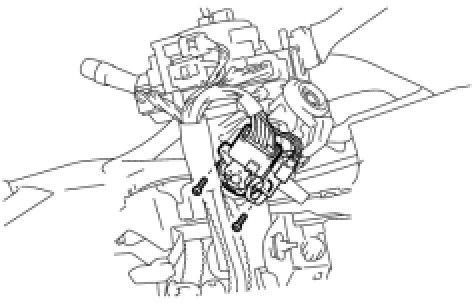

(c) Install the ignition switch with the 2 screws.
2. INSTALL UPPER STEERING COLUMN COVER Installation
3. INSTALL LOWER STEERING COLUMN COVER Installation
