U660F AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL (for RH Side): REPLACEMENT

REPLACEMENT

1. REMOVE TRANSFER ASSEMBLY
HINT: Removal

2. REMOVE FRONT TRANSAXLE CASE OIL SEAL





(a) for Outside:

Test in Illustration

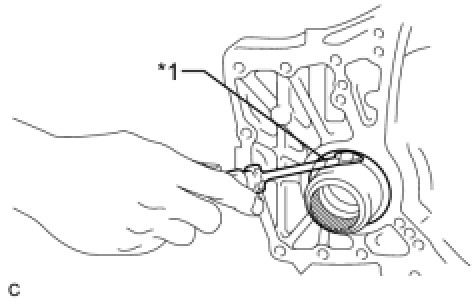

(1) Using a screwdriver with vinyl tape wound around tip, remove the front transaxle case oil seal.
NOTICE: Be careful not to damage the housing.





(b) for Inside:

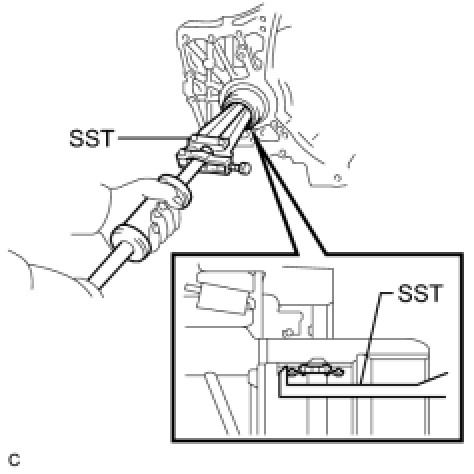

(1) Using SST, tap out the front transaxle case oil seal.
SST: 09308-00010
NOTICE: Be careful not to damage the housing.

3. INSTALL FRONT TRANSAXLE CASE OIL SEAL

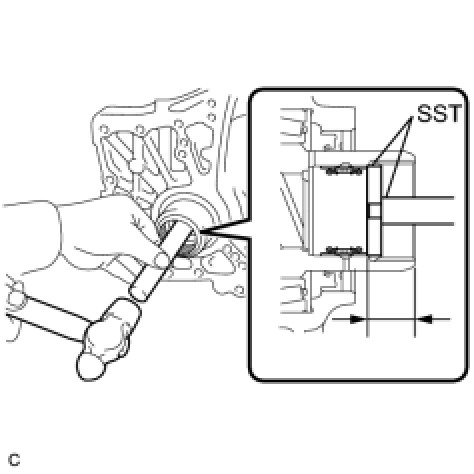

(a) for Inside:
(1) Coat the lip of a new front transaxle case oil seal with MP grease.
(2) Using SST and a hammer, tap in the front transaxle case oil seal.
SST: 09950-60010
09951-00410
SST: 09950-70010
09951-07200
Oil seal driven in depth:
21.5 to 22.5 mm (0.846 to 0.886 in.)

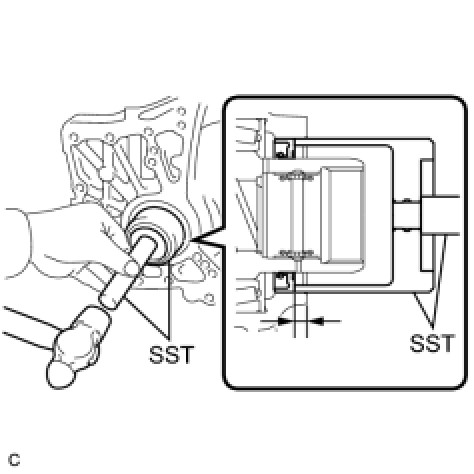

(b) for Outside:
(1) Coat the lip of a new front transaxle case oil seal with MP grease.
(2) Using SST and a hammer, tap in the front transaxle case oil seal.
SST: 09649-17010
SST: 09950-70010
09951-07200
Oil seal driven in depth:
5.5 to 6.5 mm (0.217 to 0.256 in.)
NOTICE: Check that the oil seal is installed in the correct direction.

4. INSTALL TRANSFER ASSEMBLY
HINT: Installation
