U660F AUTOMATIC TRANSMISSION / TRANSAXLE: TRANSMISSION CONTROL CABLE: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT Removal
2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE INLET NO. 2 AIR CLEANER Removal
4. REMOVE AIR CLEANER CAP WITH HOSE Removal
5. REMOVE AIR CLEANER CASE Removal
6. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY Removal
7. REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY Removal
8. SEPARATE MANIFOLD STAY Removal
9. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal
10. REMOVE EXHAUST MANIFOLD TO HEAD GASKET Removal
11. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

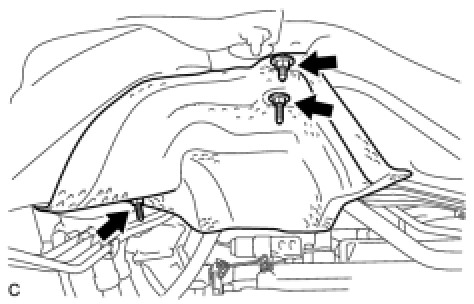

(a) Remove the 3 nuts and No. 1 floor heat insulator.
12. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

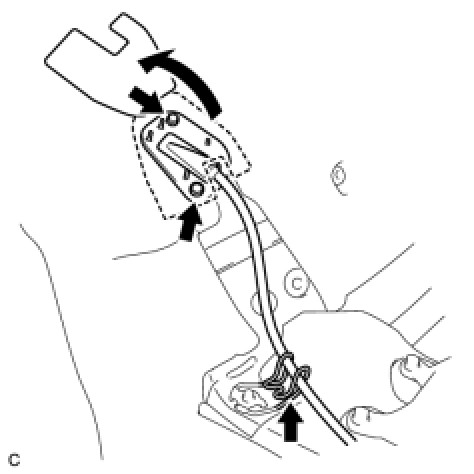

(a) Remove the clip and disconnect the transmission control cable assembly from the No. 1 control cable bracket.

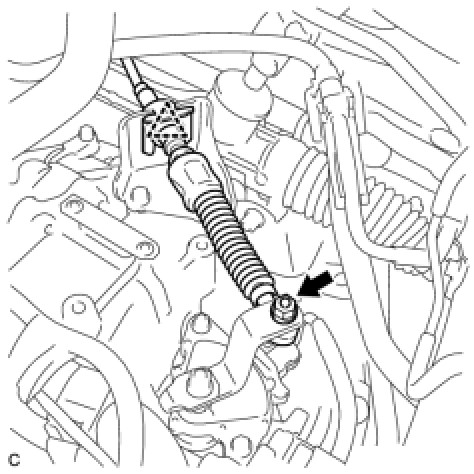

(b) Remove the nut and transmission control cable assembly from the control shaft lever.





(c) Disconnect the transmission control cable assembly from the No. 2 transmission control cable bracket.
(d) Turn back the carpet.
(e) Remove the 2 bolts and pull out the transmission control cable assembly from the body.
