U660F Automatic Transaxle

U660F AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

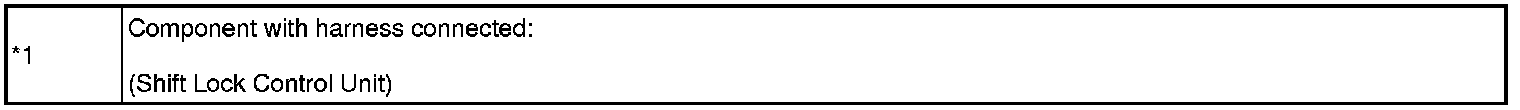

1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/o Smart Key System)

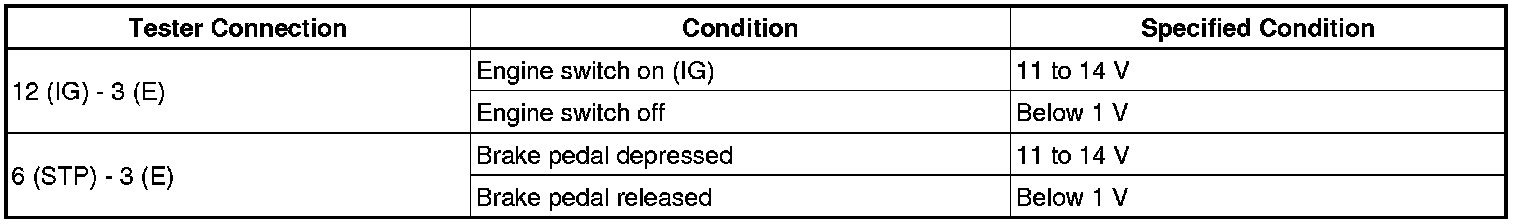

(a) Measure the voltage according to the value(s) in the table below.

Test in Illustration





Standard Voltage:





HINT: Do not disconnect the shift lock control unit assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Test in Illustration





Standard Resistance:





HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lever assembly.
2. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/ Smart Key System)

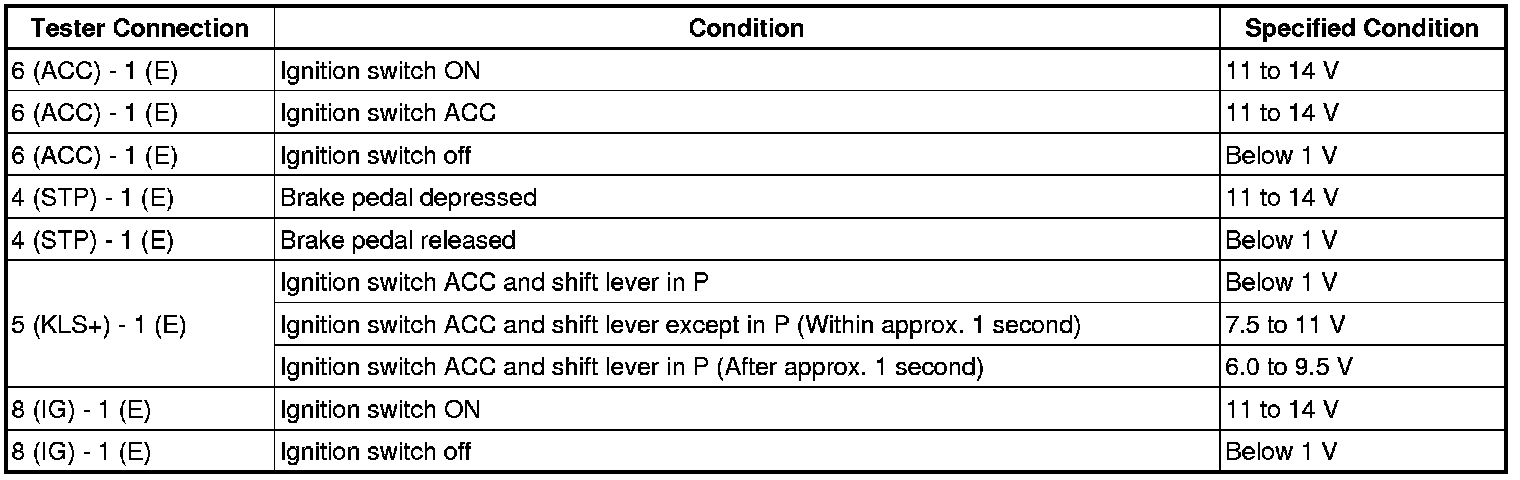

(a) Measure the voltage according to the value(s) in the table below.

Test in Illustration





Standard Voltage:





HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lock control unit assembly.





(b) Measure the resistance according to the value(s) in the table below.

Test in Illustration





Standard Resistance:





HINT: Do not disconnect the shift lock control unit assembly connector.
If the result is not as specified, replace the shift lock control unit assembly.

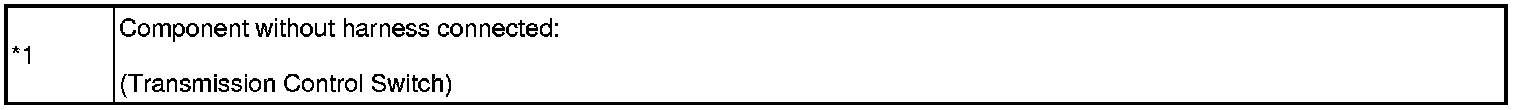

3. INSPECT TRANSMISSION CONTROL SWITCH

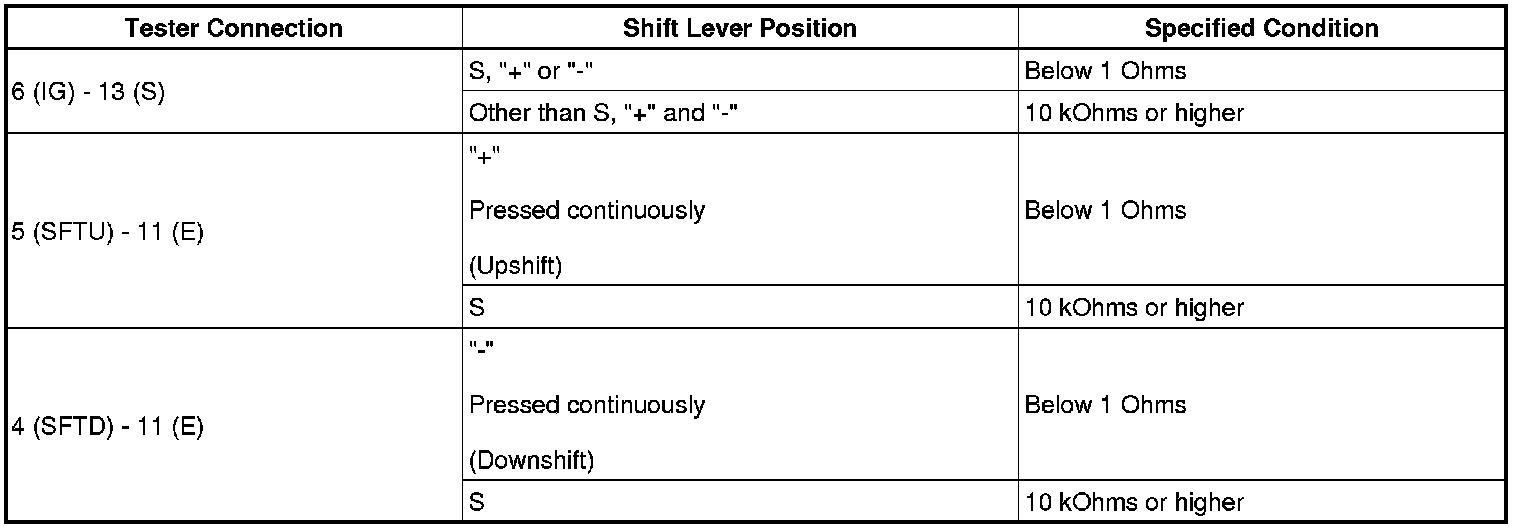

(a) Measure the resistance between each terminal of the shift lock control unit assembly when the shift lever is moved to each position.

Test in Illustration





Standard Resistance:





If the result is not as specified, replace the shift lock control unit assembly.

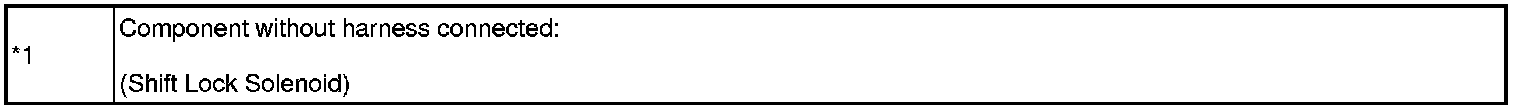

4. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the shift lock solenoid connector.

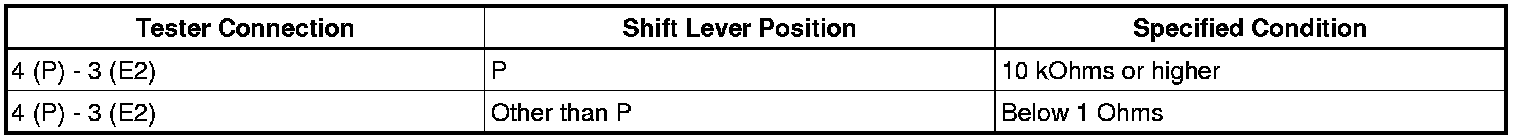

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Test in Illustration





Standard Resistance:





If the result is not as specified, replace the shift lock control unit assembly.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

Test in Illustration





If the result is not as specified, replace the shift lock control unit assembly.
