DRIVE SHAFT / PROPELLER SHAFT: FRONT DRIVE SHAFT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING (for LH Side)





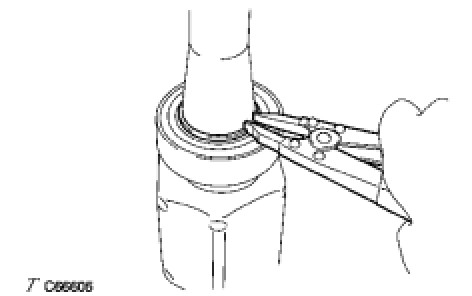

(a) Using a screwdriver, remove the front drive shaft hole snap ring.
2. REMOVE NO. 2 FRONT AXLE INBOARD JOINT BOOT CLAMP (for 1AR-FE)

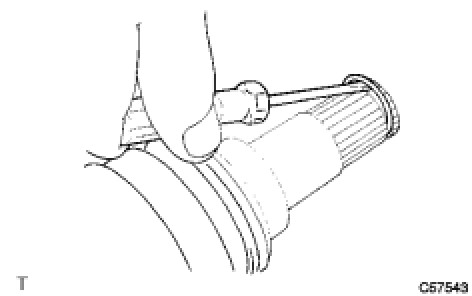

(a) Using needle-nose pliers, disengage the 2 claws to remove the No. 2 front axle inboard joint boot clamp as shown in the illustration.
3. REMOVE NO. 2 FRONT AXLE INBOARD JOINT BOOT CLAMP (for 2GR-FE)

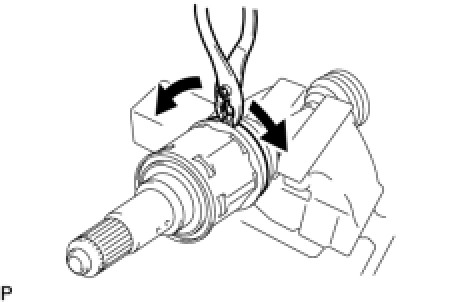

(a) Using pliers, remove the No. 2 front axle inboard joint boot clamp as shown in the illustration.
4. REMOVE FRONT AXLE INBOARD JOINT BOOT CLAMP
(a) Remove the front axle inboard joint boot clamp.
HINT: Perform the same procedure as for the No. 2 front axle inboard joint boot clamp (for 2GR-FE).

5. SEPARATE FRONT AXLE INBOARD JOINT BOOT
(a) Separate the front axle inboard joint boot from the inboard joint assembly.
6. REMOVE FRONT DRIVE INBOARD JOINT ASSEMBLY
(a) Remove the grease from the inboard joint assembly.





(b) Put matchmarks on the front drive inboard joint assembly and front drive outboard joint shaft assembly.

Text in Illustration





NOTICE: Do not use a punch for the marks.

(c) Remove the front drive inboard joint assembly from the front drive outboard joint shaft assembly.





(d) Using a snap ring expander, remove the shaft snap ring.

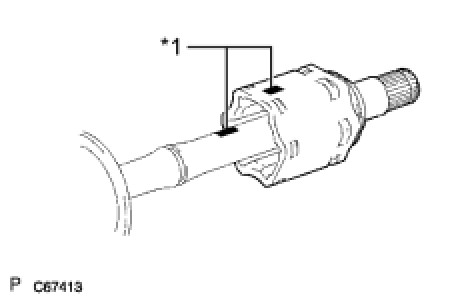

(e) Put matchmarks on the outboard joint shaft and tripod joint.

Text in Illustration





NOTICE: Do not use a punch for the marks.

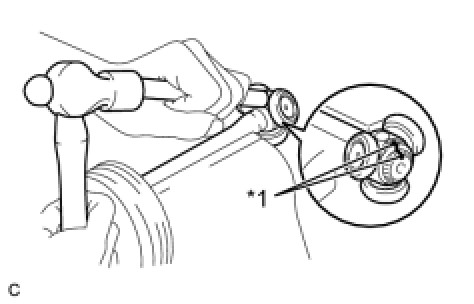

(f) Using a brass bar and a hammer, remove the tripod joint from the front drive outboard joint shaft assembly.
NOTICE: Do not tap the roller.

7. REMOVE FRONT AXLE INBOARD JOINT BOOT
(a) Remove the front axle inboard joint boot from the front drive outboard joint shaft assembly.
8. REMOVE FRONT DRIVE SHAFT DAMPER





(a) Using pliers, remove the front drive shaft damper clamp as shown in the illustration.
(b) Remove the front drive shaft damper.
9. REMOVE NO. 2 FRONT AXLE OUTBOARD JOINT BOOT CLAMP

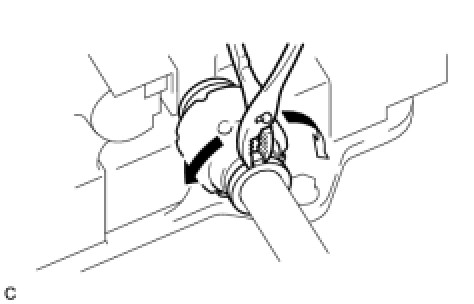

(a) Using pliers, remove the No. 2 front axle outboard joint boot clamp as shown in the illustration.
10. REMOVE FRONT AXLE OUTBOARD JOINT BOOT CLAMP
(a) Remove the front axle outboard joint boot clamp.
HINT: Perform the same procedure as for the No. 2 front axle outboard joint boot clamp.

11. REMOVE FRONT AXLE OUTBOARD JOINT BOOT
(a) Remove the front axle outboard joint boot from the front drive outboard joint shaft assembly.
(b) Remove the grease from the front drive outboard joint.
12. REMOVE FRONT DRIVE SHAFT DUST COVER LH (for LH Side)

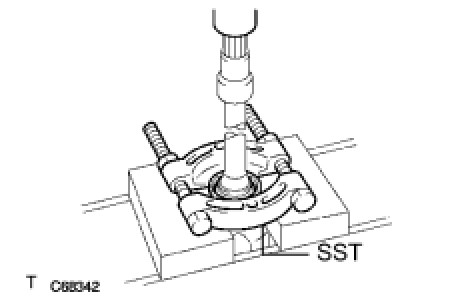

(a) Using SST and a press, remove the front drive shaft dust cover LH.
SST: 09950-00020
NOTICE: Be careful not to drop the inboard joint assembly.

13. REMOVE FRONT DRIVE SHAFT DUST COVER RH (for 2WD RH Side)

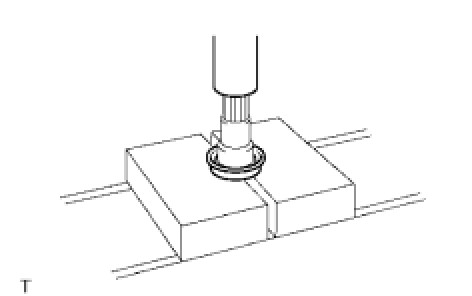

(a) Using a press, remove the front drive shaft dust cover RH.
NOTICE: Be careful not to drop the inboard joint assembly.

14. REMOVE FRONT DRIVE SHAFT DUST COVER (for 2WD RH Side)

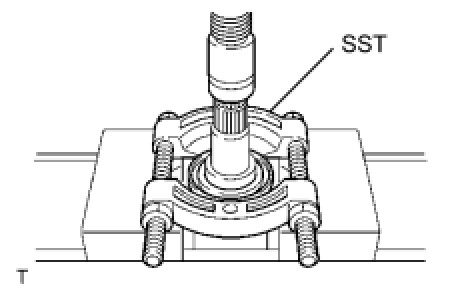

(a) Using SST and a press, remove the front drive shaft dust cover.
SST: 09950-00020
NOTICE: Be careful not to drop the inboard joint assembly.

15. REMOVE FRONT DRIVE SHAFT BEARING (for RH Side)





(a) Using a snap ring expander, remove the drive shaft hole snap ring.

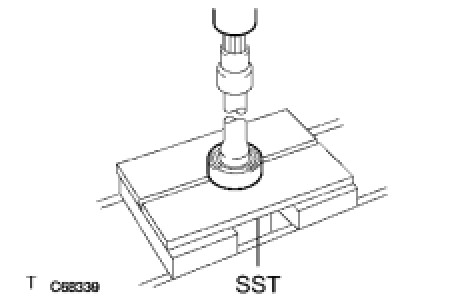

(b) Using SST and a press, remove the front drive shaft bearing.
SST: 09527-10011
NOTICE: Be careful not to drop the inboard joint assembly.

16. REMOVE BEARING BRACKET HOLE SNAP RING (for RH Side)
(a) Remove the bearing bracket hole snap ring.
