Home
>>
Toyota
>>
2009
>>
Venza AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
>>
Service and Repair
>>
Removal and Replacement
>>
Rear Drive Shaft Assembly
>>

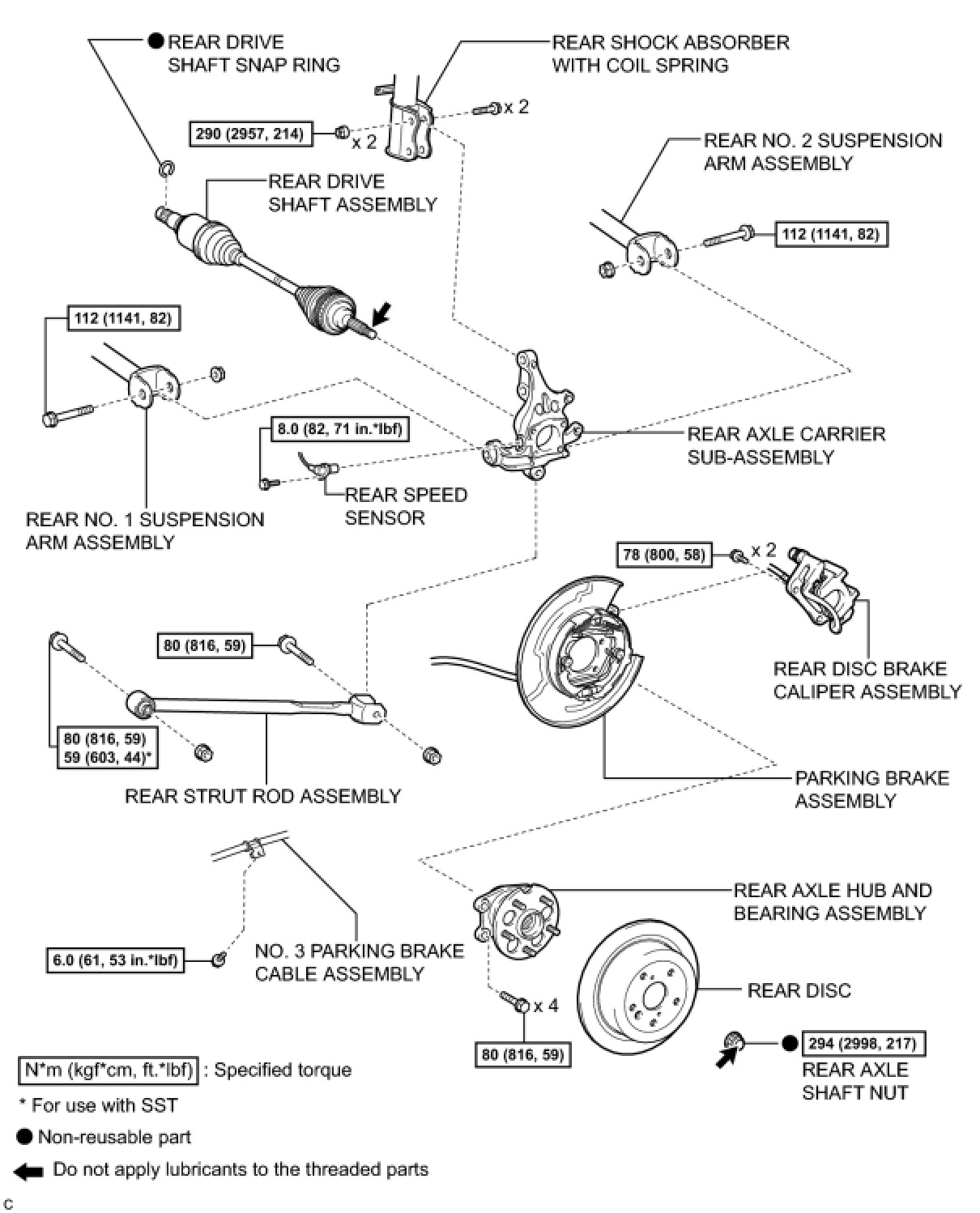

Components
Components

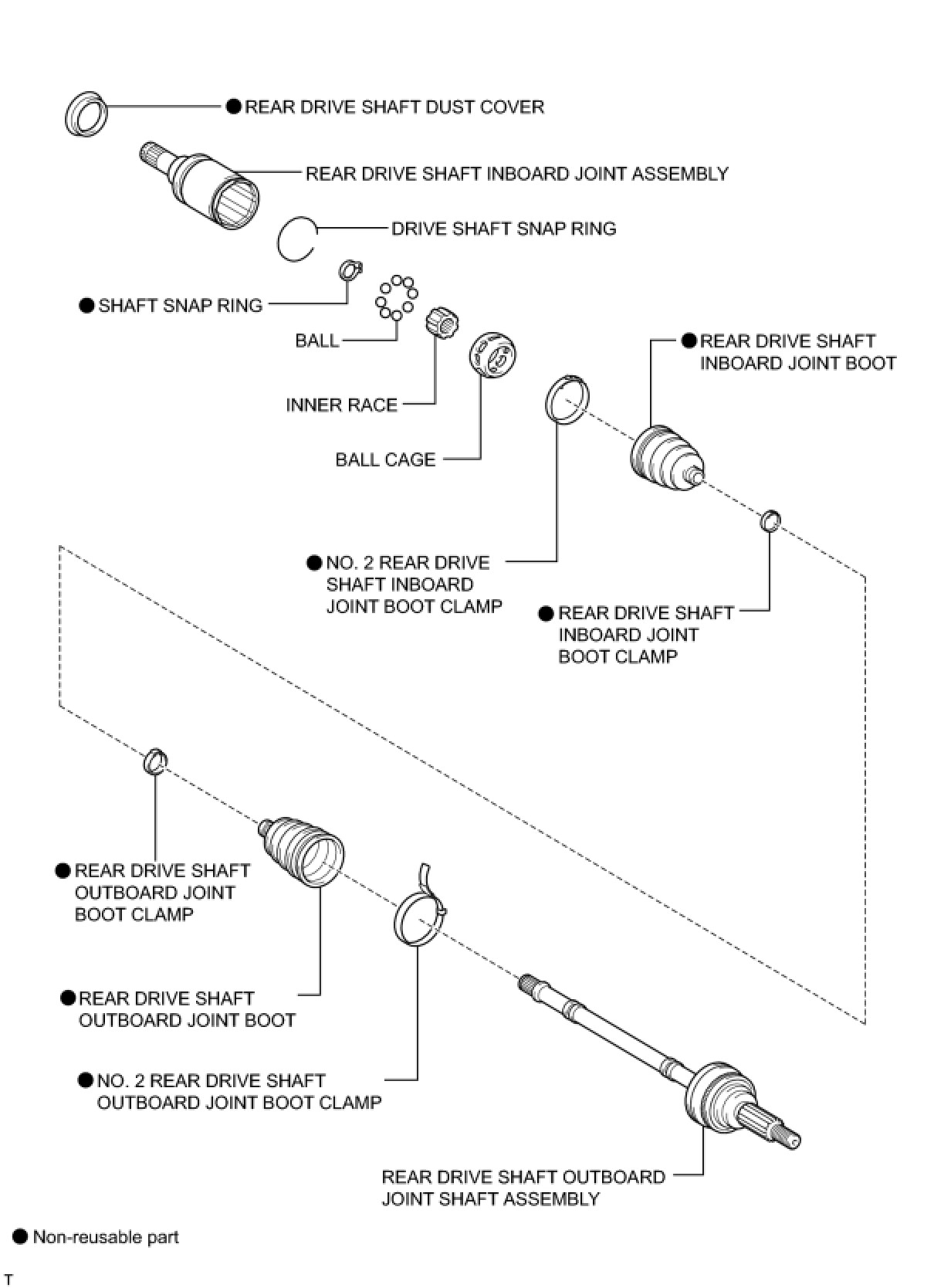

DRIVE SHAFT / PROPELLER SHAFT: REAR DRIVE SHAFT ASSEMBLY (for AWD): COMPONENTS
COMPONENTS
ILLUSTRATION
