Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Venza AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

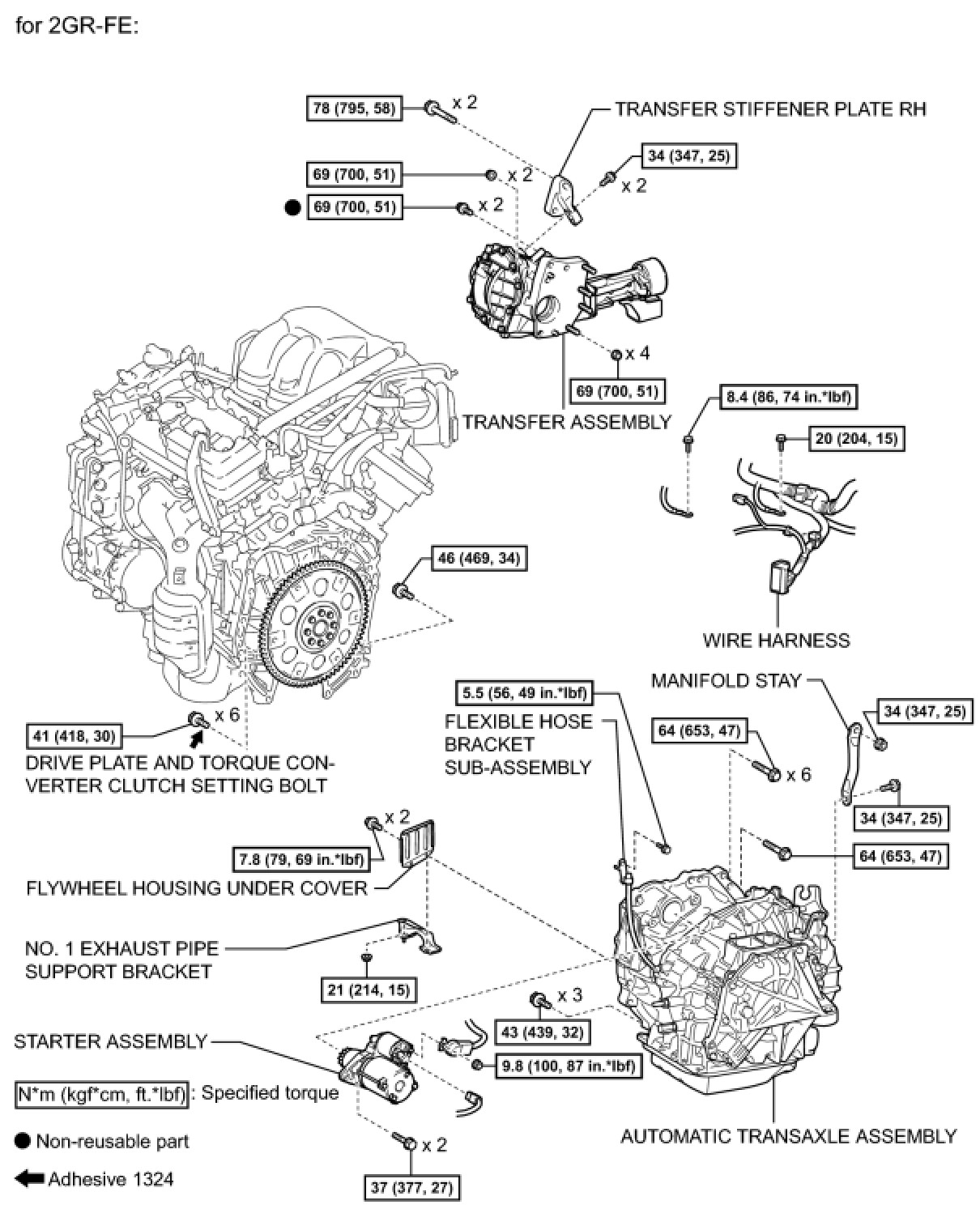

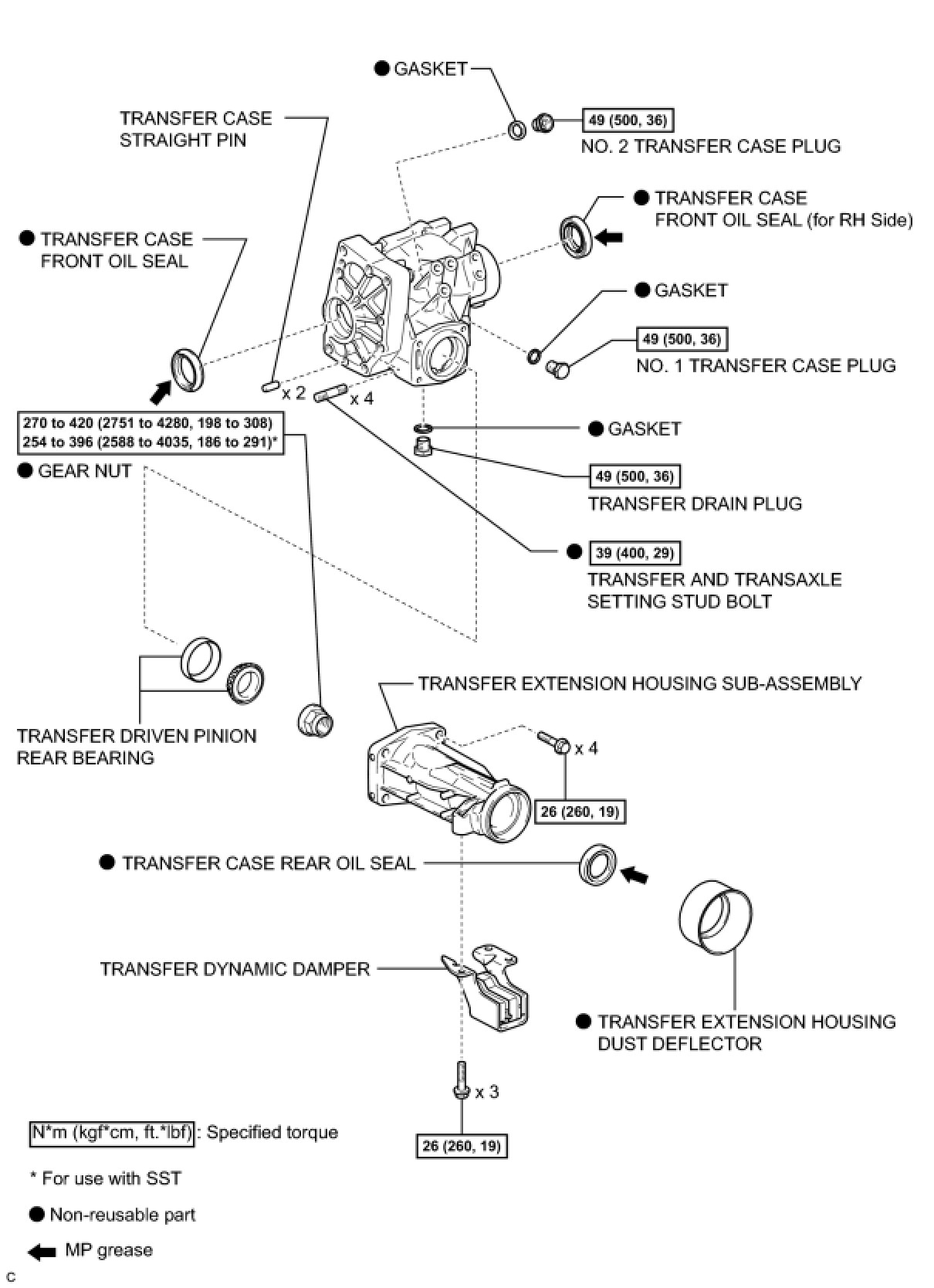

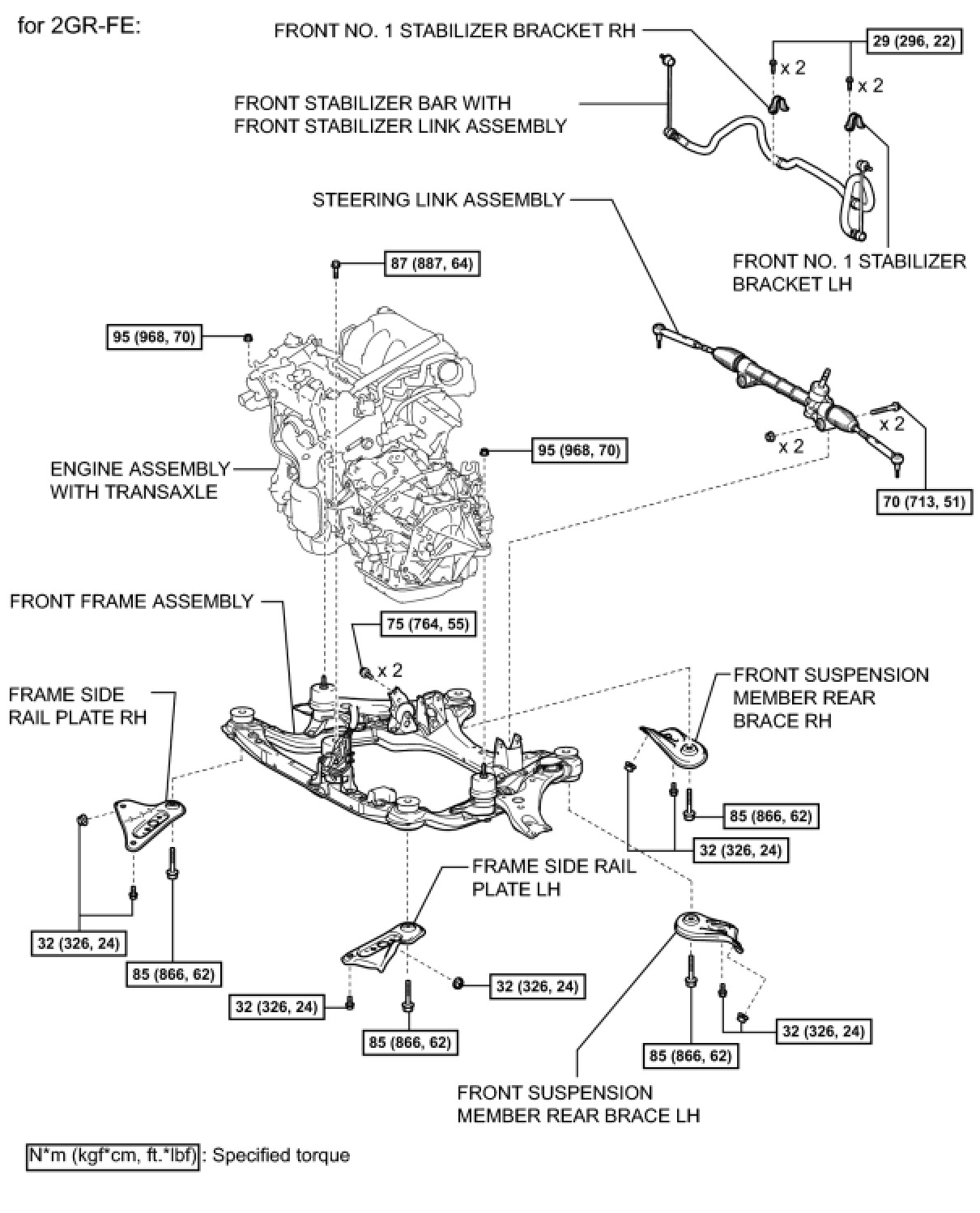

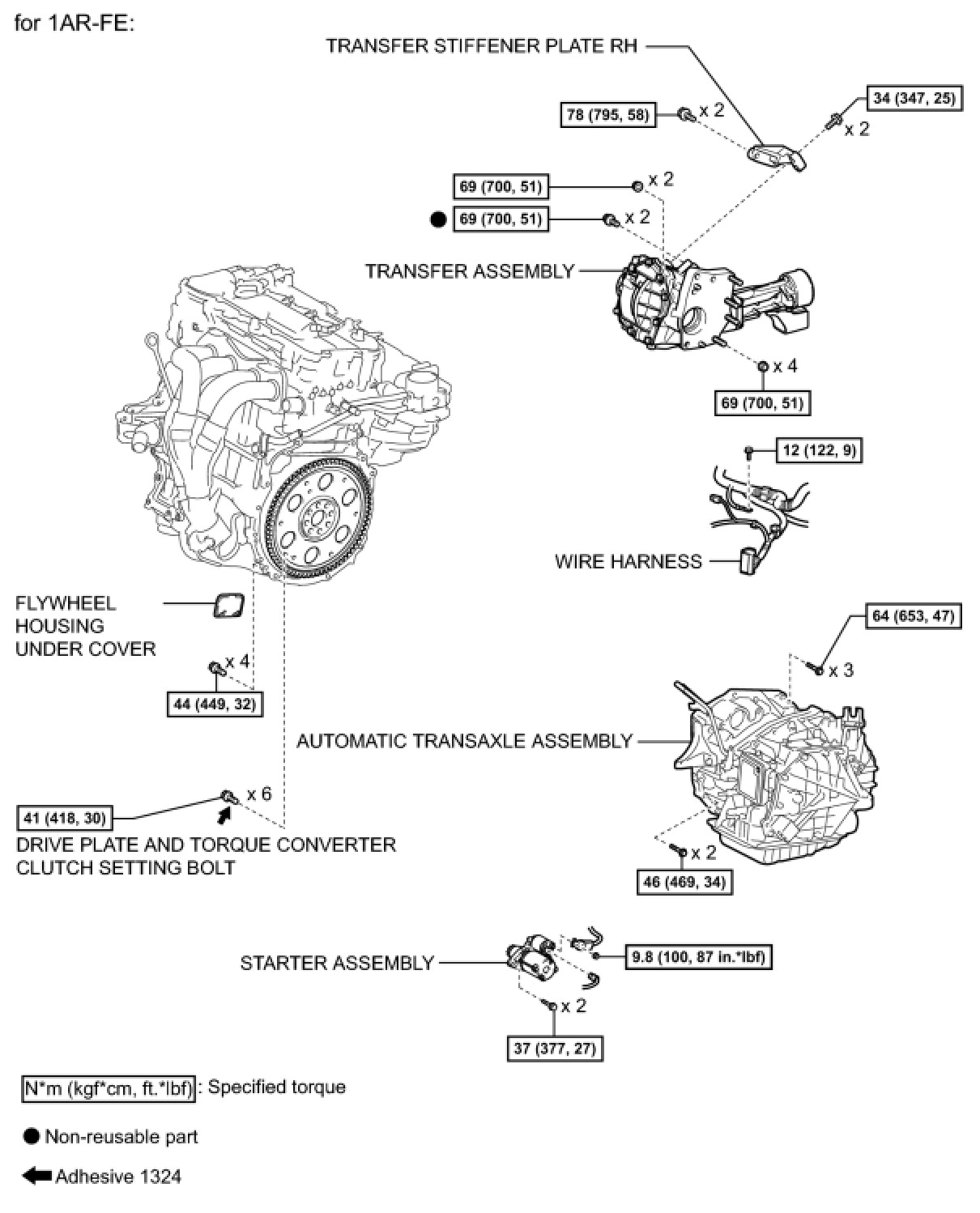

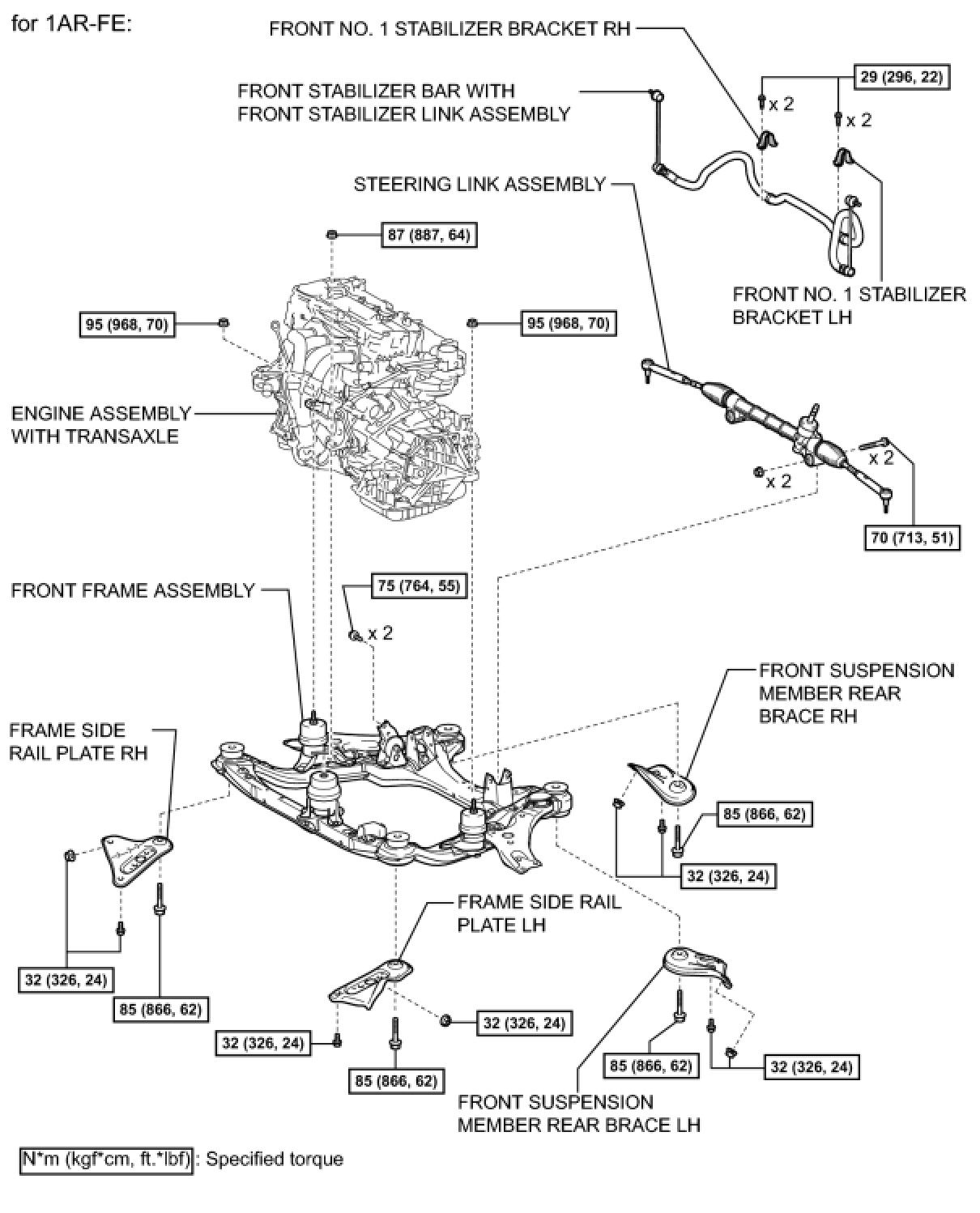

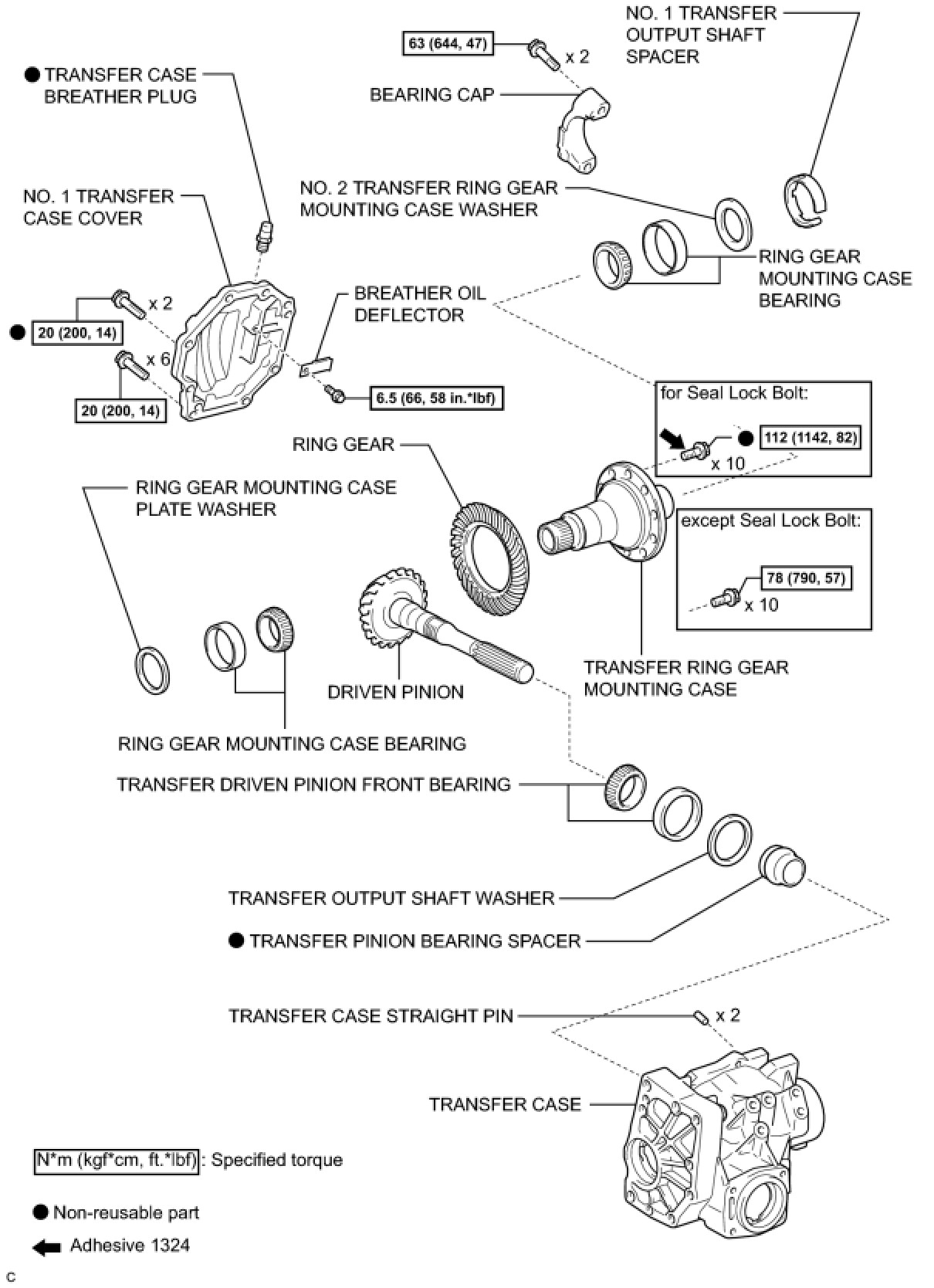

MF1A TRANSFER / 4WD / AWD: TRANSFER ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
